_Bar Code Reader - Hand Held

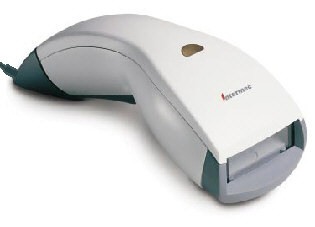

Intermec SP1800 Series


The ScanPlus 1800 range of bar code readers are high performance, compact, hand held bar code scanners for: Retail; Office; Health; Care and Light Industrial applications. The 1800 range uses the latest patented technology and integrated design for fast and accurate contact and non contact scanning.The ScanPlus 1800 incorporates innovative solutions for different depths of field, easy connectivity, changing setup requirements and both linear and stacked bar codes. This is made possible through the choice of two CCD scan engines and one laser engine, as well as a universal interface system and an easy to use software setup program.

Features

  • Universal interface allows easy cable connectivity.
  • Easy to pickup and use.
  • Choice of CCD or Laser technologies.
  • Fast reading and decoding, even of damaged barcodes.
  • Fastest ever setup using Easyset software.
  • Optional PDF417 2D barcode reading
  • 3 year laser Warranty
  • 5 year CCD and Vista Warranty

Specifications

Mechanical
Dimensions 18.0cm L x 6.4cm W
Weight(Without cable) 140g(VT) 145g(SR/PDF) 165g(ST)
Standard Cable 180cm
Environmental
Operating Temp. 0 to 40C(SR/PDF/ST) 0 to 50C(VT)
Storage Temp. -25 to 60C(SR/PDF/ST) -25 to 70C(VT)
Relative Humidity 5% to 95%(non-condensing) 10% to 90%(VT)
Vibration Operates in all normal and retail and office environments
Shock Multiple 1m (3ft) drops onto a hard surface
Electrical
Voltage 5.0 VDC +/- 10%
Operating Current 150mA
Idling Current 40mA
Optical
Scan Rate(per second) 400(SR)
600 (PDF)
36(ST)
225(VT)
Optics CCD (SR/PDF/VT)
Visible Laser Diode (ST)
Pitch ST: 65 VT: 35 PDF: 70
Skew ST: 55 VT: 35 PDF: 65
Print Contrast Ratio 25% (minimum)
Resolution From 4 mils (.1mm)
Depth of field * CCD: 0 - 10 cm
Laser: 2.5 - 50 cm
Vista: 2.5 - 35 cm
Symbologies Decoded
All:UPC E&A, EAN, Code 39, Interleaved 2 of 5, Matrix, Industrial & Standard 2 of 5, Code 128, UCC EAN 128, Codabar, Code 93, MSI, Plessey
VT & VT PDF Only: ISBN, Telepen
PDF & VT PDF Only: PDF 417
Communications
Protocol All:Wand & Laser emulation, RS-232, IBM 46xx, OCIA, PC AT/PS2 wedge
VT & VT PDF: USB, OLEpos, HP700/xx
Certifications
Laser Safety(ST only) CDRH Class II, IEC 825 Class 2
Electrical/Emissions Complies with: FCC-15, CE Mark, C-TIC

* Dependant on the resolution of the Bar Code
(The Vista has been tested to over 50 cm on very large barcodes)

Standard Warranty on the Laser SP1800 is 3 Years and 5 years on the CCD Models

Ordering Information and Pricing


Part Number Qty Model Number Description RRP T
%
Inc GST
[A] ScanPlus 1800C Series - CCD with Trigger
0-360057-01

0-360052-01

9-4600-600-5

SP1800CT-USB

ScanPlus 1800 CCD Trigger USB Kit

$288.75 2
[B] ScanPlus 1800V Series - Vista (Linear Imager CCD) with Trigger
3-361057-01

3-361052-01

9-4600-610-4

SP1800VT-USB

ScanPlus 1800 Vista USB Kit

$385.00 2
[C] ScanPlus 1800 Series, Head Only with trigger (requires Interface cable)
0-360019-01

0-368019-01

3-366019-03

3-361019-01

3-369019-01

[D] Interface Cables
0-364031-00

0-366030-00

0-364032-00

0-364032-01

0-364037-00

3-364038-01

0-366032-00

9-4600-800-9

SP1800 Serial Cable with UMD D9

$136.13 2
[E] Accessories
0-360029-00

0-360029-01

0-900029-01

1-6008-031-7

PPI5RS2000-J13N

Power Supply Switching 5Vdc 2A

$33.00 U3
