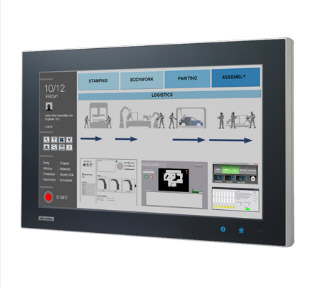

Advantech 40 Series
Stationary Touch Computers


Advantech's 40 Series stationary Multi-Touch Panel Computers have been designed as fully sealed and self contained units suitable for use in many environments. Powered by the AMD Dual Core T56N G-Series Processor with an independent GPU the 40 series can support the advanced graphical performance requirements of more complex applications. With it's Die-Cast Aluminium Housing and a Projected Capacitive Anti-Scratch Touchscreen with a 7H hardness rating, these units can be installed almost anywhere.

  • AMD T56N 1.6/1.65GHz processor
  • 18.5" or 21.5" Projective Capacitive Screen
  • All around IP65 with waterproof M12 connectors
  • Die-cast Aluminium-Alloy Enclosure
  • Fanless cooling system
  • Built-in function and home key button used for intuitive UI
  • Mini-PCIe expansion slot
  • 12 Month RTB Warranty with Extension options

Specifications

SPC-1840WPSPC-2140WP
Physical Characteristics
Dimensions488mm (w) x 309mm (h) x 65mm (d)558.4mm (w) x 349.8mm (h) x 65mm (d)
Weight8Kg9Kg
CaseDie-cast Aluminium Alloy
CoolingFanless
MountingVESA 100mm
Environmental Specifications
Operating Temperature0 to 55C
Storage Temperature-20 to 60C
Humidity10 to 95 % non condensing
Ingress ProtectionIP65
Vibration ProtectionWith HDD 1 G rms (5~500 Hz, operating, random vibration)
Power
Input24 VDC
Consumption35 W (typical)
Display Hardware
TypeTFT LED LCD
Size18.5"21.5"
Resolution1366 x 7681920 x 1080
Colours16.7 Million
Luminance300cd/m2
Viewing Angles170 Horrizontal/160 Vertical
Backlight Life50,000 hrs
Hardware
CPUAMD G-series T56N 1.65GHzAMD G-series T56N 1.6GHz
ChipsetAMD A50M FCH
Memory4GB SO-DIMM DDR3 SDRAM
Storage2.5" SATA HDD
ExpansionFull-sized Mini PCIe
Connectivity
LAN10/100/1000Base-T x 2
Serial PortsRS-232 x 1*, USB 2.0 x 1*
UserProjected Capacitive Multitouch
Software
OS SupportMicrosoft Windows 7+
Advantech Supported Application softwareSusiAccess
WebAccess
PanelExpress
WebOP Designer

* Connectors are M12 A-coding, 8-pin male

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Advantech SPC 40 Series IP67 Panel Mount Computer
SPC-1840WP-T3AE SPC-1840WP 18.5 WXGA STATIONARY MULTI-TOUCH PANEL $3,674.00 L
SPC-2140WP-T3AE SPC-2140WP 21.5 FULLHD STATIONARY MULTI-TOUCH PAN $4,158.00 L
Does not include Operating System (Windows 7/8/WESP7/WES2009/Linux) Order separately
[B] Options
EWM-W151H01E
1750007668-01
[C] Accessories
PWR-247-BE PS24RS2620 100-240V 63W 24V 2.62A POWER SUPPLY $143.00 L
[D] Cables
SPC-1840WP-MCKE SPC-1840WP M12 CABLE ACCESSORY KIT FOR SPC SERIES $275.00 L
Other Length Cables
Water Proof Network Cable Glands
[E] Mounting Options
MAX Mount - VESA Pole Mounting System
RAM Mounting Hardware
[F] Notes
Custom Programming available - Contact UMD Sales for details
