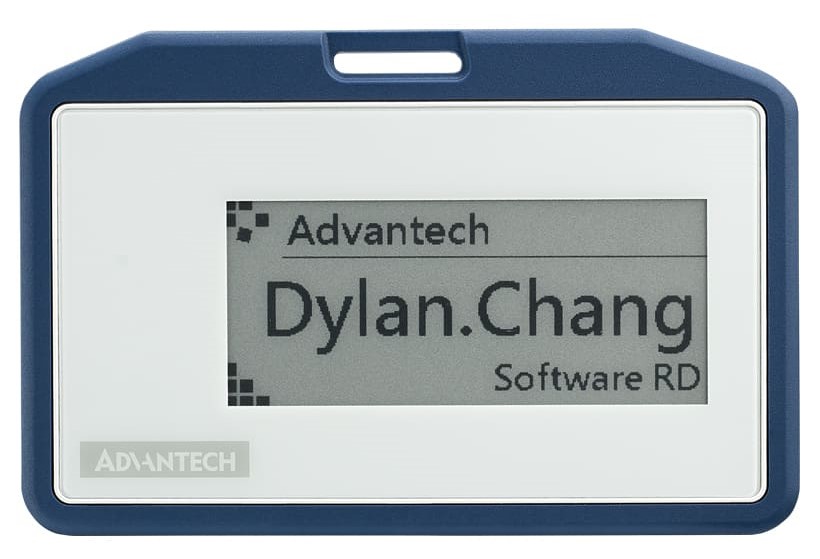

Advantech - EPD-210
ePaper Display


The Advantech EPD-210 is a batteryless ePaper display representing a new generation of eco-friendly products. Its 2.9 display can be viewed at 180 even in direct sunlight and does not require power to maintain its information display.

The EPD-210 ePaper Display receives power and data transmissions from NFC readers and devices. The displayed content can be immediately updated for convenience. Plus it comes with a flexible fastener suitable for various applications and user scenarios.

It is the ideal solution for replacing traditional paper and can be used as visitor badges, tracking cards or digital logistics labels in warehouses.

Features

  • Batteryless design
  • Thin exterior with a solid cover
  • 2.9 ePaper display with black and white colours
  • Make changes to the template design and powered by NFC
  • Sunlight-readable display with 180-degree viewing angle

Specifications

Physical Characteristics
Dimensions101 mm x 58 mm x 4 mm without fastener
InstallationFastener
Weight36 g
Environmental Characteristics
Operating Temperature0C to +40C
Ingress ProtectionIP57
Power
Power SupplyPowered by NFC
Display
Type2.9-inch Black & White Screen
Resolution296 x 128 Pixels
Viewing Angle180
DPI112
Communication
InterfaceNFC
ProtocolsISO/IEC 15693 type
ISO/IEC 14443 type
Frequency13.56 MHz
Image Storage4736 bytes


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Advantech EPD-210 ePaper Battreyless Display
EPD-210-001 2.9 B/W EPD, BATTERYLESS,NFC $139.70 A
