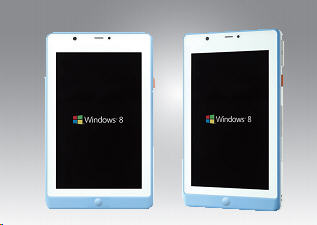

Advantech - Pocket Pad
Tablet PC


The Advantech Pocket Pad Tablet PC has been designed as a lightweight and powerfully equipped tablet PC designed with the needs of healthcare services in mind. Enterprise-ready, the Pocket Pad offers a blend of performance, integrated features and mobility. Weighing 400g the Pocket Pad helps every user to work faster, smarter and more effectively, providing the capabilities, applications, and ergonomic ease-of-use that mobile workers need to be more productive in today’s de-centralized work environments.

Features

  • 7" HD Resolution with Multi-Touch
  • Supports Windows 8.1 Professional and Windows 10 IoT
  • Drop Tested to 0.9m to all 6 faces
  • IP54 to protect against dust and moisture
  • Intel Atom Bay Trail Processor
  • Easily cleaned with standard cleaners
  • Solid State EMMC 32GB Drive
  • Integrated 1D/2D Barcode reader & NFC reader
  • 2MP Front Camera and 8MP AF Rear Camera with Flash
  • 12 Month warranty
Specifications
Physical Characteristics
Width 200 mm
Height 121 mm
Depth 14.5 - 24 mm
Weight 400g
Environmental Characteristics
Operating Temperature 0 to 40°C
Storage Temperature -20 to 60°C
Operating Humidity 10 to 95% (Non-Condensing)
IP RatingIP54 and Alcohol Resistant
DurabilityTested to 0.9m drop to all 6 surfaces
10G, 11ms Operating, 30G, 11ms Non-Operating
System Specifications
Processor Intel Atom Bay Trail Processor
System Memory 2GB LPDDR3 (Factory fitted)
Storage 32GB EMMC
Display Specifications
Size 7"
Resolution 800 x 1200
Electrical Specifications
Battery Lithium Ion, 4100mAh
External Power Supplied 1.5A Universal Adaptor
Wireless Specifications
Standard WiFi: 802.11a/b/g/n
Bluetooth: Bluetooth 4.0
GPS: Yes
NFC: ISO 14443
User Interface
Touch Screen 5 Point P-cap
Buttons Power, Volume up/Down, Barcode Reader, Generic Programmable, Home
Additional Interfaces
Standard Docking Connector
SD Card Slot
Micro USB 2.0 Port (On Dock)
HDMI (On Dock)
1D or 2D Barcode Reader
Inbuilt Speaker and Inbuilt Microphone
Cameras 8.0 Megapixel Rear Facing Camera with Flash
2.0 Megapixel Front Facing Web Camera
Software
Operating System Windows 8.1 or Windows 10 IoT
Dock
Ports 1 x USB 3.0
1 x HDMI
1 x LAN
1 x Micro SD Slot
1 x Line Out
Power Input
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Advantech Pocket Pad
MICA-071-A11-A1E MICA-071 7 POCKETABLE PAD $2,453.00 L0
[B] Accessories
MICA-071-DCRE MICA-071 DOCKING STATION $308.00 L
