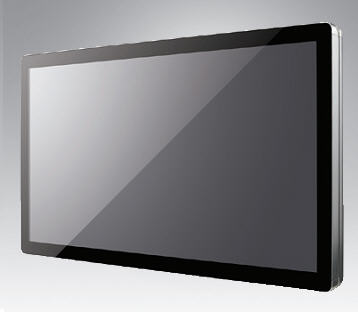

Advantech - UTC-515 Series
Touchscreen System


UTC-515 features an all-in-one computing system equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas. The systems deliver updated information with well-designed interactive interfaces, fully ensure relevant content and targeted promotions are delivered. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits.

Features

  • Low Power & Fanless design
  • Built-in CPU
  • Providing Natural Viewing Experience with 15.6" Display with a 16:9 aspect
  • Front panel complies with IP65 protection standard
  • All in one aluminum extrusion design
  • Landscape & Portrait screen mode support by different applications
  • VESA 100 mm standard mounting holes for varied mounting demands
  • Attachable design for panel & peripherals to extend function and applications
  • 24 Months Return to Base Warranty
  • Extended warranty of 1, 2 or 3 years available
Specifications
UTC-515A UTC-515B UTC-515C UTC-515D UTC-515E
Physical Characteristics
Width 390 mm
Height 240 mm
Depth 25.2 mm
Weight 4.85 Kg
Mounting 100mm VESA
Environmental Characteristics
Operating Temperature 0 to 40C
Humidity 10 to 95% @ 40C Non-Condensing
Vibration 0.5G
Shock 10G peak acceleration (11msec. duration)
Front Panel ProtectionIP65 / Nema4 Compliant
Electrical
Power Input 12V/5A (60W Adaptor)
Power Consumption 32W Typical, 40W Max. 40W Typical, 50W Max.
System Configuration
CPU AMD G-Series T40E
1.0 GHZ (Dual-core)
Intel Atom D2550
1.8 GHz (Dual Core)
Intel i3 3217UE
1.6 GHz
Intel Celeron J1900
2 GHz (Quad-Core)
Intel i5-4300U
1.9 GHz (Dual-Core)
System Chipset A50M Intel NM10 Intel QM77 - -
Cache 512KB L2 1MB L2 1MB L2 2MB L2 3MB L3
Memory 1 x SO-DIMM DDR3 1066 MHz up to 4 GB 1 x SO-DIMM DDR3 1066 MHz up to 4 GB 1 x SO-DIMM DDR3 1600 MHz up to 8 GB 1 x SO-DIMM DDR3L 1333 MHz up to 8 GB 1 x SO-DIMM DDR3L 1333/1600 MHz up to 8 GB
Display 15.6" TFT 1366 x 768 LCD, 300 cd/m2, 262K Colour
View Angle 170 / 160
Touch Panel Options 5-wire Resistive, Projected Capacitive, No Touch
HDD Internal 2.5" SATA Bay
SSD Support 1x CFast -
Speakers 2x 1W
I/O Ports
Audio 1x Line-In, 1x Line Out
Serial3x RS232
(RS422/485 Optional Function)
2x RS232
(RS422/485 Optional Function)
USB4x USB 2.02x USB 2.0, 2x USB 3.02x USB 2.0, 1x USB 3.02x USB 2.0, 2x USB 3.0
Video1x VGA & HDMI
Network2x RJ45 Gigabit Ethernet (Wake on LAN Support)
Audio1 Audio-Out, 1 Mic-In
ExpansionFull-size MiniPCIe/mSATA
Software
Operating SystemsWindows XP
Windows XP Embedded
Windows 7 Embedded
Windows 8 Embedded
Linux 3.0 Embedded
Windows 7/32 EmbeddedWindows XP
Windows XP Embedded
Windows 7 Embedded
Windows 8 Embedded
Linux 3.0 Embedded
Windows 7 Standard Embedded
Windows 8 Standard Embedded
Linux 3.0 Embedded
Mountable Options
Camera2M Camera Module, USB
Card ReadersMagnetic Stripe Reader (MSR), RFID Reader, Smart Card Reader
Barcode1D/2D Barcode Reader
Multi OptionBarcode, RFID, Smart Card & MSR
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] UTC-515 Series Touch Computer
UTC515AP-A02KES
UTC515AP-SED0ES
UTC515RE-DLG0ES
UTC515RE-SIXPES
UTC515RE-SED0ES
Base System Units, depending on configuration may require additional peripherals, including Operating System, to be added.
For incomplete systems contact UMD for a Quote.
[B] Mounting Stands
UTC-K01-STANDE
UTC-K02-STANDE
VESA Mount Brackets
