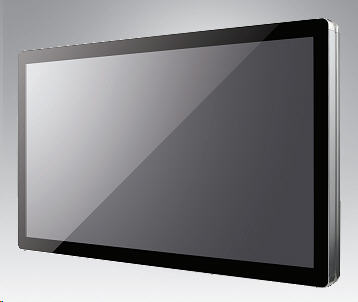

Advantech - UTC-532 Series
Touchscreen System


UTC-532 features an all-in-one computing system equipped with wide format, touch based 32" LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas. The systems deliver updated information with well-designed interactive interfaces, fully ensure relevant content and targeted promotions are delivered. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits.

Features

  • Low Power & Fanless design
  • Built-in CPU
  • Providing Natural Viewing Experience with 32" Display with a 16:9 aspect
  • Front panel complies with IP65 protection standard
  • All in one aluminum extrusion design
  • Landscape & Portrait screen mode support by different applications
  • VESA 200 mm standard mounting holes for varied mounting demands
  • Attachable design for panel & peripherals to extend function and applications
  • 24 Months Return to Base Warranty
  • Extended warranty of 1, 2 or 3 years available
Specifications
UTC-532A UTC-532C UTC-532D UTC-532E
Physical Characteristics
Width 786 mm
Height 480 mm
Depth 63 mm
Weight 18 Kg
Mounting 200mm VESA
Environmental Characteristics
Operating Temperature 0 to 40C
Humidity 10 to 95% @ 40C Non-Condensing
Vibration 0.5G
Shock 10G peak acceleration (11msec. duration)
Front Panel ProtectionIP65 / Nema4 Compliant
Electrical
Power Input 100-240V/AC 3.15A
Power Consumption 95W Typical, 105W Max.
System Configuration
CPU AMD G-Series T40E
1.0 GHZ (Dual-core)
Intel i7 3517UE
1.7 GHz
Intel Celeron J1900
2 GHz (Quad-Core)
Intel i5-4300U
1.9 GHz (Dual-Core)
System Chipset A50M Intel QM77 - -
Cache 512KB L2 1MB L2(L3, 4MB) 2MB L2 3MB L3
Memory 1 x SO-DIMM DDR3 1066 MHz up to 4 GB 1 x SO-DIMM DDR3 1600 MHz up to 8 GB 1 x SO-DIMM DDR3L 1333 MHz up to 8 GB 1 x SO-DIMM DDR3L 1333/1600 MHz up to 8 GB
Display 15.6" TFT 1366 x 768 LCD, 300 cd/m2, 262K Colour
View Angle 178 / 178
Touch Panel Options 5-wire Resistive, Projected Capacitive, No Touch
HDD Internal 2.5" SATA Bay
SSD Support -
Speakers 2x 3W
I/O Ports
Audio 1x Line-In, 1x Line Out
Serial3x RS232
(RS422/485 Optional Function)
2x RS232
(RS422/485 Optional Function)
USB4x USB 2.02x USB 2.0, 2x USB 3.02x USB 2.0, 1x USB 3.02x USB 2.0, 2x USB 3.0
Video1x VGA & HDMI
Network2x RJ45 Gigabit Ethernet (Wake on LAN Support)
Audio1 Audio-Out, 1 Mic-In
ExpansionFull-size MiniPCIe/mSATA
Software
Operating SystemsWindows XP
Windows XP Embedded
Windows 7 Embedded
Windows 8 Embedded
Linux 3.0 Embedded
Windows XP
Windows XP Embedded
Windows 7 Embedded
Windows 8 Embedded
Linux 3.0 Embedded
Windows 7 Standard Embedded
Windows 8 Standard Embedded
Linux 3.0 Embedded
Mountable Options
Camera2M Camera Module, USB
Card ReadersMagnetic Stripe Reader (MSR), RFID Reader, Smart Card Reader
Barcode1D/2D Barcode Reader
Multi OptionBarcode, RFID, Smart Card & MSR
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] UTC-532 Series Touch Computer
UTC532
Base System Units, depending on configuration may require additional peripherals, including Operating System, to be added.
For incomplete systems contact UMD for a Quote.Item:
UTC-P01-A0E
UTC-P02-A0E MAGNETIC STRIPE CARD READER FOR UTC-5XX $198.00 L
UTC-P03-A0E
UTC-P06-A0E SMART CARD READER FOR UTC-5XX (USB CONN $154.00 L
UTC-P07-A1E 2D BARCODE WITH DATALOGIC MODULE FOR UT $748.00 L
UTC-P21-A0E BARCODE READER + RFID + CARD READER + M $891.00 L
VESA Mount Brackets
