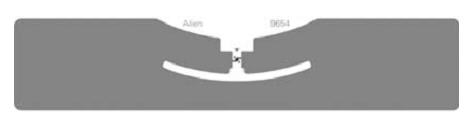

Alien Technology - ALN 9654 G
UHF RFID Inlay


Powered by Alien®’s break-through Higgs™3 UHF RFID IC and innovative antenna design, the ALN-9654 delivers industry leading EPC Gen 2 performance and reliability.

With its Higgs-3 core, the “G” delivers ultra-high, “best-of-breed” performance. It is especially well-suited for challenging materials with high-dielectrics, such as plastic and glass (hence the “G” nickname).

An optimized memory footprint includes a 32-bit TID, a 64-bit Unique TID for authentication and next generation serialization applications, an extensible EPC memory bank, 512-bits of user memory for distributed data applications, and password protected read and write support capabilities to prevent unauthorized viewing and modification of the tag’s data.

Applications

  • Windshield glass
  • Reusable plastic pallets
  • Totes and containers
  • Asset management
  • High speed motocross and triathlon tagging

Specifications

Physical Characteristics
Dimensions93 mm x 19 mm
AdhesiveGeneral Purpose Permanent
OverlayTT Printable White Film
Environmental Characteristics
Shelf Life2 Years @ 25°C 40% Relative Humidity (Non-Condensing)
Shelf Storage Limits-25°C to +50°C
20% to 90% Relative Humidity (Non-Condensing)
Application TemperatureGreater Than -4°C
Operating Limits-40°C to +70°C
20% to 90% Relative Humidity (Non-Condensing)
ESD LimitHBM: 5.0kV
CDM: 1.5kV
RFID Characteristics
RF ProtocolEPC Gen 2(ISO 18000-6C)
Operating Frequency Range840 to 960 MHz
Operating ModePassive
Tag Characteristics
EPC90 - 480 bits
ICAlien Higgs-3
Read RangeTBA
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Sample Tags
9-9741-542-3 ALN-9654-FWRW-1 Alien G, White Wet Inlay, Higgs-3, Each $1.10 C
9-9741-541-2 ALN-9654-FWRW-TST Alien G, White Wet Inlay, Higgs-3, 1K $781.00 F
[B] Rolls
9-9741-540-8 ALN-9654-FWRW Alien G, White Wet Inlay, Higgs-3, 12.5K $3,927.00 F
