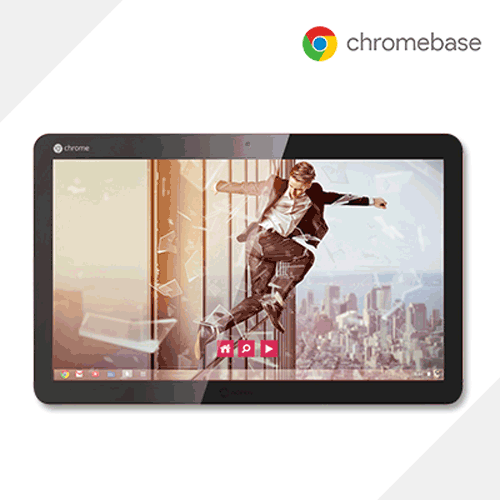

AOPEN - Chromebase 22''
Touchscreen


The Chromebase Commercial is a solid-state device designed to be extremely robust and secure, making it ideal for interactive public display in high traffic environments (i.e. as a digital signage, POS or kiosk system). For connecting other devices such as POS peripherals and authentication devices (i.e. biometrics), the Chromebase Commercial has commercial ports, ruling out the need for multiple power cables.

Chrome device management allows administrators to manage their organization’s Chrome devices from a single place. Integrators can also use the signage app of their preference available via the Chrome Web Store to control what’s on the screen.

Features

  • 22" Multi-Touch Display
  • Commercial grade multi-touch Chrome OS all-in-one display
  • Tough and tamperproof design for 24/7 operability in public spaces
  • Commercial ports for connecting peripherals
  • Good viewing angles in landscape and portrait
  • Endless mounting options
  • 3 Year Warranty
Specifications
Physical Characteristics
Width 525.4mm
Height 32mm
Depth 33.6mm
Weight 6.5 Kg
Environmental Characteristics
Operating Temperature 0 to 40°C
Storage Temperature -10 to 50°C
Operating Humidity 20 to 80% (Non-Condensing)
Storage Humidity 10 to 85% (Non-Condensing)
IP RatingIP65
Electrical
Power Source External 100 ~240 V/AC, 1.5A
Power Adaptor Output +19.0 V/DC, 65W/3.4A
System Configuration
Graphics Integrated Graphics (313Mhz Base, 854Mhz Turbo)
CPU Intel Celeron N2930 Quad Core CPU 1.86GHz
RAM DDR3L 1.35V SO-DIMM, 1333Mpbs, 4GB
Display 21.5” (1920x1080)
Touch Panel Passive Capacitive 10 Point Multi-Touch
Storage 32GB
Serial 4 Powered Com Ports (12v, 5v, 0v selectable)
USB6 USB 2.0 Ports
Network1 RJ45 Ethernet, Realtek RTL8111H
AudioMaxim MAX98090 Combo audio Jack - Mic-in/Line-out
VideoHDMI output connector
Operating SystemChrome OS
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] Chromebase Commercial 22"
AOWT22FF-CHROME
