Confidex Carrier Series
Robust UHF RFID Asset & Logistics Label Tags

The Confidex range of Special Washable UHF Label Tags for reusable plastic containers are designed with a high strength acrylic adhesive for low surface energy plastics to ensure a long operational life in challenging conditions.

Features

  • Designed for outdoor use and strong impact resistance
  • Designed for plastic container applications
  • Up to 12 meters read range without line of sight being necessary
  • Read/Write capability including optional private or hidden data areas

Specifications

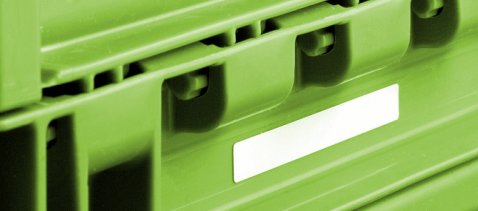

ProductCarrier Classic
(3000394)

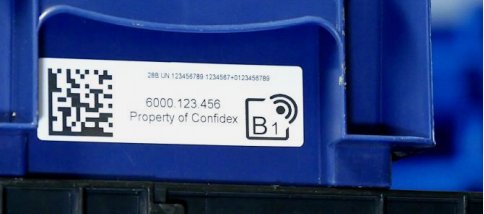

Carrier Classic KLT
(3003340)

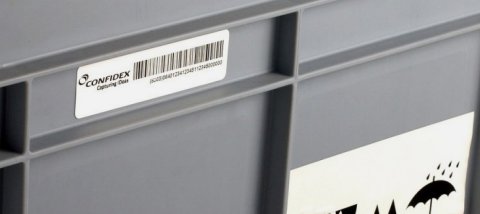

Carrier Pro
(3000446)

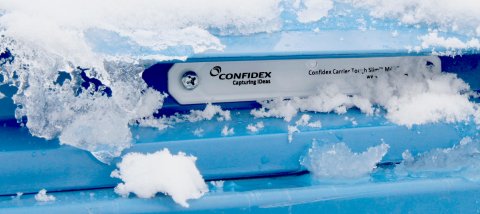

Carrier Touch Slim
(3001440)
Carrier Dual
(3003473 V10)(3004087 V12)
Physical Characteristics
Dimensions73 mm x 8mm x 0.25mm102 mm x 30mm x 0.25mm92 mm x 24mm x 0.25mm102 mm x 18mm x 0.25mm70 mm x 36mm x 0.2mm
Weight0.1g0.1g0.8g1g>1g
Tag MaterialPrintable white PETPrintable white PETPrintable white PETScratch and bend-resistant engineering plasticPrintable white PET
ColourWhite
Environmental Characteristics
Operating Temperature-35- 85C
Ambient Temperature-35- 90C
Water ProtectionGood, tested 5 hours in 1m deep water (IP68)IP68Good, tested 5 hours in 1m deep water (IP68)
Washing ResistanceGood, tested 300 cycles with water at 175bar / 80C-Good, tested 800 cycles with water at 175bar / 80C--
Chemical ResistanceNo physical or performance changes in:
- 168h Salt water (salinity 10%) exposure
- 168h Motor oil exposure
- 24h NaOH (10%, pH 13) exposure
- 24h Sulfuric acid (10%, pH 2) exposure
- 30min Acetone exposure
No physical or performance changes in:
- 168h Salt water (salinity 10%) exposure
- 168h Motor oil exposure
- 168h NaOH (10%, pH 13) exposure
- 24h Sulfuric acid (10%, pH 2) exposure
- 20min Acetone exposure
No physical or performance changes in:
- 168h Salt water (salinity 10%) exposure
- 168h Motor oil exposure
- 168h NaOH (10%, pH 13) exposure
- 168h Sulfuric acid (10%, pH 2) exposure
- 30min Acetone exposure
No physical or performance changes in:
- 168h Salt water (salinity 10%) exposure
- 168h Motor oil exposure
- 168h NaOH (10%, pH 13) exposure
- 168h Sulfuric acid (10%, pH 2) exposure
No physical or performance changes in:
- 168h Salt water (salinity 10%) exposure
- 168h Motor oil exposure
- 168h Sulfuric acid (10%, pH 2) exposure
- 24h NaOH (10%, pH 13) exposure
- 20min Acetone exposure
Storage Conditions1 year in +20C / 50% RH (shelf life for adhesive)
Communication Characteristics
Operating Frequency918 MHz - 928 MHz (FCC)865 MHz - 928 MHz
NFC 13,56 MHz
Chip TypeMonza 4QT
(EPC 128 bit; User 512 bit; TID 96 bit)
Monza 4E**
(EPC 496 bit; User 128 bit; TID 96 bit)
Monza 4QT
EPC 128 bit; User 512 bit; TID 96 bit

Monza 4QT
(EPC 128 bit; User 512 bit; TID 96 bit)
Monza 4E**
(EPC 496 bit; User 128 bit; TID 96 bit)
EM Microelectronic EM4425
(EPC Gen2v2/NFC Forum Type 5 ISO15693)
V10: 64 bit HF UID, 288 bit EPC, 256 bit User, 96 bit TID, Shared User 1472 bits
V12: 64 bit HF UID, 96 bit UHF TID, 2048 bits configurable shared EPC/User
Read Distance(2W ERP)Up to 8 m on plastic
Upto 8m on cardboard
Up to 12 m on plastic
Upto 10m on cardboard
RAIN RFID:
Upto 11m on cardboard
Upto 11m on plastic
HF/NFC:
Upto 30mm - Mobile phone
Upto 600mm - Fixed reader

** - Upon special request only

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Confidex Carrier Series M4QT 2000/roll(Standard stock Line)
Stock Line
CX-3000446 Carrier Pro M4QT $1.54 A
CX-3000394 Carrier Classic M4QT $2.20 A
Indent
CX-3003340
CX-3001440 Carrier Tough Slim M4QT $6.60 A
CX-3003473
CX-3004087
Other tags available on request
