Denso - AT20 Series
Hand Held Bar Code Reader (Corded)


The Denso AT20 Series is a new generation of high performance Barcode Linea (1D) and Area (2D) Imagers based on solid state CCD (camera) technology and is designed to outperform most standard barcode readers. Created in a lightweight, pistol grip style, with a Red/Green LED and beeper, the AT20 series provides high speed scanning with a wide read area to allow the reading of barcodes quickly and in any direction.

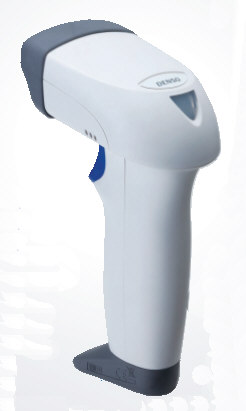

The AT20 Series is available in white (AT20) or black (AT21) housing colors.

The AT2XB series 1D Linea Imager can read all popular 1D barcodes.

The AT2XQ series 2D Area Imager reads both 1D and 2D barcodes, reads well from a mobile phone screen and can be used to concurrently read up to 3 lines of barcodes. In addition to this the AT20Q is supplied with an Eye-friendly read area marker and can be used for image capture.

The set-up and configuration of this scanner is easily done by printing out configuration bar codes, using the freely available Set-up Software.

Features

  • Multiple interface options
  • 1D (linear) and 2D (area) Imager versions
  • Easy to pickup and use
  • Manual, auto or software trigger
  • Long range scanning
  • Fast reading and decoding
  • Eye-friendly read area marker
  • Advanced configuration software tool
  • High Durability - 2m Drop
  • Twist & Lock Cables for easy replacement
  • Exceptional 5 year warranty

Specifications

AT20Q - 2DAT20B - 1D
Mechanical
Dimensions 63 (h) x 80 (w) x 158 (l) mm
Weight(Without cable) 110g
Standard Cable 180cm
Environmental
Operating Temp. -5 to +50C
Storage Temp. -10 to +60C
Relative Humidity 10% to 90% (no condensation or frost)
IP Rating IP 42
Shock 2 metres to concrete
Electrical
Voltage 5.0 VDC +/- 5%
Operating Current Upto 500mA
Idling Current Upto 170mA
Optical
Scan Rate(per second) 120
Optics Area Sensor
Pitch +/- 50
Skew +/- 50
Print Contrast Ratio 50%
Resolution
1D
2D

0.125 (min)
0.167 (min)

0.125 (min)
-
Depth of field
1D
2D

45 - 280 mm
50 - 260 mm

45 - 280 mm
-
Symbologies Decoded
EAN-13/8 (JAN-13/8), UPC-A/E, UPC/EAN (with add-on), Interleaved 2 of 5, CODABAR (NW-7), CODE39, CODE93, CODE128, GS1-128 (EAN -128), GS1 Databar (RSS), Standard 2 of 5, QR code, Micro QR code, SQRC, iQR, Data Matrix (ECC200), PDF417, Micro PDF417, Maxi code, Aztec, GS1 Data Bar Composite (EAN.UCC Composite) EAN-13/8 (JAN-13/8), UPC-A/E, UPC/EAN (with add-on), Interleaved 2 of 5, CODABAR (NW-7), CODE39, CODE93, CODE128, GS1-128 (EAN -128), GS1 Databar (RSS), Standard 2 of 5
Communications
Interfaces RS232 Serial, USB Serial, USB Keyboard
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] AT20B Series - 1D Linea Imager
Black (Preferred)
AT21B-UB-KIT AT21B-UB-KIT AT21B-SM (Black) scanner with USB Cable $198.00 G
AT21B-RB-KIT AT21B-RB-KIT AT21B-SM (Black) scanner with RS232 Cable with DC Jack $231.00 G
White (Indent)
AT20B-UW-KIT AT20B-UW-KIT AT20B-SM (White) scanner with USB Cable $165.00 G
AT20B-RW-KIT AT20B-RW-KIT AT20B-SM (White) scanner with RS232 Cable with DC Jack $198.00 G
Kits include the hands free stand!
[B] AT20Q Series - 2D Area Imager
White
AT20Q-UW-KIT AT20Qw-USB AT20Q-SM (White) scanner with USB Cable and hands free stand $407.00 G
AT20Q-RW-KIT AT20Qw-RS AT20Q-SM (White) scanner with RS232 Cable with DC Jack and hands free stand $440.00 G
Black
AT21Q-UB-KIT AT21Qb-USB AT21Q-SM (Black) scanner with USB Cable and hands free stand $407.00 G
AT21Q-RB-KIT AT21Qb-RS AT21Q-SM (Black) scanner with RS232 Cable with DC Jack and hands free stand $440.00 G
[C] Common Cables
454890-9520 454890-9520 USB Cable for AT20/21 2m $44.00 E
454890-9530 454890-9530 RS232 Cable with DC Jack for AT20/21 2m $44.00 E
[D] Accessories
AT21B-HFS H-AT20 Hand free stand $22.00 G
5V-AC-KIT 5V-AC-KIT 5V AC adaptor $44.00 3
