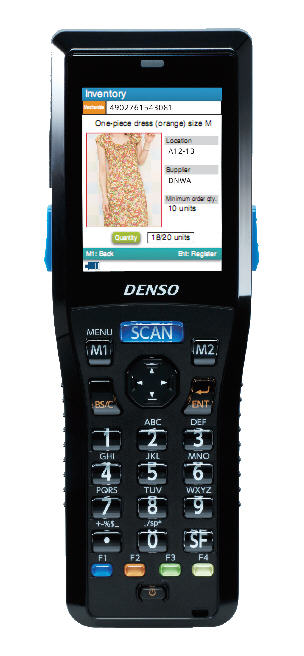

Denso - BHT1300 Series
Hand Held Warehouse Computer


The Denso BHT-1300 Series of Bar-Code Handy Terminals are versatile, rugged devices that combine the simplicity of the BHT O/S, QVGA colour touch screen, IP54 rated housing and shock resistant to withstand multiple 2.0m drops to concrete.

Features

  • Advanced CCD scan engine (support GS1 Databar)
  • 2.5" QVGA touch screen
  • Industrial strength IP54 with 2.0 metre drop rating
  • WiFi 802.11 b/g/n, Bluetooth
  • MicroSDHC (~32G), LED, speaker, vibrator
  • Up to 98 hours usage on single charge (Lithium-Ion)
  • 32 bit RISC CPU
  • 64MB Flash
  • 12 Months Standard Warranty with Optional 2 Year Extension

Specifications

BHT-1306QWBBHT-1306BWB
Physical Characteristics
Length
158 mm
Width
52.5 mm
Depth
36 mm
Weight
206g (Including Standard Battery)
Environmental Characteristics
Temperature
-20° to 50°C
Fluid/Dust Protection
IP54
Shock Resistance
2.0 m drop to concrete
(10 times each on all 6 sides - total 60 times)
Hardware
Flash ROM
64 MB (45 MB User area)
Processor
32bit RISC 800MHz
Display
Colour QVGA Backlit LCD (240 x 320 pixels), with White LED Backlight
Displayable Characters
16 Pixel Font: 30 Characters x 20 Rows
24 Pixel Font: 20 Characters x 13 Rows
User Interface
22 keys, + Crosshair Cursor Key, + 2 Trigger Keys
Power
Main Battery
Standard or Thin Lithium Ion Battery
or
3x AAA Alkaline with Cell Adaptor
Battery Life (Lithium Ion)
Standard:
Thin:

Upto 95 Hours
Upto 55 Hours

Upto 98 Hours
Upto 57 Hours
Software
Operating System
BHT Basic OS V4.0
Barcode Scanner
Type
Area Imager
Linea Imager
Indicators
LED Indicator
Tricolour LED (red, blue,green)
Audible
Buzzer
Tactile
Internal Vibrator function
Communications
Wireless
IEEE 802.11b/g/n
Bluetooth 2.0 + EDR
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Denso BHT-1300 1D Terminal (Includes Extended Battery)
BHT-1300-ST1 BHT-1306B BHT-1306B: 1D Batch Terminal with battery and cable. $1,210.00 G
BHT-1300-ST2 BHT-1306BWB BHT-1306BWB: 1D Wifi + Bluetooth® Terminal with battery and cable. $1,331.00 G
[B] Denso BHT-1300 2D Terminal (Includes Extended Battery)
BHT-1300-ST3 BHT-1306Q BHT-1306Q: 2D Batch Terminal with battery and cable. $1,463.00 G
BHT-1300-ST4 BHT-1306QWB BHT-1306QWB: 2D Wifi + Bluetooth® Terminal with battery and cable. $1,584.00 G
[C] Charging Cradles
CU-1321-KIT CU-1321 CU-1321 USB charging and communication cradle with power supply $209.00 G
CU-1301-KIT CU-1301 CU-1301 Serial charging and communication cradle with power supply $264.00 G
[D] Accessories
M299994370 Softtcase for BHT1300 $143.00 F
M299994380 Belt Holster for BHT1300 $121.00 F
[E] Replacement Parts
496461-0820 BT-130LA BT-130L-C : Slim battery (BT20LB: 100mAh) with out battery cover $66.00 G
496461-0750 BT-130LA-C BT-130L-C : Slim battery (BT20LB: 100mAh) with battery cover $55.00 G
496461-0760 BT-130L-C BT-130L-C : Standard battery (BT20LB: 1880mAh) with battery cover $143.00 F
2-6270-020-5 CA6270-2 USB 2.0 Cable A/B, Black - 2m $8.80 C
2-6313-010-2 CA6313-1 USB A to micro-B - 1m $22.00 C
5V-AC-KIT 5V-AC-KIT 5V AC adaptor $44.00 3
