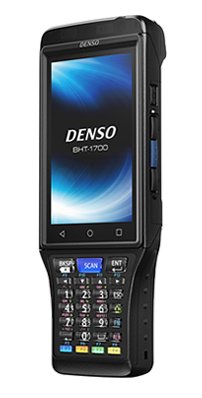

Denso - BHT1700 Series
Hand Held Warehouse Computer


The DENSO BHT-1700 series is an Android based Handheld Terminal that features a large high-definition display which ensures crystal clear visibility. The terminal has an IP67 rating and an ergonomic design that facilitates easy single-handed operation.

The DENSO BHT-1700 has a wide range of features commonly associated with mobile computers and a very generous 3 Year Warranty, is powered by Android 7.1.2 Nougat and is very light-weight compared to other units in it's class. The BHT-1700 is specifically designed to work as an industrial PDA, providing rich options for data collection, voice and data communication, long-lasting working hours, and its large colour display guarantees easy reading in all lighting conditions.

Integrated with Bluetooth this Terminal series also includes optional 3G and 4G LTE WWAN models with GPS that enable greater mobility applications, as well as a pistol grip option with a longer range barcode reader.

Features

  • Built tough to survive drop test and sealed against moisture/dust to industrial standard IP67
  • Android 7.1.2 Nougat operating system with a powerful Qualcomm 1.3 CPU
  • Numeric Keypad
  • High Quality large 4"(102mm) touch screen display
  • Crack Resistant Asahi Dragontrail Pro Glass (best in the business)
  • Ergonomic Operation (Angled Scan Engine)
  • 8MP Camera with Autofocus
  • 2 nano-SIM Slots
  • Long battery life
  • Extreme Temperature operation
  • Pistol grip model option with 10m barcode reader
  • 3 Year Warranty

Specifications

BHT-1700QWB-1-A7BHT-1700QWB-2-A7BHT-1700QWBG-1-A7BHT-1700QWBG-2-A7BHT-1700QLWB-P-A7BHT-1700BWB-1-A7
Physical Characteristics
Length
188 mm
206 mm
194.5 mm
Width
71 mm
Depth
32 mm
159 mm
43 mm
Weight
308g
438g
298g
Environmental Characteristics
Temperature
-20° to 50°C
Fluid/Dust Protection
IP67
Shock Resistance
1.5m×60 times, 2.5m
1.2m×60 times, 2m
1.5m×60 times, 2.5 m
Hardware
CPU
1.3GHz Quad-core
Memory
2GB RAM, 16GB Flash, Micro SDHC/SDXC (Upto 128GB)
Display
4.0inch WVGA Colour Liquid Crystal dot matrix display(480×800 dots, with White LED Backlight
Touch Screen
DragontrailŽ PRO
User Interface
31 keys + 3 trigger keys
31 keys + 4 trigger keys
31 keys+ 3 trigger keys
Camera
Rear 8MP auto focus
Rear 8MP auto focus
Power
Main Battery
Standard 2300mAh or High-Capacity 3450mAh Lithium Ion Battery
Battery Life
Standard:
Hi Capacity:

Upto 22 Hours
Upto 33 Hours

Upto 12 Hours
Upto 18 Hours

Upto 20 Hours
Upto 30 Hours

Upto 22 Hours
Upto 33 Hours
Software
Operating System
Android7.1.2
Barcode Reader
Type
Area Imager
Auto Focus Long Range Area Imager
Linea Imager
User Feedback
LED Indicator, Speaker, Vibrator
Communications
Wireless
IEEE 802.11a/b/g/n
Bluetooth 2.0 + EDR
-
4G LTE/3G/GSM、VoLTE, A-GPS/GLONASS, Nano SIM ×2
-
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Denso BHT1700 Kits - Includes Battery and Direct connect cable
BHT-1700-ST1 BHT-1700-1D BHT-1700BWB-1 1D WIFI / GMS STANDARD (UNIT, HANDBELT, STYLUS, OPERATOR'S GUIDE) $1,518.00 A
BHT-1700-ST2 BHT-1700-2D BHT-1700QWB-1 2D WIFI / GMS STANDARD, HANDBELT, STYLUS $1,738.00 A
BHT-17LR-ST1 BHT-1700H-LR BHT-1700LWB-P-2D Long Range Wifi / GSM Standard, Integrated Handle, Battery, USB Direct Cable $3,036.00 A
[B] Denso BHT-1700 Terminals Only (batteries must be ordered separately)
Denso BHT-1700 Wifi Only
104969-3200 BHT-1700QWB-1 2D WIFI / GMS STANDARD, HANDBELT, STYLUS $1,650.00 A
104969-3210 BHT-1700QWB-2 2D WIFI / GMS WITH NFC AND REAR CAMERA, HANDBELT, STYLUS $1,870.00 A
Denso BHT-1700 4G (Indent only on special request)
104969-3220 BHT-1700QWBG-1 2D WIFI+LTE / GMS STANDARD, HANDBELT, STYLUS $1,914.00 A
104969-3230 BHT-1700QWBG-2 2D WIFI+LTE / GMS WITH NFC AND REAR CAMERA, HBELT, STYLUS $2,134.00 A
Denso BHT-1700 Long Range Pistol Grip
104969-3240 BHT-1700QLWB-P 2D LONG RANGE WIFI / GMS STANDARD, HANDSTRAP, STYLUS $3,025.00 A
Denso BHT-1700 1D Linear barcode reading only
496300-6850 BHT-1700BWB-1 1D WIFI / GMS STANDARD (UNIT, HANDBELT, STYLUS, OPERATOR'S GUIDE) $1,419.00 A
[C] Charging Cradles
CU-BU1-17-KIT CU-BU1-17 - USB CRADLE FOR BHT-1700 INCLUDING POWER SUPPLY AND USB CABLE $242.00 A
CU-BL1-17-KIT CU-BL1-17 - LAN CRADLE FOR BHT-1700 INCLUDING POWER SUPPLY $363.00 A
CH-B4-17-KIT CH-B4-17 - 4 SLOT TERMINAL CHARGER FOR BHT-1700 INCLUDING POWER SUPPLY $572.00 A
CH-1104-KIT CH-1104 4 SLOT BATT CHARGER (BT-110 & BT-20) WITH 12V POWER SUPPLY $385.00 A
[D] Accessories
496461-1100 BT-170LA-C - STANDARD BATTERY WITH COVER FOR BHT-1700 $110.00 A
496461-1110 BT-170L-C - LARGE BATTERY WITH COVER FOR BHT-1700 $132.00 A
496460-1120 12 VOLT POWER SUPPLY $66.00 A
