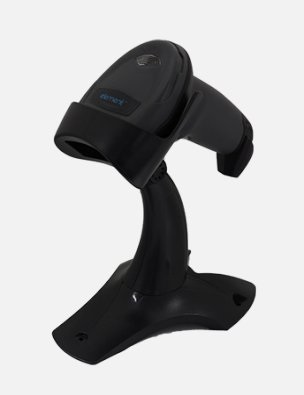

Element P100
Hand Held Bar Code Reader


Element's P100 Handheld 2D Barcode Reader, with its comfortable, ergonomic design and unmatched scanning performance, offers superior out-of-box experience for scan intensive applications in all retail environments.

Features

  • New generation COMS image sensor
  • Intelligent auxiliary aiming and lighting system
  • 1.5m drop resistance, IP42 rating
  • Comfortable, ergonomic design
  • Scans highly-distorted barcodes
  • 24 Month Return to Base Warranty

Specifications

Mechanical
Dimensions 83mm L x 67mm W x 175mm H
Weight 128g
Environmental
Operating Temp. -20 to 50° C
Storage Temp. -40 to 70° C
Relative Humidity 5% to 95% (non-condensing)
Shock 150cm (5ft) drop
Electrical
Voltage Range 5.0 VDC ±5%
Operating Current (nominal) 230 mA(typical)
100 mA(standby)
Environmental Sealing IP42
Optical
Pitch ±60°
Skew ±60°
Roll 0-360°
Light Source Infrared LED
Image Sensor CMOS
Sensor Resolution 640x480
Print Contrast Ratio 20% minimim reflective difference
Read Distance 15mm to 300mm Depending on barcode
Symbologies Decoded
1D: Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5,ITF-6, ITF-4, Matrix 2 of 5,Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, RSS-14, RSS-Limited, RSS-Expanded
2D: PDF417, QR Code, Data Matrix, HanXin, Maxicode ,Postal Codes
Communications
Interfaces Supported USB, RS232


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] Element P100
P100-003 P100 ELEMENT SCANNER KIT P100 2D-SR USB STAND BLK $88.00 C4
