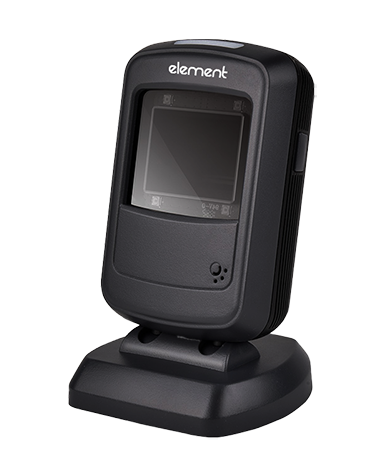

Element P220
Presentation Bar Code Reader


The Element P220 Desktop 2D Omni-directional barcode scanner is a versatile, small form factor barcode scanner optimised for scanning all common 2D barcodes and digital codes from smartphones.

The multi interface design and 640 x 480 CMOS Image sensor provides great all round performance. The design is compact and solid, offering a comfortable grip and anti-vibration desk mount. Suitable for retail, medical, financial, transport, post manufacture and logistics.

Features

  • Solid-state hardware, higher stability and reliability
  • Multiple common interfaces, highly compatible
  • Independent R&D of core decoding technology
  • Auto sense
  • Wide-angle adjustable scanning window
  • 24 month Return to Base Warranty

Specifications

Mechanical
Dimensions 90mm D x 79mm W x 142mm H
Weight 385g
Environmental
Operating Temp. -20 to 50 C
Storage Temp. -40 to 70 C
Relative Humidity 5% to 85% (non-condensing)
Housing PC+TPU
Electrical
Voltage Range 5.0 VDC 5%
Operating Current (nominal) Presentation Mode: 245mA
Standby Mode: 140mA
Optical
Image Sensor CMOS, 640x480
Pitch 60 (Typical)
Skew 60 (Typical)
Light Source White LED
Environment Luminosity 0~100,000LUX
Print Contrast Ratio 20% minimim reflective difference
Read Distance 0mm to 250mm (dependant on barcode)
Symbologies Decoded
1D: : Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E,UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Plessey, MSIPlessey, RSS-14, RSS-Limited, RSS-Expanded
2D: PDF417, QR Code, Data Matrix, HanXin, Maxicode
Communications
Interfaces Supported USB, USB Virtual Serial Port, RS-232 Serial

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Element P220
P220-001 P220 ELEMENT SCANNER KIT P220 2D USB BLK #N/A A
