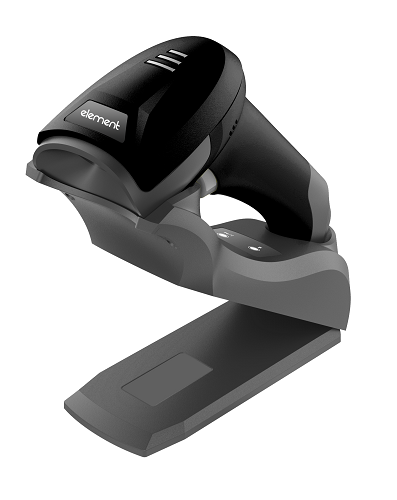

Element P303BT
Hand Held Wireless Bar Code Reader


The Element P303BT 2D Cordless Bluetooth barcode scanner provides high speed, omnidirectional reading of 1D, 2D, Postal and OCR barcodes. Its versatility provides a super large field of view and 30-meter working range at open space. The cradle configuration allows for adaptability for different use cases, from presentation mode, self scanning and wall mounting.

The Element P303BT has the ability to read barcodes reliably off cell phone screens and has the capability to work with Apple iOS, Android, Window PC/tablets. This versatile scanner, designed with a disinfectant ready IP42 housing, is designed to meet the varying needs of your scanning applications.

  • High speed, omnidirectional reading of 1D, 2D, Postal barcodes and OCR
  • 30-meter working range at open space
  • Reads barcode reliably off cell phone screens
  • Disinfectant ready, IP42 housing
  • 24 Month Return to Base Warranty

Specifications

Mechanical
Dimensions 109mm L x 82mm W x 207mm H
Weight 475 g
Environmental
Operating Temp. 0 to 50 C
Storage Temp. -40 to 70 C
Relative Humidity 0% to 95% (non-condensing)
Shock 150cm (5ft) drop
Environmental Sealing IP42
Electrical
Battery 2500mAh LiIon
Charge Time 6-6 hours
Operating Time 12 hours from full charge
Optical
Pitch 65
Yaw 60
Roll 0-360
Light Source 6500K White LED
Aimer : 617 nm LED
Field of View 40(H) x 32(V)
Print Contrast Ratio 25% minimim reflective difference
Read Distance 10mm to 170mm Depending on barcode
Symbologies Decoded
1D: UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal
2D: PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin
Communications
Bluetooth 5.0
Transmit Distance Upto 30m
Dock Interfaces Supported USB-HID, USB-COM

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Element P303BT
P303BT-001 P303BT ELEMENT SCANNER KIT P303BT 2D BT CRD/USB BLK #N/A A
