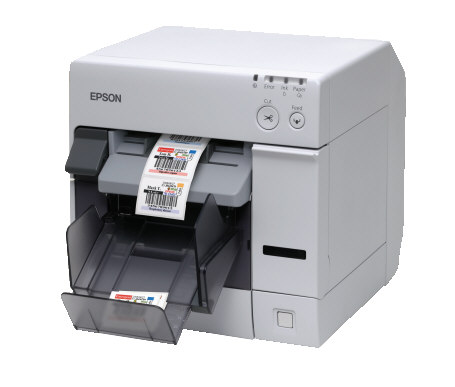

Epson - TM-C3400
Inkjet Printer


The Epson TM-C3400 Inkjet Printer is a full-color, on demand printer for creating eye catching tickets, coupons, wristbands and labels. With print speeds up to 92mm/sec, easy paper loading and ease of use, the TM-C3400 is based on Epsonís proven ink-jet technology, known worldwide for quality and reliability.

Now you have the flexibility to print on-demand color ticket or label in seconds that target specific customers one-on-one or target specific products and offers. Already retailers are using Epsonís color coupon printers with amazing success. Customers have reported that redemption rates have increased up to 25% over black and white coupons, order sizes are larger and customer visits have risen.

Requiring very little maintenance, the TM-C3400 is ultra-reliable thanks to its Micro†Piezo printhead and long-life autocutter. The printer can be remotely managed, and features USB and network interface options for easy connectivity.

Simple to use the TM-C3400 offers 25mm to 104mm wide printing on a variety of print media, enabling you to tailor the output result to your specific requirements for the best outcome. A plain paper selection and water-based inks can also help reduce your environmental impact.

Features

  • Full colour printing
  • Utilises pigment inks, providing waterproof and lightfast performance
  • High speed output, up-to 92 mm/sec
  • Flexible media options
  • High Reliability with low maintainence
  • Full Cut paper cutter
  • 12 Months Return to Base Warranty

Specifications
Physical Characteristics
Dimensions270 (w) x 255 (h) x 255 (d)mm
Weight10.0 Kg
Environmental Characteristics
Operating Temperature10įC to 35įC
Operating Humidity20 to 80% (Non-Condensing)
Print Engine
Print methodSerial Inkjet, 3-colour printing (CMY)
Print Resolution360 x 180 DPI High Speed
360 x 360 DPI Fine Mode
720 x 360 DPI Super Fine Mode
Print SpeedUpto 96mm/s (High Speed Mode, 56mm Print Width)
BarcodesMust be sent as graphic data
Interface
OptionsUSB or Ethernet
Paper Specifications
Paper TypeNormal paper, Fine paper, PET film, Artificial paper, List band
Paper FormatReceipt (with/without black marks), Label roll paper, Die-cut label paper (with/without black marks), List band
Paper FormRoll Paper, Fanfold
Media Width30mm to 108mm
Thickness0.085 to 0.195mm (Dependant on Media Selected)
Ink Cartridge
TypeSJIC 15P (3-colour CMY pigment ink)
Capacity3,700 coupons approx.(Print area 50 ◊ 178mm, coverage of each colour on the page: 25% [Total 676,000 shots], when printing in 360dpi ◊ 180dpi)
Power
Input24VDC +/- 10% *
Consumption26 watts Operating
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Epson TM-C3400
9-5016-080-9 TM-C3400-USB Inkjet Label Printer with USB interface $1,694.00 G
9-5016-081-6 TM-C3400-ETH Inkjet Label Printer with Ethernet Interface $1,947.00 G
[B] Consumables - Ink
9-9302-110-5 TM-C3400-IK Epson Ink Cartridge for C3400 - Color $123.20 C
[C] Consumables - Media
Normal Roll Paper
To Be Advised
