Epson - TM-Series
Intelligent POS Thermal Printers

The Epson TM-i series printers provide users with a straight forward and elegant printing solution, with no need for drivers. Ideal for use with tablet PCs or mobile phones, the TM-i printers are simple to use and maintain, with the ability to print from any device running an HTML 5 compatible web browser.

The Epson TM-i series printers provide convenient and straight-forward printing directly from tablet PCs and other mobile devices, without the need for drivers, so a LAN or WLAN connection is all that is required. In fact, the TM-i series printers can print from any device that is running a popular web browser, such as Safari, Chrome, Internet Explorer and the standard Android browser.

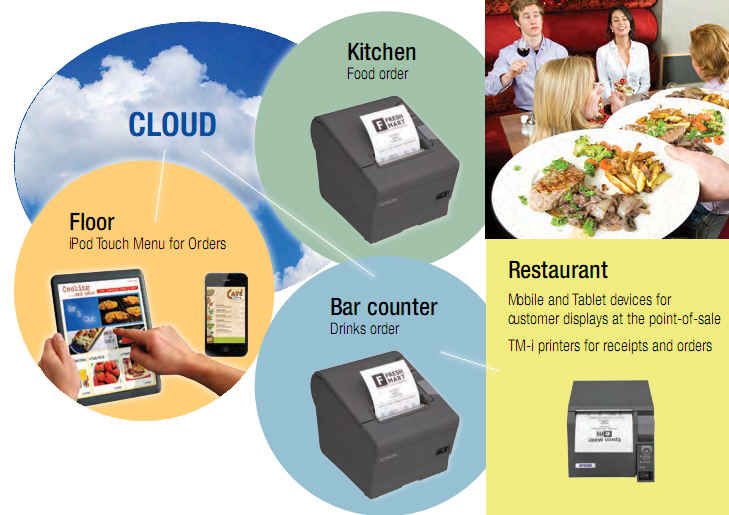

Using a unique built-in intelligence called ePOS-Print, the TM-i series are able to receive XML commands from web applications in addition to communicating directly with HTML 5 browsers. This makes the TM-i series printers ideal for restaurants, hotels and bars using tablet PCs or mobile phones for ordering. These printers can also control cash drawers, as well as additional printers with a wired or wireless UIB interface, such as order-driving kitchen printers. Additionally, users can switch between applications without changing printer settings, and are also able to configure the printer from these mobile devices.

The TM-i series printers are ideal for businesses that require a stable system that is cost-effective to implement and maintain. With no drivers to update and no need for a permanent connection to a PC or server, servicing and trouble-shooting are simple. In addition, fewer pieces of equipment mean less power consumption, reducing bills and environmental impact.

Features

  • Built-in intelligence for compatibility with web applications
  • Print directly from HTML 5 browsers
  • ePOS-Print: understand the XML command requirements from web applications
  • No drivers to install or update
  • TMNet WebConfig allows smooth configuration of the printers to print via tablet PCs
  • Easy maintenance with no PC required to control the printers
  • Add logos and images to materials
  • Two year warranty

Specifications

Physical Characteristics
Dimensions148 (h) x 145 (w) x 195 (d) mm
Weight1.6Kg
CutterPartial Cut
Environmental Characteristics
Operating Temperature5C to 45C
Storage Temperature-10C to 50C
Humidity

10 - 90% Relative Humidity (Excluding Paper)

Electrical Characteristics
Power Supply24 V DC +/- 7%
Power ConsumptionHigh Speed: 1.8A Std. - 7.7A Peak (Approx. @ 24 V)
Low Power: 1.2A Std. - 6.6A Peak (Approx. @ 24 V)
Printing Characteristics
Print MethodThermal Line Printing
Print Resolution180 dpi x 180 dpi
Feed MethodFriction Feed
Print Width72 mm (512 Dot Positions)
Characters
per Line
Font A: 42
Font B: 56
Character SpacingFont A: 0.28 mm
Font B: 0.28 mm
Character SizeFont A: 1.41 x 3.39 mm Standard
Font B: 0.99 x 2.40 mm Standard
Font A: 1.41 x 6.77 mm Double Height
Font B: 0.99 x 4.80 mm Double Height
Font A: 2.82 x 3.39 mm Double Width
Font B: 1.98 x 2.40 mm Double Width
Font A: 2.82 x 6.77 mm Double Height & Width
Font B: 1.98 x 4.80 mm Double Height & Width
Print SpeedHigh Speed: 300 mm/s Max.
Low Power: 100 mm/s Approx.
Barcodes: 50 mm/s Approx.
Paper Feed Speed300 mm/s Max. Continuous Paper Feed
Line Spacing4.23 mm (Default)
Character StructureFont A: 12 x 24
Font B: 9 x 17
Media Specifications
Size79.5 mm Wide x 83 mm Diameter Max.
Core SizeInside: 12 mm, Outside: 18 mm
TypeThermal or Dual Thermal
Interface
StandardCentronics Parallel or RS-232 Serial, both with USB
OptionalRS-232 High Speed, RS-435, 10/100 Base-T/TX Ethernet, IEEE 802.11b Wireless
Cash Drawer2 Drawers
Memory
Data Buffer4Kb or 45 Bytes (Selectable)
Bitmap Image Buffer256K (Non Volatile)
Page Mode Area106K
Life
Mechanism20,000,000 Lines
Thermal Head100,000,000 Pulses / 100Km
Auto Cutter2,000,000 Cuts
MTBF360,000 Hours
Safety and Regulatory
EMI StandardFCC, VCCI, CE marking, AS/NZS CISPR22 class A, GOST-R
Safety StandardsUL/CSA/EN/TV/GOST-R
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Epson TM-T88V-i with Power Supply
C31CA85798 TM-T88Vb-i Intelligent Thermal Printer with I/F, Web Server, ePOS print (inc P/S) Black #N/A I
[B] Epson TM-T70-i with Power Supply
C31C637766 TM-T70b-i Intelligent Thermal Printer with I/F, Web Server, ePOS print (inc P/S) Black $946.00 I
[C] Epson TM-T82-i with Power Supply
C31CD52345 TM-T82IIIdg-i Intelligent Thermal Printer with I/F, Web Sevver, ePOS print (inc P/S) Dark Grey $671.00 I
[D] Options
9-5019-130-8 OT-WL01-732 Wireless USB Interface for TM-I Series $264.00 G
[E] Consumables
9-9080-586-5 PR8080T/24 Thermal Paper Roll 80mm(w) x 80mm(d) (pk 24) $55.00 1
9-7080-050-1 CA005 Clean-Penn (each) $11.00 5
9-9660-004-7 L75X32000D0H-B1 Label DT 75 mm x 32 m with Slit (ie. Continuous label) $13.20 C
Epson TM-T88V
Epson TM-T70
