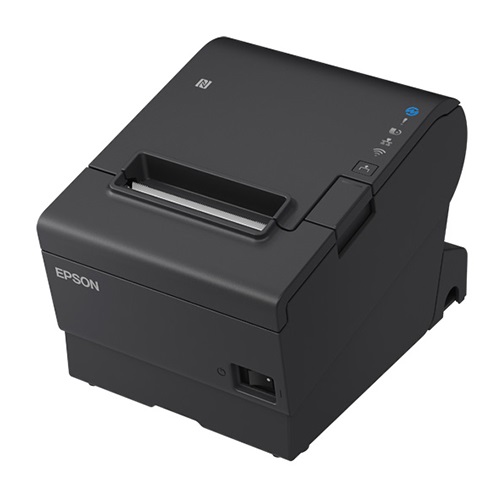

Epson - TM-T88 MkVII POS Thermal Printer

	Designed to meet the high speed requirements of coupon and clean receipt printing for retail and hospitality environments, the TM-T88 MkVII raises the performance of high speed printing with a print speed of 500mm a second, making it the fastest thermal printer in its class. A highly reliable printer, the TM-T88VII permits bar code printing and is capable of printing characters that can be scaled up to 64 times as large as the standard printing size. The printers Non-Volatile Ram allows the TM-T88VII to permanently store bitmap images for quick, professional docket printing. The TM-T88VII gives retailers the ability to print clean receipts or coupons quickly and its partial cut delivery makes it easy to present to the customer. The TM-T88VI is supplied standard with both a USB port and an Ethernet port and still allows the use of the Epson Standard UB Series modular interface boards. This 3rd port can be Bi-directional Parallel, Serial or Powered USB, plus a USB WPA3 Wireless option. Features High-speed printing of 500mm/sec. Same fast print speed for both text and graphics Ease-of-use features including drop-in paper loading, long-lasting autocutter andInterfaces Options USB and Ethernet Standard, other interface options available Four year warranty

Designed to meet the high speed requirements of coupon and clean receipt printing for retail and hospitality environments, the TM-T88 MkVII raises the performance of high speed printing with a print speed of 500mm a second, making it the fastest thermal printer in its class. A highly reliable printer, the TM-T88VII permits bar code printing and is capable of printing characters that can be scaled up to 64 times as large as the standard printing size. The printers Non-Volatile Ram allows the TM-T88VII to permanently store bitmap images for quick, professional docket printing.

The TM-T88VII gives retailers the ability to print clean receipts or coupons quickly and its partial cut delivery makes it easy to present to the customer.

The TM-T88VI is supplied standard with both a USB port and an Ethernet port and still allows the use of the Epson Standard UB Series modular interface boards. This 3rd port can be Bi-directional Parallel, Serial or Powered USB, plus a USB WPA3 Wireless option.

Features

High-speed printing of 500mm/sec.
Same fast print speed for both text and graphics
Ease-of-use features including drop-in paper loading, long-lasting autocutter andInterfaces Options
USB and Ethernet Standard, other interface options available
Four year warranty

Specifications

	Physical Characteristics
Dimensions	148 (h) x 145 (w) x 195 (d) mm
Weight	1.7Kg
Cutter	Partial Cut
	Environmental Characteristics
Operating Temperature	5°C to 45°C
Storage Temperature	-10°C to 50°C
Humidity	10 - 90% Relative Humidity (Excluding Paper)
	Electrical Characteristics
Power Supply	24 V DC +/- 7%
Power Consumption	operating: 28.6W Max. 1.4W
	Printing Characteristics
Print Method	Thermal Line Printing
Print Resolution	180 dpi x 180 dpi
Feed Method	Friction Feed
Print Width	72 mm (512 Dot Positions)
Characters per Line	Font A: 42 Font B: 56
Character Spacing	Font A: 0.28 mm Font B: 0.28 mm
Character Size	Font A: 1.41 x 3.39 mm Standard Font B: 0.99 x 2.40 mm Standard Font A: 1.41 x 6.77 mm Double Height Font B: 0.99 x 4.80 mm Double Height Font A: 2.82 x 3.39 mm Double Width Font B: 1.98 x 2.40 mm Double Width Font A: 2.82 x 6.77 mm Double Height & Width Font B: 1.98 x 4.80 mm Double Height & Width
Print Speed	500 mm/s
Paper Feed Speed	500 mm/s
Line Spacing	4.23 mm (Default)
Character Structure	Font A: 12 x 24 Font B: 9 x 17
	Media Specifications
Size	79.5 mm Wide x 83 mm Diameter Max.
Core Size	18 mm
Type	Thermal
	Interface
Standard	USB and Ethernet
Optional	UB Interface Slot: RS-232, Powered USB, Parallel USB Dongle: WiFi Wireless, WPA3
Cash Drawer	2 Drawers
	Memory
Data Buffer	4Kb or 45 Bytes (Selectable)
Bitmap Image Buffer	384K (Non Volatile)
	Life
Mechanism	20,000,000 Lines
Thermal Head	20,000,000 Printing lines / 200Km
Auto Cutter	3,000,000 Cuts
MTBF	360,000 Hours

**Ordering Information and Pricing**
Part Number	Model Number	Description	RRP Inc GST	T %
[A] Epson TM-T88VII with Power Supply & Interface Cable- Black
C31CJ57622	TM-T88VIIg-UEP	TM-T88VII Built-in Ethernet, Parallel & USB, dark grey - Inc IEC Power Cable and USB Cable	#N/A	C2
C31CJ57612	TM-T88VIIg-UES	TM-T88VII Built-in Ethernet, Serial & USB, dark grey - Inc IEC Power Cable and USB Cable	#N/A	C2
Related Option
9-5019-130-8	OT-WL01-732	Wireless USB Interface for TM-I Series	#N/A
[B] Accessories
9-5019-020-2	WH-10-040	Wall Mount Bracket for TM Series	$99.00	A
9-5019-011-3	PS180	PowerSupply	#N/A	A
C32C891324		EPSON WIFI DONGLE TM-M30II/TM-T82III/TM-T88VII	$110.00	C2
[C] Cable Assemblies
2-6088-020-0	CA6088-2	Serial D9 Skt to Printer (2m)	$8.80	U1
2-5101-020-4	CA101-2	Serial D25 to Printer	$8.80	A
2-5102-020-9	CA102-2	Parallel Print Cbl 2M	$8.80	A
2-6270-020-5	CA6270-2	USB 2.0 Cable A/B, Black - 2m	$7.70	A
2-6310-020-2	CA6310-2	USB Cable A/B, Black - 2m	$0.00	C
2-5199-020-0	CA199-2	IEC Power C13 to AU 3 pin Plug	$8.80	A
[D] Consumables
9-9080-586-5	PR8080T/24-PREM	Thermal Paper Roll 80mm(w) x 80mm(d) (pk 24) - PREMIUM	$60.50	B
9-7080-050-1	CA005/1	Clean-Penn	$11.00	A
9-9660-004-7	L75X32000D0H-B1	Label DT 75 mm x 32 m with Slit (ie. Continuous label)	$0.00	C
