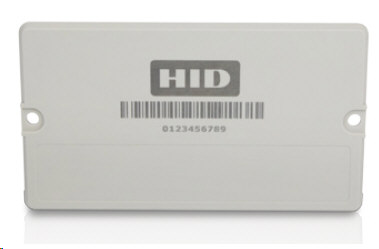

HID - InLine Tag Plate
RFID Tag


HID Global InLine Tag Plate UHF transponders are the ideal solution for tagging shipping containers or similar assets. 3.7 mm thick, these tags mount flush to any surface. The high impact polycarbonate housings shield internal components from the environmental extremes and rugged treatment of industrial freight operations.

Standard grey InLine Tag Plates provide excellent contrast for imprinting. HID can also produce plates in any color you choose. The large surface accommodates embossing, laser-engraving or adhesive labels for a logo, barcode, serial number or text message.

Tough and versatile, InLine Tag Plate transponders are appropriate for mounting on metal, plastic or wood using standard nails, screws or industrial adhesives.

InLine Tag Plates improve data collection speed and accuracy for logistics applications, while making tracking more cost-effective. UHF technology enables anti-collision functionality, fast data-rate communication and password data protection for precise, reliable tracking and updating. The plates can be read from distances of up to 7 m, and are compliant with EPC global-certified UHF Class 1 Gen 2 readers and modules.

The Dual Frequency InLine Plate "Trusted Tag" version allows flexibility for use with both automatic UHF distance machine reading, as well as direct personal interfacing with an operators NFC capable Phone.

Features

  • Fully inter-operable, standards compliant
  • High Impact PC/ABS housing
  • Waterproof, chemical and impact resistant
  • Fixation options include nails, screws, and glues
  • Dual Frequency "Trusted Tag" version available
  • Options to mount to any surface: Metal, Plastic, Wood, etc

Specifications

Physical Characteristics
Dimensions 120 mm × 68 mm × 3.7 mm
Weight 27g
Housing Material PC/ABS High Impact
Colour Pantone warm gray 2U
Others available on special request
Mounting Method Glue, nail or screw
Environmental Characteristics
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
Ingress Protection IP69K (80°C)
Shock IEC 68.2.29 (40 g, 18 ms, 6 axis, 2000 times)
Vibration IEC 68.2.6 (10 g, 10 to 2000 Hz, 3 axis, 2.5 h)
Withstands Exposure To Mineral oil, petroleum, salt mist, vegetable oil
Axial/Radial Force 500 N, 10 sec
Impact IEC 62262-IK06
Water Press Extraction (set point) 100 bars
Communication Characteristics
Chip Type Monza 4E EM4423
Operating Frequency 860 MHz - 960 MHz (Off Metal)
915 MHz (On Metal)
860 MHz - 960 MHz (Off Metal)
13.56 MHz NFC
Read Distance Up to 7 m (Off Metal)
Up to 5.5 m (On Metal)
Up to 4 m (Off Metal)
Up to 50 mm (NFC)
Chip Features
Memory 96 bit EPC + 64 bit TID 1920 bit user
ISO Standards UHF EPC Class 1 Gen 2, ISO 18000-6C, ISO 17364 UHF EPC Class 2 Gen 2, ISO 18000-63, ISO 14443A - NFC Tag Type 2
Customization
Options Custom colors. Embossing or laser-engraving of logo, barcode or text. (Standard tags have no laser-engraving.)


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] HID - InLine Tag Plate
UHF (On Metal)
6C698B InLine Tag Plate 120x68x3.7mm OM (M4E) $7.92 A6
UHF/HF (Dual Frequency) (On Plastic only)
6H698C HID In-Line Plate, UHF+HF (EM4423) - On Plastic Only $10.01 A6
