HID - SlimFlex Seal
UHF RFID Tag


HID Global SlimFlex Seal Tag transponders are ideal for sealing industrial containers – bags, bins or boxes – preventing unauthorized access to contents while in storage or during distribution. Seal Tag units integrate powerful RFID chips with high durability components, and secure, tamper-evident cable ties.

High visibility Seal Tag units enable assignment of a unique electronic identifier to each securely fastened container. To access a sealed container’s contents requires severing the cable tie or breaching of the container itself, either incursion providing clear evidence of tampering.

Anti-collision technology enables fast, comprehensive inventories and real-time tracking during distribution and receiving, resulting in faster, more accurate accounting for regulatory reporting or stock planning.

Containers with UHF Seal Tag closures can be identified from up to 26 ft (8 m) , enabling entire loads of sealed containers to be read as trucks pass through stationary readers. HF Seal Tags can be identified and updated with handheld readers and ISO 15693 compatible NFC devices.

Seal Tag RFID tags are waterproof and food compatible. They withstand rugged outdoor use, providing high resistance to aggressive liquids and UV rays, and delivering reliable performance and reading stability at high and sub-freezing temperatures.

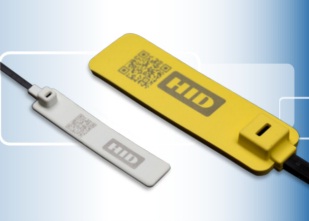

Seal Tag units attach anywhere a cable tie can be used. Thermoplastic elastomer (TPE) housings tolerate repeated bending or torsion, while maintaining excellent performance characteristics. The yellow tag color provides excellent contrast for optical identification, and may be laser engraved or embossed with logos, barcodes or text.

Features

  • Fully interoperable, standards compliant
  • Bendable TPE housing with integrated cable tie
  • Waterproof; resistant to chemicals, impact and UV rays
  • HF 13.56 MHz version readable with ISO/IEC 15693 compatible devices
  • ƒBroadband UHF version for worldwide use at 860 to 960 MHz
  • ƒFully interoperable, standards compliant
  • Food compatible
  • ƒLarge user memory

Specifications

  Slimflex Seal HF Slimflex Seal UHF Slimflex Seal UHF Mini
Physical Characteristics
Dimensions TAG: 85 mm × 25 mm × 3 mm
Cable Tie: 380mm x 6mm x 2mm
TAG: 60 mm × 12 mm × 2 mm
Cable Tie: 2000mm x 2.5mm x 1.mm
Weight 12g 2.2g
Housing Material TAG: TPE
Cable Tie: Nylon 6.6
Colour Tag: Yellow, Cable Tie: Black Tag: White, Cable Tie: Black
Mounting Method Integrated Cable Tie
Environmental Characteristics
Operating Temperature -40°C to +70°C
Storage Temperature -40°C to +70°C
Ingress Protection IP68 (20°C, Water Immersion for 24 Hours to 1m)
Shock/Fatigue -40° to +90° C, 100 x 5 min with 30 sec transition
Mechanical Resistance Vibration: IEC 68.2.6 (10g, 10…2000Hz, 3 axis, 2.5h)
Shock: IEC 68.2.29 (40g, 18ms, 6 axis, 2000 times)
Axial / Radial Force: 1000 N, 10 sec
Cable Tie Pull Resistance: >550 N Cable Tie Pull Resistance: >65 N
Axial/Radial Force 1000 N, 10 sec
Tag Bending 150 mm curve radius
Communication Characteristics
Operating Frequency 13.56 MHz 860 MHz - 928 MHz (Worldwide)
Chip Type I-Code SLIx Higgs 3
Read Distance Up to 50mm Up to 8 m Up to 5 m
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] HID - In Slimflex Seal Tags
HF Slimflex Seal
9-9860-181-3 729990-202 SlimFlex Seal Tag - HF (SLIx) $5.50 C
UHF Slimflex Seal
9-9860-180-1 798990-202 SlimFlex Seal Tag - UHF (H3) $5.17 C
UHF Slimflex Seal Mini
9-9860-182-2 69899A-202 SlimFlex Seal Tag - UHF Mini (H3) $5.28 C
