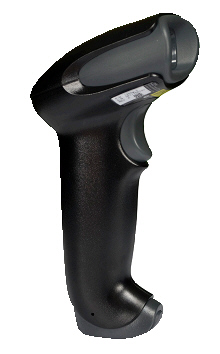

Honeywell - Voyager 1250g
Hand Held Bar Code Reader


Building on the legacy of the world-renowned Voyager™ series of scanners, Honeywell’s Voyager 1250g single-line laser scanner provides a superior out-of-box experience and aggressive reading of linear bar codes, including larger bar codes up to 23 inches away.

Optimized for fast scanning of linear bar codes, including poorly printed and damaged codes, the Voyager 1250g allows enterprises to minimize manual data entry, leading to increased productivity and reduction in errors. The ability to read distant bar codes improves worker comfort as cashiers reach to scan items in the bottom of carts, and inventory takers scan out-of-reach products on shelves.

This plug and play scanner incorporates a multi-interface design with automatic interface detection. Simply plug the cable into the host system and the Voyager 1250g will automatically configure itself to the appropriate interface, shortening the installation process. For users who require hands-free scanning, the stand can be assembled quickly and easily.

Features

  • Exceptional Read Performance for damaged or poorly printed barcodes
  • Fully Programmable
  • Fast Decode Rate
  • Light weight and comfortable to hold
  • Extended Depth of Field
  • Kits include Hands Free Stand
  • 5 Year return to base warranty

Specifications

Mechanical
Dimensions 168 mm L x 60 mm W x 74mm H
Weight 138 g
Environmental
Operating Temp. 0 to 40° C
Storage Temp. -20 to 60° C
Relative Humidity 5% to 95% (non-condensing)
Shock Upto 30 1.5m drops onto concrete
Environmental Sealing IP41
Electrical
Voltage Range 5.0 VDC ±5%
Operating Current (typical) 700 mA(typical)
Standby Current (typical) 85 mA(typical)
Optical
Scan Pattern Single Line Laser
Scan Speed 100 scan lines per second
Scan Angle ±30°
Ambient Illumination 0 - 75,000 lux
Print Contrast Ratio 20% minimim difference
Read Distance Upto 447 mm
Symbologies Reads standard 1D and GS1 DataBar symbologies
Communications
Interfaces Supported USB (HID Keyboard, Serial, IBM OEM), RS232 (TTL + 5V, 4 signals), Keyboard Wedge, RS-232C (± 12V), IBM RS485 supported via adapter cable

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Honeywell Voyager 1200g Kits, Black (Includes Stand)
1250G-2USB-1 1250g-2USB-1 USB Kit: 1D, black scanner (1250g-2), flex neck presentation stand (STND-15F03-009-4), USB Type A 3m coiled cable (CBL-500-300-C00) and documentation $231.00 H
1250G-2KBW-1 1250g-2KBW-1 KBW Kit: 1D, black scanner (1250g-2), flex neck presentation stand (STND-15F03-009-4), KBW PS2 5V Power 3m coiled cable (CBL-720-300-C00) and documentation $231.00 H
[B] Spare Cables
CBL-500-300-C00 Cable: USB, black, Type A, 3m (9.8´), coiled, 5V host power $26.40 H
CBL-720-300-C00 Cable: KBW, black, PS2, 3m (9.8´), coiled, 5 V external power with option for host power $26.40 H
CBL-120-300-C00 Cable: RS232C (+/-12V signals), black, DB9 Female, 3m (9.8´), coiled, 5V external power with option for host power on pin 9 $26.40 H
CBL-420-300-C00 Cable: RS232 (5V signals), Honeywell Bioptic Stratos Aux, black, 10 pin modular, 3m (9.8´), coiled, host power possible (dependent upon scanner and Stratos models) $26.40 H
CBL-500-300-S00 Swivel Mount Shoulder Strap $26.40 H
CBL-503-300-C00 Cable: USB, black, 12V locking, 3m (9.8´), coiled, 5V host power $49.50 H
CBL-020-300-C00 Cable: RS232 (5V signals), black, DB9 Female, 3m (9.8´), coiled, 5V external power with option for host power on pin 9 $26.40 H
CBL-500-500-C00 Cable: USB, black, Type A, 5m (16.4´), coiled, 5V host power $26.40 H
[C] Accessories
STND-15F03-009-4 Stand: gray, 15cm (6´) flexible rod, weighted mid-sized universal base, Voyager 1250 cup $36.30 H
HOLDER-009-U Holder: Universal holder (desk or wall) $26.40 H
[D] Power Supply (Needed for Serial Cable)
46-00528 PS5VRS1000W Power Supply: AU plug, 1.0A @ 5.2VDC, 90-255VAC @ 50-60Hz $47.30 H
