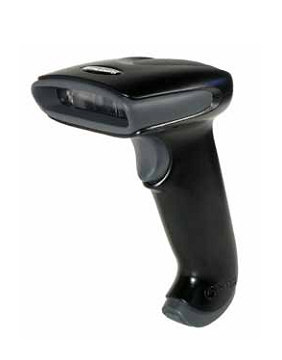

Honeywell - Hyperion 1300g Hand Held Bar Code Reader


Featuring an ideal balance of performance, durability and ergonomics, the Hyperion 1300g provides years of hassle-free scanning, especially in scan-intensive or light industrial applications.The Hyperion 1300g delivers outstanding linear imaging performance and versatility. Fast intuitive bar code reading out to 18 inches (457mm), and high density bar code reading are both enabled in a single device, eliminating the need to purchase specialty scanners.

With no moving parts to wear out, the Hyperion 1300g is one of the toughest general duty scanners on the market. Designed to keep your operation running smoothly, the Hyperion 1300g is durable enough to hammer nails.

The Hyperion 1300g is the ideal choice for customers who value aggressive scan performance and durability in a general duty hand-held linear scanner.

Features

  • Superior Hand-Held Scanning
  • Fully Programmable
  • Fast Decode Rate
  • Class-Leading Durability
  • Light weight and comfortable to hold
  • 5 Year return to base warranty

Specifications

Mechanical
Dimensions 112 mm L x 79 mm W x 150 mm H
Weight 160 g
Environmental
Operating Temp. 0 to 50 C
Storage Temp. -40 to 60 C
Relative Humidity 0% to 95% (non-condensing)
Shock Upto 50 1.5m drops onto concrete
Environmental Sealing IP41
Electrical
Voltage Range 5.0 VDC 5%
Operating Current (typical) 200 mA(typical)
Standby Current (typical) 125 mA(typical)
Optical
Scan Pattern Single Line Red LED Illumination
Scan Speed 270 scan lines per second
Scan Angle 30
Ambient Illumination 0 - 30,000 lux
Print Contrast Ratio 20% minimim difference
Read Distance 10 mm to 660 mm
Symbologies Reads standard 1D and GS1 DataBar symbologies
Communications
Interfaces Supported RS232 (TTL +5V, 4 Signals), KBW, USB(HID Keyboard, Serial, IBM OEM)
RS-232C (+/-12V) and IBM RS485 supported via adapter cable

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Honeywell Hyperion 1300g Kits, Ivory
1300G-1USB 1300g-1USB USB Kit: 1D, ivory scanner (1300g-1), USB Type A 3m straight cable (CBL-500-300-S00) and documentation $253.00 H
1300G-1KBW 1300g-1KBW KBW Kit: 1D, ivory scanner (1300g-1), KBW PS2 5V Power 3m coiled cable (CBL-720-300-C00) and documentation $253.00 H
[B] Honeywell Hyperion 1300g Kits, Black
1300G-2USB 1300g-2USB USB Kit: 1D, black scanner (1300g-2), USB Type A 3m straight cable (CBL-500-300-S00) and documentation $253.00 H
1300G-2KBW 1300g-2KBW KBW Kit: 1D, black scanner (1300g-2), KBW PS2 5V Power 3m coiled cable (CBL-720-300-C00) and documentation $253.00 H
[C] Honeywell Hyperion 1300g Head Only
1300G-1 1300g-1 Scanner only: 1D, ivory, RS232/USB/KBW/IBM $231.00 H
1300G-2 1300g-2 Scanner only: 1D, black, RS232/USB/KBW/IBM $231.00 H
[D] Spare Cables
CBL-500-300-C00 Cable: USB, black, Type A, 3m (9.8), coiled, 5V host power $26.40 H
CBL-720-300-C00 Cable: KBW, black, PS2, 3m (9.8), coiled, 5 V external power with option for host power $26.40 H
CBL-120-300-C00 Cable: RS232C (+/-12V signals), black, DB9 Female, 3m (9.8), coiled, 5V external power with option for host power on pin 9 $26.40 H
CBL-420-300-C00 Cable: RS232 (5V signals), Honeywell Bioptic Stratos Aux, black, 10 pin modular, 3m (9.8), coiled, host power possible (dependent upon scanner and Stratos models) $26.40 H
CBL-500-300-S00 Swivel Mount Shoulder Strap $26.40 H
CBL-503-300-C00 Cable: USB, black, 12V locking, 3m (9.8), coiled, 5V host power $49.50 H
[E] Accessories
STND-23R03-0064
STND-25F03-0074
STND-30R03-0064
HOLDER-005-W
[F] Power Supply (Needed for Serial Cable)
46-00528 PS5VRS1000W Power Supply: AU plug, 1.0A @ 5.2VDC, 90-255VAC @ 50-60Hz $47.30 H
