Honeywell Dolphin CT60
Hand Held PC

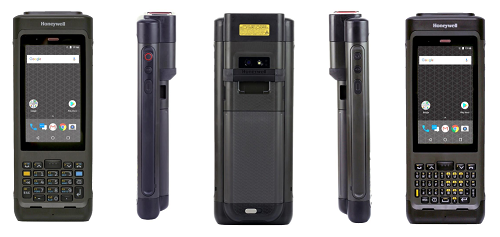

The Honeywell CN80 mobile computer is designed for enterprises that require anywhere, anytime, real-time connectivity to business-critical applications and fast data capture capabilities in a highly durable, long-lasting form factor built for maximum up-time and productivity out in the field or on the selling floor. Built on the Mobility Edge platform, the Dolphin CN80 mobile computer offers an integrated, repeatable, and scalable approach based on a common hardware and software platform and designed to bridge the gap between legacy Windows keypad based devices and the new full screen Android computers of today's age. This unleashes customers from constraints faced today around integration and inflexible technologies without sacrificing enterprise security, reliability, performance, or management features.

The CN80 mobile computer offers both a large touchscreen and a choice of numeric or QWERTY keypad, allowing users to pick the best input method for their environment today, and also be ready for the touch-centric applications of the future.

Juggling multiple devices across the enterprise introduces time- and cost-intensive complexities for Enterprise IT to manage and maintain. The Mobility Edge platform enables customers to accelerate provisioning, certification, and deployment across the enterprise. The CN80 mobile computer offers an extended product lifecycle across five generations of Android to maximize return on customer investment and provide a lower overall TCO. Its validated by Android Enterprise Recommended, a Google-led initiative that helps businesses confidently select, deploy, and manage the Android devices and services best suited to their enterprise needs.The ultra-rugged CN80 mobile computer features a fast processor, advanced network connectivity, and enhanced 1D/2D scanning plus extended battery life lasting twice as long as previous generations to keep workers connected and productive throughout multiple shifts. The large, vivid, 106.7 mm (4.2 in) touchscreen display can be read easily indoors and out and used with finger, glove, or stylus making it ideal for warehouse, cold storage, field mobility, and otherchallenging environments.

Features

  • Qualcomm Snapdragon Octa-core CPU
  • Rugged Form Factor with full 23 or 40 key Keypad support
  • Common Mobility Edge hardware platform and enterprise lifecycle tools
  • Smart Battery Technology for full shift Operation
  • 12 Month Warranty with extended Support Options

Specifications

Physical Characteristics
Dimensions
204-205mm (l) x 78mm (w) x 33-39mm(d)
EX20 Long range reader version is larger
Weight
500-550g
Environmental Characteristics
Operating Temperature
-20 to 50C
Storage Temperature
-30C to 70C
Humidity
0 to 95% (Non-Condensing)
Drop Protection
3.0 m (10 ft) to concrete at room temp per MIL-STD 810G
1.8 m (6 ft) to concrete at -10C to 50C temperature range
1.6 m (5 ft) to concrete down to -20C
Tumble
Exceeds 2,000 (1.0m) tumbles per IEC 60068-2-32 specifcation
ESD
8kV Direct, 15kV Air
Environmental Protection
Independently certified to meet IP67 and IP65 standards for moisture and particle intrusion
Hardware
Processor
Qualcomm Snapdragon 801 2.2GHz 660 Octa-core
Display
106.7 mm (4.2 in), 854 x 480 High Definition, LED Backlight, Multi-touch Capacitive Touchscreen
Keys
40-key QWERTY keypad or 23-key numeric function keypad, plus dual side scan triggers, volume up/down, camera, power onscreen keypad
Memory
3 GB/4 GB DDR4 RAM, 32 GB Flash, micro SD slot (For upto 512GB memory card)
Power
3.85V 5800mAh LiIon Main Battery
Run Time
Multiple Shifts
Radio's
WWAN: 4G Radio (ATT/VZW/SPRINT/TMO/NA/EU) with two micro-SIM slots
LTE Advanced Support with Up to 400 Mbps CAT13 LTE downlink, Up to 75 Mbps CAT5 LTE uplink
LTE (FDD) Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 19, 20, 25, 26, 28, 29
LTE (TDD) Bands 38, 39, 40, 41
UMTS/HSPA+ (3G) Bands 1, 2, 4, 5, 6, 8, 9, 19
GSM/GPRS/EDGE Quad-Band (850/900/1800/1900 MHz)
1xRTT/EV-DO Bands BC0, BC1, BC10 (B26 BW)
WLAN: EEE 802.11 a/b/g/n/ac radio, Security: OPEN, WEP, WPA/WPA2 (Personal and Enterprise)
NFC
Bluetooth: V5.0 Bluetooth Class 1.5 and BLE Supported
Camera
13-megapixel color camera, 4K video with image stabilization, and advanced software features for enhanced exposure control
Barcode Option
Honeywell N6603ER Imager or EX20 Near/Far Imager
Indicators
RGB LED, Vibrator
Sensors
Ambient light sensor, proximity sensor, accelerometer, gyroscope, magnetometer, pressure sensor
Operating Environment
Operating System Options
Android 7.1.1 Nougat,
Android 8.1 Oreo
Android 9.0
(system compatibility through Android Q)
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Honeywell CN80 WiFi Only Hand Held Computer
CN80-L0N-1EC120A CN80 / 3GB / 32GB / Numeric / 6603ER Extended Range Imager / Camera / 802.11abgn,ac / WLAN / Bluetooth / Android GMS / Client Pack / Std Temp / ANZ & Argentina 3388 H
CN80-L0N-1EN122A CN80 / 3GB / 32GB / Numeric / 6603ER Extended Range Imager / No Camera / 802.11abgn,ac / WLAN / Bluetooth / Android GMS / Client Pack / Cold Storage / ANZ & Argentina 3872 H
CN80-L0N-1MC120A CN80 / 3GB / 32GB / Numeric / EX20 Near Far Imager / Camera / 802.11abgn,ac / WLAN / Bluetooth / Android GMS / Client Pack / Std Temp / ANZ & Argentina 3916 H
CN80-L0N-1MN122A CN80 / 3GB / 32GB,Numeric / EX20 Near Far Imager / No Camera / 802.11abgn,ac / WLAN / Bluetooth / Android GMS / Client Pack / Cold Storage / ANZ & Argentina 4389 H
CN80-L0N-2EC120A CN80 / 3GB / 32GB / QWERTY / 6603ER Extended Range Imager / Camera / 802.11abgn,ac / WLAN / Bluetooth / Android GMS / Client Pack / Std Temp / ANZ & Argentina 3388 H
CN80-L0N-2EN122A CN80 / 3GB / 32GB / QWERTY / 6603ER Extended Range Imager / No Camera / 802.11abgn,ac / WLAN / Bluetooth / Android GMS / Client Pack / Cold Storage / ANZ & Argentina 3872 H
CN80-L0N-2MC120A CN80 / 3GB / 32GB / QWERTY / EX20 Near Far Imager / Camera / 802.11abgn,ac / WLAN / Bluetooth / Android GMS / Client Pack / Std Temp / ANZ & Argentina 3916 H
CN80-L0N-2MN122A CN80 / 3GB / 32GB / QWERTY / EX20 Near Far Imager / No Camera / 802.11abgn,ac / WLAN / Bluetooth / Android GMS / Client Pack / Cold Storage / ANZ & Argentina 4389 H
[B] Honeywell CN80 WiFi and 4G Hand Held Computer
CN80-L1N-1EC110A CN80 / 3GB / 32GB / Numeric / 6603ER Extended Range Imager / Camera / 802.11abgn,ac / WWAN / Bluetooth / Android GMS / No Client Pack / Std Temp / ANZ & Argentina 3630 H
CN80-L1N-2EC110A CN80 / 3GB / 32GB / QWERTY / 6603ER Extended Range Imager / Camera / 802.11abgn / WWAN / Bluetooth / Android GMS / No Client Pack / Std Temp / ANZ & Argentina 3630 H
CN80-L1N-5EC110A CN80 / 4GB / 32GB / Numeric / 6603ER Extended Range Imager / Camera / 802.11abgn,ac / WWAN / Bluetooth / Android GMS / No Client Pack / Std Temp / ANZ & Argentina 3817 H
CN80-L1N-5EC210A CN80 / 4GB / 32GB / Numeric / 6603ER Extended Range Imager / Camera / 802.11abgn,ac / WWAN / Bluetooth / Android non-GMS / No Client Pack / Std Temp / ANZ & Argentina 3817 H
CN80-L1N-6EC110A CN80 / 4GB / 32GB / QWERTY / 6603ER Extended Range Imager / Camera / 802.11abgn,ac / WWAN / Bluetooth / Android GMS / No Client Pack / Std Temp / ANZ & Argentina 3817 H
Singe Bay Charging Kit (Includes PCU, Requires IEC Cable)
CN80-HB-CNV-0 CN80 home base for one device and one battery. Includes power supply, and no power cord 451 H
CN80-EB-CNV-0 CN80 Ethernet/charge base for one device and one battery with battery charger, power supply, and no power cord 627 H
2-5199-020-0 CA199-2 IEC Power C13 to AU 3 pin Plug - 2m $11.00 U1
Quad Bay Charging Kit (Includes PCU, Requires IEC Cable)
CN80-CB-CNV-0 CN80 4 BAY CHARGE BASE with power supply and no power cord 726 H
CN80-NB-CNV-0 CN80 4-bay Ethernet charge base with power supply and no power cord 1144 H
2-5199-020-0 CA199-2 IEC Power C13 to AU 3 pin Plug - 2m $11.00 U1
Quad Bay Battery Charger Kit (Includes PCU, Requires IEC Cable)
CX80-QBC-UV-0 CN80 quad battery charger with power supply and no power cord 451 H
2-5199-020-0 CA199-2 IEC Power C13 to AU 3 pin Plug - 2m $11.00 U1
[C] Vehicle Cradle/Charging Options
Vehicle Installation Option 1 - Wireless Charging Vehicle Kit (Includes Cigarette Lighter Adaptor Cable)
CN80-VD-WL-0 CN80 VEHICLE WIRELESS CHARGER. Provides hard-wired 3-pin power jack. Mounting kit and cigarette lighter adapter cable 50138169-001 sold separately. The dock supports direct connection to 12 VDC or 24 VDC vehicles 726 H
Vehicle Installation Option 2 - Wireed Charging Vehicle Kit (Includes Cigarette Lighter Adaptor Cable)
CN80-VD-SRH-0 CN80 WIRED DOCK W/ SERIAL&USB HOST COMM. Provides hard-wired 3-pin power jack and USB host (DB15) receptacle. Mounting kit and cigarette lighter adapter 50138169-001 sold separately. The dock supports direct connection to 12 VDC or 24 VDC vehicles 660 H
Mounting options ordered seperately
[D] Accessories
CN80-VH-SHC CN80 VEHICLE HOLDER. Does not provide connectivity to power the device. Compatible with scan handle and hand strap. RAM mounting kit sold separately 176 H
CN80-SN-USB-0 CN80 SNAP ON ADAPTOR WITH USB PORT. Compatible with hand strap and scan handle. Optional 50130570-001 (5 V/2 A) USB power wall adapter sold separately 242 H
CN80-SN-VPA-0 CN80 SNAP ON ADAPTOR. Compatible with hand strap and scan handle. Kit includes CN80-SN-USB-0 and ACGMTRACKCWU1 286 H
CN80-SN-SRH-0 CN80 SNAP ON ADAPTOR WITH SERIAL PORT. Kit includes snapon adapter and 2-pin barrel to USB type-A power cable Requires USB cable VE011-2016 (host) and/or 225- 737-002 (USB to serial adapter cable). 286 H
CN80-SH-DC CN80 scan handle, compatible with charging docks, not compatible with vehicle docks 231 H
CN80-HST-00 CN80 HOLSTER W/O SCAN HANDLE. CN80 holsters for long-range and standard-range configurations. Holster clips onto standard belts. Nylon web belt included 154 H
CN80-HST-SHC CN80 HOLSTER W/ SCAN HANDLE. compatible with CN80 scan handle CN80-SH-DC. Holster clips onto standard belts. Nylon web belt included 176 H
CN80-RB-00 Black rubber protective boot for CN80 Extended Range configuration. Not compatible with scan handle CN80-SH-DC 66 H
CN80-RB-01 Black rubber protective boot for CN80 EX20 or Cold Storage configuration. Not compatible with scan handle CN80-SH-DC 66 H
CN80-RB-SHC Black rubber protective boot for CN80 Std. range scanner configuration. Compatible with scan handle CN80-SH-DC 77 H
CN80-RB-SHC1 Black rubber protective boot for CN80 EX20 or Cold Storage configuration. Compatible with scan handle CN80-SH-DC 77 H
CN80-SP-10PK CN80 SCREEN PROTECTOR,Contains ten (10) self-adhesive screen protectors 176 H
[E] Spare/Replacement Battery
CX80-BAT-EXT-WRLS1 Battery, CN80. Spare or replacement battery pack for CN80 (one pack included with each Dolphin™ CN80 mobile computer) 231 H
[F] Support Options
SVCCN80-5PS3 CN80, Complete, 5 Day Turn, 3 Year, Day 1, Includes Power Mgmt Protection, Browser Maint, Battery Refresh (Apac Only) 902 H
