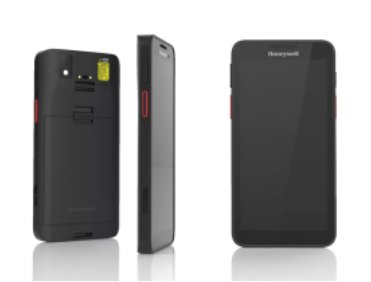

Honeywell Dolphin CT30XP
Hand Held PC
 |
The CT30 XP is a durable, all-purpose business tool ensuring ultra-reliable data access and communications for front-line mobile workers combining the elegant design and usability of a high-end mobile phone while delivering the durability, manageability and functionality serious businesses depend on.The slim, lightweight CT30 XP slips easily into the pocket and is easy for users in retail and healthcare to use, hold and carry. Unlike typical consumer phones which areaesthetically pleasing but less durable, CT30 XP's robust design can withstand use in challenging environments, including rough treatment and more extreme temperatures. Thevivid, full-high-definition display makes it easy to use and supports modern high-definition software. The PTT button and 8-megapixel front-facing camera enable effective and intuitive communications with team members. Based on the Mobility Edge platform, the CT30 XP is designed for businesses that invest in powerful solutions to gain competitive advantage. The Mobility Edge platform is a durable, stable, secure foundation on which to build these solutions. The platform enables a longer productive life, superior security, optimized performance, and accelerated deployments. Combined with the powerful, cloud based, Operational Intelligence asset optimization solution, IT leaders can empower operations with competitive advantage, high productivity and low TCO, all with a user experience that keeps front line workers productive and engaged. Users will appreciate the design of the CT30 XP, which packs a vivid, 5.5-inch (14 cm), full-high-definition (FHD) screen into a slim, lightweight, yet durable package. Gentlecurves meet the aesthetic demands of customer-facing, top tier retail and hospitality environments while making the device easy to hold and hard to drop. Features
|
|---|
Specifications
| WiFi | WiFi + 4G | |
| Physical Characteristics | ||
| Dimensions | 154 (l) x 76(w) x 12.6(d) mm | |
| Weight | 215g | |
| Environmental Characteristics | ||
| Operating Temperature | -10º to 50ºC | |
| Storage Temperature | -30ºC to 70ºC | |
| Humidity | 0 to 95% (Non-Condensing) | |
| Drop Protection | 1.2 m (4 ft) across operating range, 1.5m (5 ft) at room temperature, as per MIL-STD 810H | |
| Tumble | Exceeds 500 (0.5m) tumbles per IEC 60068-2-32 specification | |
| ESD | ±8kV Direct, ±15kV Air | |
| Environmental Protection | Independently certified to meet IP67 standards for moisture and particle intrusion | |
| Hardware | ||
| Processor | 2.0GHz Qualcomm QCS4290/QCM4290 Octa-core | |
| Display | 140 mm (5.5 in), 2160 × 1080 Full High Definition Colour, Multi-touch Capacitive Touchscreen with Gorilla Glass 5 Covering | |
| Keys | Volume up/down key, left/right scan, power, Push-to-Talk | |
| Memory | 4 or 6 GB DDR4 RAM, 64 GB Flash, micro SD slot (For upto 512GB memory card) | |
| Power | 3.6V 3.4Ah LiIon Main Battery with integrated battery diagnostics, warm battery swap capability, allowing up to 1 minute to change the battery | |
| Hours of Operation | 10+ hours (varies based on use case) | |
| Charge Time | Quick Charge 3.0 compliant; Less than 3 hours to be fully charged | |
| WLAN | - | 4G Radio, nano-SIM slot and 1 optional eSIM LTE Advanced Support with Up to 390 Mbps CAT13 LTE downlink, Up to 75 Mbps CAT5 LTE uplink UMTS/HSPA+ (3G) GSM/GPRS/EDGE Quad-Band |
| WLAN | WiFi 5 EEE 802.11 a/b/g/n/ac Security: OPEN, WEP, WPA/WPA2/WPA3 (Personal and Enterprise) | WiFi 6 EEE 802.11 a/b/g/n/ac/ax and 2x2 MU-MIMO radio Security: OPEN, WEP, WPA/WPA2/WPA3 (Personal and Enterprise) |
| NFC | NFC ISO/IEC 14443 A, ISO/IEC 14443 B, ISO/IEC 15693 (ICode), MIFARE 1K/4K, MIFARE DESFire, Sony FeliCa, ISO/IEC 18092 (Type F) | |
| Bluetooth | V5.1 Bluetooth and BLE | |
| GPS | - | Simultaneous GNSS Receiver Support for GPS, GLONASS, Galileo and BeiDou |
| Push to Talk | PTT Supported | |
| Audio | PTT, VoIP ready, speaker, HACcompliant, three microphones with noise cancellation | |
| I/O Ports | Durable, flat IO connector, USB Type C connector (except healthcare units) (USB 3.0 is supported via USB Type C) | |
| Camera | 13-megapixel colour rear camera, 8-megapixel front facing camera | |
| Barcode Option | Honeywell "FlexRange" Imager, or Honeywell S0703 1D/2D Reader | |
| Sensors | Ambient light sensor, proximity sensor, accelerometer, gyroscope, magnetometer, barometer, eCompass, hall sensor | |
| Operating Environment | ||
| Operating System Options | Android 11.0 Support for Android 12 and 13 System compatibility through to Android 15, when supported by Qualcomm | |
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] Honeywell CT30XP WiFi Only Hand Held Computer | ||||
| CT30P-X0N-30D10HG | HONEYWELL PDT CT30XP-HC 6/64 2D-SR WLAN AD/GMS | $2,288.00 | C1 | |
| CT30P-X0N-37D10DG | HONEYWELL PDT CT30XP 6/64 2D-SR WLAN AD/GMS | $2,288.00 | C1 | |
| CT30P-X0N-38D10DG | HONEYWELL PDT CT30XP 6/64 2D-FLEX WLAN AD/GMS | $2,420.00 | C1 | |
| [B] Honeywell CT30XP WiFi and 4G Hand Held Computer | ||||
| CT30P-L1N-30D1NHG | ||||
| CT30P-L1N-37D1EDG | CT30P-SR | HONEYWELL PDT CT30XP DRH 2D-SR 6/64 4G AD/GMS | $2,420.00 | C1 |
| CT30P-L1N-37D1NDG | ||||
| CT30P-L1N-38D1EDG | CT30P-FLEX | HONEYWELL PDT CT30XP DRH 2D-FLEX 6/64 4G AD/GMS | $2,574.00 | C1 |
| CT30P-L1N-38D1NDG | ||||
| [C] Singe Bay Charging Kit (For use with protective boot) | ||||
| CT30P-HB-UVN-0 | HONEYWELL DOCK KIT CHARGE/USB 1-BAY CT30XP N/BOOT | $330.00 | C1 | |
| CT30P-HB-UVB-0 | HONEYWELL DOCK KIT CHARGE/USB 1-BAY CT30XP W/BOOT | $330.00 | C1 | |
| CT30P-EB-UVN-0 | ||||
| CT30P-EB-UVB-0 | ||||
| CT30P-DB-UVN-0 | HONEYWELL DOCK KIT CHAR/DISP 1-BAY CT30XP N/BOOT | $682.00 | C2 | |
| CT30P-DB-UVB-0 | ||||
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| [D] Universal Cup Only - to be fitted to a Universal Base | ||||
| CT30P-UCP-N | ||||
| CT30P-UCP-B | HONEYWELL UNIVERSAL CUP CT30XP BOOTED | $66.00 | C1 | |
| [E] Quad Bay Charging Kit | ||||
| CT30P-CB-UVN-0 | HONEYWELL MULTIDOCK KIT CHARGE 4-BAY CT30XP N/BOOT | $638.00 | C1 | |
| CT30P-CB-UVB-0 | HONEYWELL MULTIDOCK KIT CHARGE 4-BAY CT30XP W/BOOT | $572.00 | C1 | |
| CT30P-NB-UVN-0 | ||||
| CT30P-NB-UVB-0 | HONEYWELL MULTIDOCK CHARGE/ETH 4-BAY CT30XP W/BOOT | $979.00 | C1 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| [F] | ||||
| CT30P-QBC-0 | HONEYWELL MULTIDOCK KIT BATTERY 4-BAY CT30XP | $572.00 | C1 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| [G] Accessories | ||||
| CT30P-PB-XP | HONEYWELL PROTECTIVE BOOT CT30XP | $22.00 | C1 | |
| CT30P-SP-1PK | HONEYWELL SCREEN PROTECTOR CT30XP 1PK | $33.00 | C1 | |
| CT30P-CLIP-STD | HONEYWELL CARRY CLIP CT30XP WLAN 1PK | $22.00 | C1 | |
| MBL-HDST-USBC | HONEYWELL HEADSET WITH PTT USBC EDA52 | $88.00 | C2 | |
| CT30P-HS-3PK | HONEYWELL HANDSTRAP CT30XP 3PK | $88.00 | C1 | |
| CT30P-WS-KIT | HONEYWELL WEARABLE KIT CT30XP NO-BOOT | $77.00 | C1 | |
| CT30P-WS-KIT-01 | ||||
| CT30P-WS-KIT-02 | ||||
| CT30P-WS-KIT-03 | ||||
| [H] Replacement Batteries | ||||
| CT30P-BTSC-001 | HONEYWELL BATTERY STD 3400MAH CT30XP DRH | $154.00 | C1 | |
| CT30P-BTSC-002 | HONEYWELL BATTERY 3400MAH CT30XP-HC | $154.00 | C1 | |
| [I] Extended Maintenance Support Options | ||||
| SVCCT30XP-SG3N | HONEYWELL EDGE SERVICE GOLD CT30XP 5D 3Y | $440.00 | V | |
| SVCCT30XP-SG5N | HONEYWELL EDGE SERVICE GOLD CT30XP 5D 5Y | $847.00 | V | |
| SVCCT30XP-SP3N | ||||
| SVCCT30XP-SP5N | ||||
| Add-Ons for Extended Maintenance Support | ||||
| SVCACC-MOB3 | HONEYWELL EDGE SERVICE ADDON MOBILE ACCESSORY 3Y | $297.00 | V | |
| SVCACC-MOB5 | HONEYWELL EDGE SERVICE ADDON MOBILE ACCESSORY 5Y | $495.00 | V | |
| SVCREPLACE-MOB3 | HONEYWELL EDGE SERVICE ADDON MOBILE REPLACE 3Y | $154.00 | V | |
| SVCREPLACE-MOB5 | HONEYWELL EDGE SERVICE ADDON MOBILE REPLACE 5Y | $275.00 | V | |
