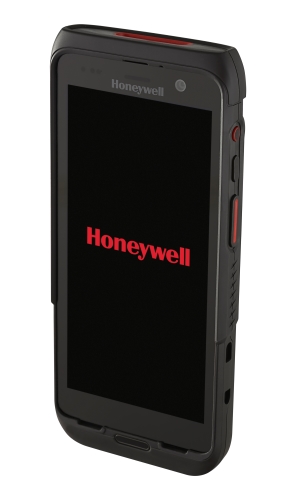

Honeywell - CT47
Handheld PC


The Honeywell CT47 mobile computer, built on the latest generation of the Mobility Edge platform delivers the security, durability and advanced data capture capabilities for frontline mobile workers in retail and logistics. Warehouses and logistics are as busy as ever and require a solution to keep their operations up and running. Designed to withstand these challenging environments, the CT47 is built with an ultra-rugged design for workers to carry comfortably throughout their shift without any sacrifice to ergonomics.

The CT47 leverages the latest 5G and Wi-Fi 6E technology to enable mobile workers in both indoor and outdoor environments. 5G offers high bandwidth and low latency for transport and delivery workers and allows a warehouse to always stay connected. Wi-Fi 6 offers the extended use of the 6GHz band for high speed data connection.

Enhanced security features new to the CT47 include the fingerprint sensor, ideal for one-handed operation and quick access to biometric authentication. Facial recognition is accessible from the front-facing camera to access the device securely. The CT47 encrypts and stores user data locally.

The CT47 is available with the latest FlexRange XLR scan engine. The FlexRange XLR scan engine enables virtually every scanning use case (near and far, high and low) in a compact device, enabling businesses to focus on fewer device types to manage. The CT47 leverages the 6th generation Qualcomm processor and memory technology for fast performance with guaranteed support through Android 15 and a commitment to support Android 16.

Features

  • Qualcomm QCS6490/QCM6490 octa-core, 2.7GHz
  • Wi-Fi 6E and 5G connectivity
  • 8MP Front and 13MP Rear Camera
  • Android 12 to 15
  • Smart Battery Technology
  • Honeywell Mobility Edge platform
  • 12 Month Warranty with extended Support Options

Specifications

Physical Characteristics
Dimensions
170 (l) x 79 (w) x 19.2 (d) mm
Weight
288g
Environmental Characteristics
Operating Temperature
-20 to 50C
Storage Temperature
-30C to 70C
Humidity
5% to 95% (Non-Condensing)
Drop Protection
2.4m to concrete at room temperature, as per MIL-STD 810G
Tumble
Exceeds 3500 0.5m tumbles per IEC 60068-2-32 specification
ESD
8kV Direct, 15kV Air
Environmental Protection
Independently certified to meet IP68 and IP65 standards for moisture and particle intrusion
Hardware
Processor
Qualcomm QCS6490/ QCM6490 octa-core, 2.7GHz
Display
13.97 cm (5.5 in), 2160 x 1080 Full High-Definition, Multi-touch capacitive Touchscreen, LED Backlight, Gorilla Glass 5
Keys
Volume up/down key, left/right scan, power button, Push to Talk button
Memory
6GB DDR4x RAM, 128GB UFS Flash (Wi-Fi only)
8GB DDR4x RAM, 128GB UFS Flash (cellular)
Power
4Ah LiIon Main Battery with integrated diagnostics tools
Run Time
14+ Hours
Radio's
WWAN: 5G Radio (ATT/VZW/SPRINT/ TMO/NA/EU)
WLAN: IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/ mc/ax, Wi-Fi 6E certified, Security: OPEN, WEP, WPA/WPA2/ WPA3 (Personal and Enterprise)
NFC
Bluetooth: V5.2 Bluetooth and BLE
Camera
13-megapixel rear camera, 8-megapixel front-facing camera
Barcode Option
Standard Range, FlexRange, FlexRange XLR
Sensors
Ambient light sensor, Proximity sensor, Accelerometer, Gyroscope, Magnetometer, Barometer, eCompass, Hall sensor, High-G sensor
Operating Environment
Operating System Options
Android 12 - 15


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Honeywell CT47 WiFi Only Hand Held Computer
CT47-X0N-37D100G HONEYWELL PDT CT47 2D-SR 6/128 WLAN AD/GMS $4,323.00 A
CT47-X0N-38D100G HONEYWELL PDT CT47 2D-FLEX 6/128 WLAN AD/GMS $4,477.00 A
CT47-X0N-3ED100G HONEYWELL PDT CT47 2D-XLR 6/128 WLAN AD/GMS $4,642.00 A
CT47-X0N-57D100G HONEYWELL PDT CT47 2D-SR 8/128 WLAN AD/GMS $4,400.00 A
CT47-X0N-58D100G HONEYWELL PDT CT47 2D-FLEX 8/128 WLAN AD/GMS $4,554.00 A
CT47-X0N-5ED100G HONEYWELL PDT CT47 2D-XLR 8/128 WLAN AD/GMS $4,730.00 A
[B] Honeywell CT47 WiFi and 4G Hand Held Computer
CT47-X1N-37D1E0G HONEYWELL PDT CT47 2D-SR 6/128 5G AD/GMS $4,554.00 A
CT47-X1N-38D1E0G HONEYWELL PDT CT47 2D-FLEX 6/128 5G AD/GMS $4,730.00 A
CT47-X1N-3ED1E0G HONEYWELL PDT CT47 2D-XLR 6/128 5G AD/GMS $4,884.00 A
CT47-X1N-57D1E0G HONEYWELL PDT CT47 2D-SR 8/128 5G AD/GMS $4,642.00 A
CT47-X1N-58D1E0G HONEYWELL PDT CT47 2D-FLEX 8/128 5G AD/GMS $4,807.00 A
CT47-X1N-5ED1E0G HONEYWELL PDT CT47 2D-XLR 8/128 5G AD/GMS $4,961.00 A
[C] Charging/Cradle Options
Portable Snap on USB Charge Cable
CT45-SN-CNV HONEYWELL SNAP ON CT45/XP NO-BOOT $198.00 A
Display Docking Station
CT40-DB-UVN-0 HONEYWELL DOCK KIT CHAR/DISPLAY 1-BAY CT40 $748.00 A
Singe Bay Charging Kit
CT40-EB-UVB-0 HONEYWELL DOCK CHARG/ETH 1-BAY CT40/CT45/XP W/BOOT $594.00 A
CT40-EB-UVN-0 HONEYWELL DOCK CHARG/ETH 1-BAY CT40/CT45/XP N/BOOT $594.00 A
CT40-HB-UVB-0 HONEYWELL DOCK CHARG/USB 1-BAY CT40/CT45/XP W/BOOT $429.00 A
CT40-HB-UVN-0 HONEYWELL DOCK CHARG/USB 1-BAY CT40/CT45/XP N/BOOT $429.00 A
2-5199-020-0 CA199-2 IEC Power C13 to AU 3 pin Plug - 2m $9.26 U1
Quad Bay Charging Kit
CT40-CB-UVB-0 HONEYWELL MULTIDOCK 4-BAY CT40/CT45/XP W/BOOT $748.00 A
CT40-CB-UVN-0 HONEYWELL MULTIDOCK 4-BAY CT40/CT45/XP N/BOOT $748.00 A
CT40-NB-UVB-0 HONEYWELL MULTIDOCK KIT CHAR/ETH 4-BAY CT40XP BOOT $1,155.00 A
CT40-NB-UVN-0 HONEYWELL MULTIDOCK ETH 4-BAY CT40/CT45/XP N/BOOT $1,155.00 A
CT40-QBC-0 HONEYWELL MULTIDOCK CHARGE BATT 4-BAY CT40/CT45/XP $550.00 A
2-5199-020-0 CA199-2 IEC Power C13 to AU 3 pin Plug - 2m $9.26 U1
[D] Accessories
CT47-PB-1 HONEYWELL PROTECTIVE BOOT CT47 $44.00 A
CT47-SP-1PK HONEYWELL SCREEN PROTECTER CT47 1/PK $33.00 A
CT47-HS-3PK HONEYWELL HAND STRAP CT47 3/PK $110.00 A
CT45-SH-UVB HONEYWELL SCAN HANDLE CT45/XP W/BOOT $220.00 A
CT45-SH-UVN HONEYWELL SCAN HANDLE CT45/XP N/BOOT $176.00 A
213-048-001 HONEYWELL STYLUS CT40/CT50/CT60 5PK $99.00 A
825-238-001 HONEYWELL HOLSTER BELT CT40/CT60 $110.00 A
For additional accessories please contact Sales
[E] Extended Maintenance Support Options
SVCCT47-SG3N HONEYWELL SERVICE EDGE GOLD CT47 5D 3Y $517.00 V
SVCCT47-SG5N HONEYWELL SERVICE EDGE GOLD CT47 5D 5Y $847.00 V
Add-ons for Extended Maintenance Support
SVCACC-MOB3 HONEYWELL EDGE SERVICE ADDON MOBILE ACCESSORY 3Y $286.00 V
SVCACC-MOB5 HONEYWELL EDGE SERVICE ADDON MOBILE ACCESSORY 5Y $484.00 V
SVCREPLACE-MOB3 HONEYWELL EDGE SERVICE ADDON MOBILE REPLACE 3Y $154.00 V
SVCREPLACE-MOB5 HONEYWELL EDGE SERVICE ADDON MOBILE REPLACE 5Y $264.00 V
