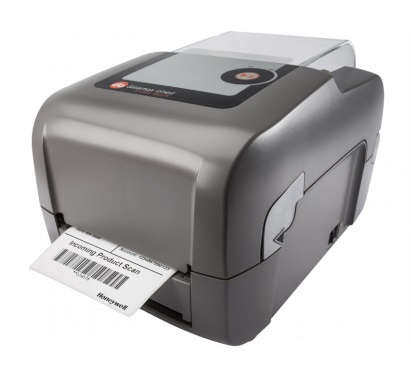

Honeywell - E-Class MkIII
Bar Code Printer


The Honeywell E-Class Mark III is a family of compact desktop thermal printers designed for a wide variety of industries and applications that require a reliable and cost-effective barcode printer. Honeywell Datamax-O'Neil applied its industrial printer expertise to provide customers with an entry-level printer that has the features and reliability normally found in more expensive printers. The E-Class Mark III is affordable to own, easy to use, and economical to operate.

The E-Class Mark III easy to use, with quick-loading media and an interactive LCD screen. Users can also notice a substantial reduction in their daily operational costs thanks to the E-Class Mark III’s larger media and ribbon-roll capacity. The E-Class Mark III is one of the best values on the market.

The E-Class is available in three distinct models that offer the features necessary to meet the broadest range of customer requirements, so you don't have to pay for features you don’t need.

The E-Class Mark III was carefully designed to maximize your investment value by offering a competitive purchase price, a battery pack option for mobility, a double-walled construction for increased durability, and a proven design for long-term reliability.

Features:

  • DT & TT printing
  • 4 Models to Choose From
  • Multiple interface Options
  • Battery Option
  • 12 month Warranty with Extension options

Specifications

E-Class MkIIIBasicAdvancedProfessional
Physical Characteristics
Length
282mm
Height
187mm
Width
203.5mm
Weight
2.4kg
Colour
Warm Gray
Construction
Split case with rear concentric hinge
double-walled high-strength thermoplastic
clear wraparound media window
Print Specifications
Print Resolution
8 dots/mm (203 dpi or 12 dots/mm (300 dpi)
Print Width (maximum)
104 mm (4.0")
Print Speed
101mm/s (4.0"/s)
127mm/s (5.0"/s)
152mm/s (6.0"/s)
Media Specifications
Media Width
19 mm to 110 mm
Print Width (maximum)
108mm at 203dpi, 106mm at 300dpi
Label Roll Diameter (maximum)
127 mm (5")
Type

Labels and Tags, Linered Media, Gap, Notch, Black Mark, Continuous
Core Diameter
25-38 mm
Memory
Standard
64MB Flash
16MB SDRAM
Bar codes
1 Dimensional
All major Bar Code Symbologies
2 Dimensional
All major 2D Bar Code Symbologies
Fonts
10 resident scaleable fonts standard, with the option of downloading additional fonts
Communication
Standard Interface's
RS232, USB
RS232, Parallel, USB
RS232, Parallel, USB Client, Ethernet, USB Host, RTC
Optional
802.11a/b/g, Bluetooth 2.0
User Interface
LED/Feed Button
LED/Feed Button
LCD/Navigation Buttons

E-Class MkIII Configuration Selection Guide


E
   Printer Model

B2

B3

A2

A3

P2

P3



Basic, 203dpi, LED/Feed Button

Basic, 300dpi, LED/Feed Button

Advanced, 203dpi, LED/Feed Button

Advanced, 300dpi, LED/Feed Button

Professional, 203dpi, LCD/Navigation Buttons

Professional, 300dpi, LCD/Navigation Buttons

   Product Kit

-00

-01



Standard Kit - includes Packaging, QSG, CD, Warranty Card

No Kit - includes no additional contents

   Printing Method

-0

-1



Direct Thermal Only

Direct Thermal and Thermal Transfer

   Power Cord

T



Australian Power Cord

   Media Exit Options

00

P0

G0



Tear Bar

Peeler with Label Taken Sensor

Cutter with Label Taken Sensor (Not available with the Basic Printer Model)

   Printer Command Language

0

1

2

3

5



DPL (Stanard)

Auto - DPL, PL-Z(ebra), PL-E(ltron), Emulation

PL-I Intermec Emulation

PL-B Boca.FGL Emulation

Neitra Auto

   Interface Options

B

A

P

Q

V



Serial, USB (Basic Model Only)

Serial Parallel, USB & LAN

Serial Parallel, USB & LAN, USB Host, RTC

Serial Parallel, USB & LAN, USB Host, RTC & 802.11abg

Serial Parallel, USB & LAN, USB Host, RTC & Bluetooth 2.0

   Optional Battery Power Case

0

4



Not Used

MPU-4000 Power Unit - Factory Fitted

   Misc. Options

0

1

No Option - Standard

Medial Guide Chute (For loading External Media)


E
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] E-Calss MkIII Printer (only some options shown)
Direct Thermal
EB2-00-0T001B00 E-4204B,203dpi,4ips,LED/Button U,Standard Kit ,Direct Thermal,Autoranging PS With Italian Power Cord,Auto - DPL, PL-Z, PL-E Emulation,64MB FLASH, 32MB DRAM, Serial, USB $499.40 H
EB2-00-0T005B00 E-4204B DT CEE PCB1 AUSTRALIAN PWR CORD $607.20 H
EA2-00-0T005A00 E-4205A DT CEE PCB2 AUSTRALIAN PWR CORD $658.90 H
Direct Thermal & Thermal Transfer
EB2-00-1T005B00 E-4204B,203DPI,4 IPS, LED/Button UI $600.60 H
EA2-00-1T005A00 E-4205A 4 Inch Printer, 203DPI, Adjustable Sensor, LED/Button UI, TT 64MB Flash,16 mb DRAM,Serial, Parallel, USB, LAN, AUSTRALIA PWR CORD $806.30 H
EA2-00-1TG00A00 E-4205A, 203dpi, 5ips, Adjustable Sensor,LED/Button UI,Standard Kit,TT and Direct Thermal,Autoranging PS With Australian Power Cord,Cutter w/Label Sensor,64MB FLASH, 32MB DRAM, Serial, Parallel, USB and LAN $898.70 H
EA2-00-1TG05A00 E-4205A TT CEE PCB2 AUSTRALIA CORD CUT $1,003.20 H
EA3-00-1T001A00 E-4305A, 300dpi, 5ips, Adjustable Sensor,LED/Button UI,Standard Kit,TT and Direct Thermal,Autoranging PS With Australian Power Cord,Auto - DPL, PL-Z, PL-E Emulation,64MB FLASH, 32MB DRAM, Serial, Parallel, USB and LAN $801.90 H
EA3-00-1T005A00 E-4305A,300DPI,Adjustable Sensor,LED/Button UI $922.90 H
[B] Accessories
Options
DPO32-2670-01 Communications Cable, Mini-Parallel, IEEE 1284, 6FT $41.80 H
DPO78-2394-01 External Rewinder / Unrewinder DMXREW1 110 volt (4.5´ wide and 8´ OD roll) $739.20 H
DPO78-2842-01 Fan-Fold/External Media Guide, 1 Set $27.50 H
OPT78-2907-01 MPU-4000 Mobile Power Unit (Mountable rechargeable battery pack does not attach to Pro+) $721.60 H
DPO78-2394-02 External Rewinder / Unrewinder DMXREW1 220 volt Euro Plug (4.5´ wide and 8´ OD roll) $767.80 H
OPT78-2872-01-SP OPT, EXT LABEL ROLL HLDR, M5 $91.30 H
Replacement Parts
OPT78-2835-01 Cutter Kit, Guillotine, w/sensor $223.30 H
OPT78-2278-01 DMX-100, External Ethernet $724.90 H
ROL78-2867-01-SP KIT, PLATEN ROLLER ASSY, M5 $37.40 H
32-2488-01-SP POWER CORD, AUSTRALIAN, ROHS $27.50 H
Printhead
430123-200-SP PRINTHEAD, 4IN SEIKO,UNCTD3.2 MM SC $468.60 H
PHD20-2192-01 Printhead, 203DPI - E-4203/E-4204 $314.60 H
PHD20-2213-01 Printhead, 300DPI - E-4304 $345.40 H
PHD20-2267-01 Printhead, 203 DPI. E-Class Mark III $187.00 H
PHD20-2268-01 Printhead, 300 DPI. E-Class Mark III $250.80 H
[C] Honeywell Repair Services
Service Contracts
SVCPH1-PRN3 Printhead Replacement Service, PC Printers, PD Printers, PM Printers, E-Class, M-Class, Complete Add-on, 3 Year, Must be sold with Complete Contract $122.10 H
SVCPH1-PRN5 Printhead Replacement Service, PC Printers, PD Printers, PM Printers, E-Class, M-Class, Complete Add-on, 5 Year, Must be sold with Complete Contract $203.50 H
Fixed Printer Service Contracts
SVCE4204B-2FC3 E-4204B 203dpi,Plus, 2 Day Turn, 3 Years DayOne $209.00 H
SVCE4204B-5FC3 E-4204B 203dpi,Plus, 5 Day Turn, 3 Years DayOne $165.00 H
SVCE4205A-2FC3 E-4205A 203dpi,Plus, 2 Day Turn, 3 Years DayOne $253.00 H
SVCE4205A-5FC3 E-4205A 203dpi,Plus, 5 Day Turn, 3 Years DayOne $198.00 H
Extended Warranty
SVCE4204B-EXW3 E-4204B 203dpi, Basic, 10-15 Day Turn, 3 Years (1 yr factory warranty + 2 yr extended) $77.00 H
SVCE4205A-EXW3 E-4205A 203dpi, Basic, 10-15 Day Turn, 3 Years (1 yr factory warranty + 2 yr extended) $77.00 H
SVCE4206P-EXW3 E-4206P 203dpi, Basic, 10-15 Day Turn, 3 Years (1 yr factory warranty + 2 yr extended) $110.00 H
SVCE4304B-EXW3 E-4304B 300dpi, Basic, 10-15 Day Turn, 3 Years (1 yr factory warranty + 2 yr extended) $77.00 H
SVCE4305A-EXW3 E-4305A 300dpi, Basic, 10-15 Day Turn, 3 Years (1 yr factory warranty + 2 yr extended) $77.00 H
SVCE4305P-EXW3 E-4305P 300dpi, Basic, 10-15 Day Turn, 3 Years (1 yr factory warranty + 2 yr extended) $110.00 H
Print Service Solution
SVCE4204B-5PS3 E-4204B 203dpi,Complete, 5 Day, 3 Years DayOne - Includes Printhead, Cutter and Platen Roller Coverage $231.00 H
SVCE4205A-5PS3 E-4205A 203dpi,Complete, 5 Day, 3 Years DayOne - Includes Printhead, Cutter and Platen Roller Coverage $286.00 H
SVCE4206P-5PS3 E-4206P 203dpi,Complete, 5 Day, 3 Years DayOne - Includes Printhead, Cutter and Platen Roller Coverage $352.00 H
SVCE4304B-5PS3 E-4304B 300dpi,Complete, 5 Day, 3 Years DayOne - Includes Printhead, Cutter and Platen Roller Coverage $220.00 H
SVCE4305A-5PS3 E-4305A 300dpi,Complete, 5 Day, 3 Years DayOne - Includes Printhead, Cutter and Platen Roller Coverage $275.00 H
SVCE4305P-5PS3 E-4305P 300dpi,Complete, 5 Day, 3 Years DayOne - Includes Printhead, Cutter and Platen Roller Coverage $396.00 H
