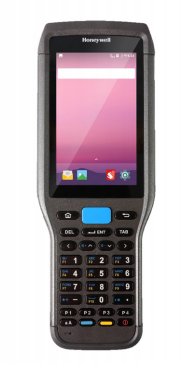

Honeywell ScanPal EDA60K
Hand Held PC


The ScanPal EDA60K mobile computer is Honeywell’s new light industry handheld device featuring a highly adaptable design. From the well-received Android operating system and dual-band Wi-Fi connection to robust storage capabilities and advanced data entry options, the EDA60K device is ideal for front-line workers in retail inventory management, distribution centers, and e-commerce logistics.

The EDA60K features an ergonomic 30-key numeric physical keyboard, as well as flexible 1D and 2D scan engine options – making it well-suited for picking, packing, put-away, and other workflows that require fast standard-range scanning and frequent keypad data input. It also has an easy-to-use modern touchscreen for intuitive, simplified access to the Android system and essential business applications.

The EDA60K mobile computer features a rugged yet ergonomic design, that minimises downtime and helps improve productivity for mobile workers. It can withstand multiple 1.5 meter (5 ft) drops to concrete and 1,000 (0.5 m) tumbles, and features IP64 seal rating protection against dust and water spray. It alsodelivers industry-leading battery life that will last through a full shift and beyond – minimising the time and expense incurred when batteries need to be charged or replaced.

The EDA60K offers rugged durability, an ergonomic design, and a perfectly balanced combination of features for light warehouse management workflows. For customers using Honeywell CK3 mobile computers, it also offers a lower total cost of ownership because of its backward compatibility with CK3 pistol grip andbattery charging accessories.

Features

  • Qualcomm 9817 Quadcore CPU
  • Multitouch Capacitive Touchscreen
  • Small Lightweight Design
  • Large Full Shift Battery
  • 12 Month Warranty with extended Support Options

Specifications

30Radio's
Physical Characteristics
Dimensions

215.5 (l) x 78.5(w) x 28(d) mm
Weight
415g
Environmental Characteristics
Operating Temperature
-10º to 50ºC
Storage Temperature
-20º to 60ºC
Humidity
10 to 90% (Non-Condensing)
Drop Protection
Multiple 1.5m drops to concrete
Tumble
1000 Times from 0.5m
ESD
±8kV Direct, ±12kV Air
Environmental Protection
IP64
Hardware
Processor
Qualcomm 8917 1.4 GHz quad-core
Display
102 mm (4.0 in), 800 × 480, LED Backlight, Multi-touch Capacitive Touchscreen
Keys
30 Key Numeric Keypad with 4 function keys
Memory
2 GB RAM, 16 GB Flash
Power
Li-Ion, 3.7V, 5100 mAh
12 Hours, 5 hour charge time
WLAN:WLAN Security: WEP, 802.1x, TKIP, AES, LEAP, PEAPv0, PEAPv1, EAP-M, SCHAPv2, EAP-GTC, EAP-TLS, EAP-TTLS, WPA-PSK, WPA2
Bluetooth: Bluetooth Class 4.1
Barcode
1D Laser: N4313
2D Imager: N5603ER High-Performance 2D Imager
Indicators
RGB LED, Vibrator
Sensors
Ambient Light Sensor, Proximity Sensor, Accelerometer, Hall Sensor
Operating Environment
Operating System
Android 7.1 without GMS
Language
Worldwide English
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Honeywell EDA60K Hand Held Computer
EDA60K-0-N223ENEAK WLAN,N4313 1D scan engine,1.4 GHz Quad-core,2G/16G 802.11 a/b/g/n/ac,Bluetooth 4.1,Android 7.1 without GMS,Battery 5,100 mAh, ECP prelicensed, ANZ $1,883.20 H
EDA60K-0-N223ENLAK WLAN,N4313 1D scan engine,1.4 GHz Quad-core,2G/16G 802.11 a/b/g/n/ac,Bluetooth 4.1,Android 7.1 without GMS,Battery 5,100 mAh, ECP preloaded, ANZ $1,732.50 H
EDA60K-0-N323ENEAK WLAN,1D/2D imager,1.4 GHz Quad-core,2G/16G 802.11 a/b/g/n/ac,Bluetooth 4.1,Android 7.1 without GMS,Battery 5,100 mAh, ECP prelicensed, ANZ $2,109.80 H
EDA60K-0-N323ENLAK WLAN,1D/2D imager,1.4 GHz Quad-core,2G/16G 802.11 a/b/g/n/ac,Bluetooth 4.1,Android 7.1 without GMS,Battery 5,100 mAh, ECP preloaded, ANZ $1,959.10 H
[B] Replacement Battery
50135498-001 EDA60K Replacement Battery $150.70 H
50135498-002
[C] Chargers
EDA60K-HB-0 Kit includes Dock, Power Supply. For recharging computer & battery. Need to purchase power cord separately $209.00 H
EDA60K-CB-0 EDA60K four-bay terminal charging cradle for recharging 4 devices. Kit includes dock, power supply. Need to purchase power cord separatelly $376.20 H
871-230-101 Quad Charger, CK3 (AC20) (Requires Power Supply 851-061-502 and country specific AC power cord. Not compatible with battery: 318-046-011) $561.00 H
[D] Power supplies:
50136024-001 KIT,5V/2A PS,5 PLUGS PACKED,EDA70,ROW $33.00 H
871-230-101 Quad Charger, CK3 (AC20) (Requires Power Supply 851-061-502 and country specific AC power cord. Not compatible with battery: 318-046-011) $561.00 H
2-5199-020-0 CA199-2 IEC Power C13 to AU 3 pin Plug - 2m $11.00 U1
[E] Accessories
CBL-500-120-S00-03 Charging and USB communication cable for ScanPal EDA50/EDA50hc/EDA50K/EDA60K, USB type A toMicro USB, 1.2 m (3.9 ft) $20.90 H
50142387-001 EDA60K HAND STRAP, global, GRAY $28.60 H
203-879-003 Pistol Grip kit, CK3/EDA60K (Field attachable scan handle (replaces the hand strap).Replaces 203-879-001) $196.90 H
