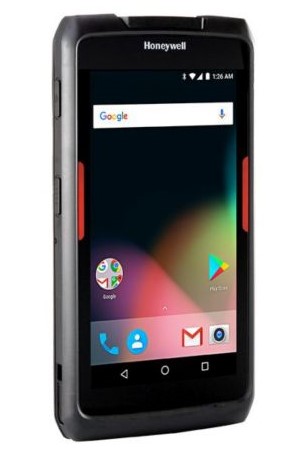

Honeywell - ScanPal EDA71
Handheld PC


The Honeywell ScanPal EDA71 delivers real-time connectivity, fast data capture capabilities and enterprise-level reliability and protection. New memory options, new scanning options, and a powerful new processor platform includes the support and lifecycle critical for enterprises. The rugged 7-inch tablet computer is a great fit for retail, grocery, DSD, field service, transportation and logistics where a larger screen is required.

With its intuitive, modern touchscreen design, the ScanPal EDA71 has the same convenience as a consumer tablet with all of the advantages of a professional-grade product. This handheld is comfortable to use and carry yet built tough to survive accidental drops and falls. It delivers stable communications through its field upgradeable Android Operating System. Increase productivity and lower total cost of ownership with security updates and a larger memory.

Features

  • Powerful 8-Core Qualcomm Snapdragon processor
  • 7-inch Gorilla Glass Touchscreen Display
  • Flexible network coverage
  • Enterprise grade ruggedness in a sleek, modern and contemporary design
  • 13 MP Camera
  • 12 Month Warranty with extended Support Options

Specifications

Physical Characteristics
Dimensions
214 (l) x 118 (w) x 221 (d) mm
Weight
550g (standard battery), 640g (extended battery)
Environmental Characteristics
Operating Temperature
-10º to 50ºC
Storage Temperature
-20º to 60ºC
Humidity
10 to 90% (Non-Condensing)
Drop Protection
Multiple 1.2m drops to concrete
Tumble
200 Times from 0.5m
ESD
±8kV Direct, ±12kV Air
Environmental Protection
IP64
Hardware
Processor
Qualcomm Snapdragon M450 1.8 GHz 8-core
Display
10.6 cm (4.0 in), 800 × 480, LED Backlight, Multi-touch Capacitive Touchscreen
Keys
26 Key Numeric Keypad, Volume up/down key, left/right scan, power, reset, Soft touch keys (Back, Home, Menu)
Memory
2/4 GB RAM, 32/64 GB Flash, micro SD slot
Power
3.8V 4Ah LiIon Main Battery
Run Time
8+ hours
Radios
WLAN: IEEE 802.11 a/b/g/n/ac radio, Wi-Fi certified
WWAN: 2G/3G/4G
Bluetooth: Bluetooth® Class 2 V4.2
NFC: Integrated Near Field Communication
Camera
13-megapixel color camera with autofocus
Barcode
N3601 (standard) or N6703 (enhanced)
Sensors
Proximity, Ambient Light, Acceleration
Operating Environment
Operating System
Android 10, field upgradeable


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Honeywell EDA71 Hand Held Computer
EDA71-0-B741SAGRK
EDA71-0-B961SAGRK
EDA71-1-B741SAGRK
EDA71-1-B961EAGRK
EDA71-1-B961SAGRK
[B] Charging Options
EDA71-EB-0
[C] Accessories
EDA71-CASE-1
EDA71-CASE-2
[D] Aftersales Support Options
SVCEDA71-SG3N
SVCEDA71-SP3N
UMD Manage Plus for SOTM MDM
