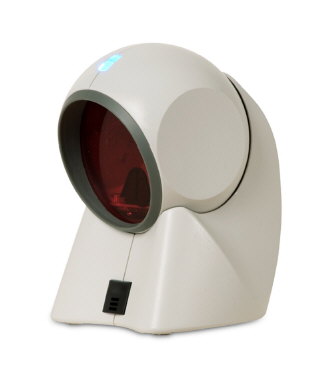

Honeywell - MS7120 Orbit
Presentation Laser Bar Code Reader


The Honeywell MS7120 Orbit is an omnidirectional presentation laser scanner for scanningall standard 1D bar codes anywhere, anytime. The MS7120 Orbit presents an innovative, elegant and affordable solution, to convenience retail applications, where counter space is at a premium.

Compact, lightweight and rugged, the Orbit maximizes customer satisfaction and employee efficiency with a 20-line scan pattern, an easy-to-find sweet spot and a scan speed of 1,120 scans per second.

For added flexibility, the scanning head can be tilted within a 30° range to accommodate objects of various sizes and shapes. Standard features include user-replaceable cables, Honeywell’s MetroSelect for easy configuration, data editing and OPOS/JPOS compatibility for easy nstallation.

  • Compact, lightweight and rugged
  • 1,120 scans per second
  • Sweet Spot Scanning
  • Adjustable Scan Head
  • Automatic Presentation Scanning
  • 3 Year Return to Base Warranty

Specifications

Mechanical
Dimensions Scanner: 105mm L x 102mm W x 150mm H
Weight Scanner: 400 g
Environmental
Operating Temp. 0 to 40° C
Storage Temp. -40 to 60° C
Relative Humidity 5% to 95% (non-condensing)
Shock Multiple 120cm (4ft) drops onto concrete
Environmental Sealing Sealed to resist airborne particulate contaminants
Electrical
Power Input 5 V/DC
Operating Current 180 mA
Optical
Scan Rate 1120 scan lines per second
Pitch ±60°
Skew ±50°
Tilt ±360°
Light Source 650 nm visible laser diode
Ambient Light Immune to direct exposure of normal office and factory lighting conditions
Print Contrast Ratio 35% minimim reflective difference
Scan Pattern 5 fields of 4 parallel lines - Omnidirectional
Symbologies Decoded
Code 39, Code 93, Code 128, UPC/EAN/JAN, Code 2 of 5, Code 11, Codabar, MSI Plessey, GS1 DataBar, Telepen, Trioptic
Communications
Host System Interfaces USB, RS232, Keyboard Wedge, IBM 46xx (RS485), Light Pen Emulation
Certifications
Laser Safety Class 1: IEC60825-1, EN60825-1
Electrical FCC Part 15, ICES-003, EN55022 Class B

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Honeywell MS7120 Orbit Presentation Scanner - Black
MK7120-31A38 USB Kit: black scanner (MS7120-38-3), mounting plate (45-45619), 2.8m (9.2´) straight USB Type A cable (59-59235-N-3) and documentation $396.00 H
MK7120-31F41 RS232 Kit: black scanner (MS7120-47-3), mounting plate (45-45619), 2.9m (9.5´) straight RS232 cable (59-59000-3), AU power supply (46-00528) and documentation $396.00 H
[B] Honeywell MS7120 Orbit Presentation Scanner - Light Grey
MK7120-71A38 USB Kit: light gray scanner (MS7120-38), mounting plate (45-45619), 2.8m (9.2´) straight USB Type A cable (54-54235B-N-3) and documentation $396.00 H
MK7120-71F41
