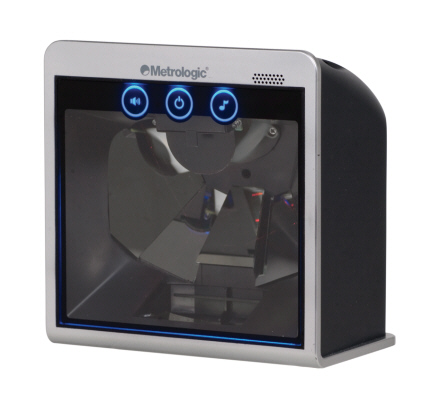

Honeywell - MS7820 Solaris
Presentation Bar Code Reader


Honeywell’s MS7820 Solaris vertical mini-slot scanner increases productivity with an unmatched feature set that aggressively scans high-density barcodes and fits easily into any existing enclosure found in small-item, high-volume retail environments.

Designed to increase system output and lower the total cost of ownership, the MS7820 reduces on-site service costs and downtime in convenience, drug, specialty, liquor, and grocery store environments.

With an extended depth of field and advanced decoding software, operators can scan all standard bar codes on the first pass with minimal concern for orientation or print quality.

Features

  • Reads 5.0 mil bar codes
  • Field-Replacable Window
  • Hands Free operation
  • Variety of Interface options
  • Omni - Directional scan pattern / single line for multiangle reading
  • Diagnostic Indicator
  • 24 month Return to Base Warranty

Specifications

Mechanical
Dimensions 152mm W x 152mm H x 92mm D
Weight 700 g
Environmental
Operating Temp. 0 to 40° C
Storage Temp. -40 to 60° C
Relative Humidity 5% to 95% (non-condensing)
Environmental Sealed to resist airborne particulate contaminants
Electrical
Voltage Range 12.0 VDC ±0.25V
Operating Current (nominal) 320mA @ 12V
Optical
Scan Rate 1800 scans per second (nominal)
Pitch ±60° (Typical)
Skew ±60° (Typical)
Light Source 650 nm visible laser diode (20 interlocking lines)
Ambient Light Immune to normal office lighting conditions, as well as direct exposure to sunlight
Print Contrast Ratio 35% minimim reflective difference
Read Distance From contact to 280 mm (dependant on barcode)
Symbologies Decoded
Reads standard 1D and GS1 DataBar symbologies
Communications
Interfaces Supported Host: USB, RS232, Keyboard wedge, IBM 46xx (RS485)
Aux: RS232 Secondary Scanner or Scale, EAS Interlock
Certifications
Laser Safety Class 1: IEC60825-1, EN60825-1
EMC FCC Part 15, IEC-003, EN55022 Class B

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Honeywell
MK7820-00C38 USB Kit: black scanner (MS7820-118) mounting plate (70-73050), 2.9 (9.5´) straight USB Type A cable (5S-5S235-3), EU pwer supply (46-00863) and documentation $781.00 H
Other interface options available on request
