Honeywell - N3680 2D Module
Bar Code Reader - OEM Engine

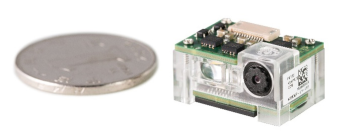

The N3680 barcode scan engine is a revolutionary, fully decoded, compact 2D engine from Honeywell. It inherits the legendary Adaptus 6.0 decoding performance in our most compact design. The N3680 represents a fine balance between size, performance, and ease of integration ensuring an excellent end user experience.

Not only does the N3680 series support a wide variety of symbologies including 1D, 2D and PDF417 barcodes it also includes advanced features that support reading poorly printed bar codes and can even read barcodes directly from smartphone screens. This makes the N3680 the perfect choice for reading mobile coupons, loyalty cards, mobile ticketing, paperless boarding passes and mobile wallet application barcodes.

Integration is simplifed, with the N3680 available in either TTL serial or USB versions, both with an industry standard 12-pin ZIF connector. To provide an easy upgrade path for formerly 1D laser applications with a 2D imaging option, the N3680 is the same size as the N4315 engine, and even features the same mounting holes and electrical pin-out. This gives you the greatest flexibility to quickly provide barcode reading solutions with the lowest design cost, in the most compact designs.

Super-compact and ready to power the next generation of intelligent data collection devices, the N3680 weighs in at just 3.6 grams and fits easily into a wide range of small devices.>/p>

Features

  • Omni-directional bar code reading
  • Compact size
  • Supports all common 1D & 2D barcodes
  • Highly Visible safe LED aim box
  • Serial TTL or USB Support
  • Reliable solid state technology with low power consumption
  • Ideal for integrating into equipment requiring barcode capability
  • 12 month Warranty

Specifications

Mechanical
Dimensions 11.52 mm (h) x 14.6 mm (d) x 21.57 mm (w)
Weight 3.6g
Environmental
Operating Temp. -10 to 40C
Storage Temp. -40 to 60C
Relative Humidity 0% to 95%(non-condensing, at 40C)
Vibration 3 axes, 1 hour per axis: 2.54 cm (1˝) peak-to-peak displacement (5 Hz to 13 Hz), 10 G acceleration (13 Hz to 500 Hz), 1 G acceleration (500 Hz to 2,000 Hz)
Shock 2500G for 0.4ms at 25C
Electrical
Voltage TTL Serial: 3.3 VDC 5%
USB: 5.0 VDC 5%
Operating Current TTL Serial: 3.3 V input 310 mA RMS while scanning
USB: 5 V input 220 mA RMS while scanning
Hibernate Current TTL Serial: 65 mA RMS at idle, 3.5mA while on standby
USB: 60 mA RMS at idle, 2.5 mA while on standby
Optical
Scan Rate 30 frames per second, auto adaptive
Optical Resolution 640 (H) x 480 (V) pixels
Scan Angle Tilt: 360, Pitch: 45, Skew: 45
Print Contrast Ratio 35% (minimum)
Motion Tolerance Up to 100 cm/s (4 in/s) for 13 mil EAN at optimal focus
Depth of field 50 mm to 380 mm
Communications
Interface TTL Serial or USB
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Honeywell N3680 OEM Scan Engine
N3680SR-W1-TTL N3680SR-TTL OEMScan Engine, LED, SR, TTL, 3.3V $275.00 C
N3680SR-W1-USB N3680SR-USB OEMScan Engine, LED, SR, USB, 5V $275.00 C
[B] Accessories
[C] Support
Engineering support is available on this product including interfacing. Contact UMD for details.
