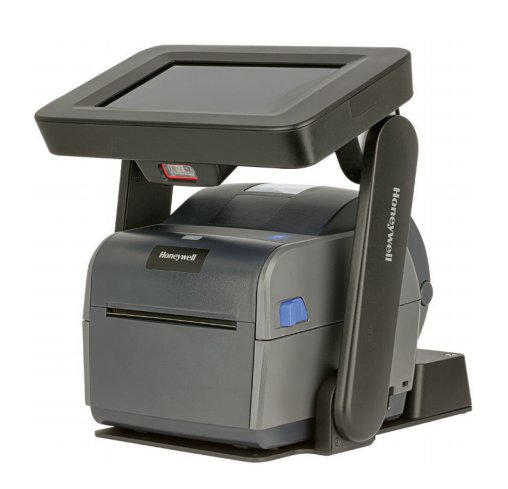

Honeywell - PC43K Kiosk
Bar Code Printier


The Honeywell PC43K all-in-one kiosk solution includes a tablet, printer, scanner and software all from a single vendor, making it extremely easy to use and develop custom applications to fit any business model.

The PC43K comes with the ScanPal EDA71 tablet on an articulating arm, an integrated barcode read engine, as well as the PC43 direct thermal printer, an I/O board and wall/desk mount. this ensures that it can be immediately ready for use in almost any consumer environment.

The EDA71 tablet with the Android 8.0 operating system is the most flexible platform for any application developer to customise applications that fit any required business model. This enables our customers to easily configure and develop applications to take full advantage of the PC43K solution.

Security is a key element of the PC43K solution. Capable of full mobile device management (MDM) support, and with security patch releases for Android and centralised support from Honeywell, the PC43K is a complete, all-in-one kiosk solution.

With native support for comprehensive printer command languages, the PC43 direct thermal printer is simple to use and maintain. It comes with all necessary configuration tools including the printer firmware updater, which enables you to update the printer to the latest firmware to ensure that it is secure and performing to its optimal level.

Features:

  • Easy to setup and use
  • Direct Thermal Printing
  • Attractive design, in a small footprint
  • Android 8.0 EDA-71 Tablet with Barcode Reader included
  • Desk or Wall mount
  • Prints on many media types
  • Easy media load clamshell design
  • Multiple Printer Language Support
  • Multiple I/O
  • 1 Year Return to Base Warranty

Specifications

Physical Characteristics
Length408mm
Width245mm
Height248mm
Weight4.55Kg
Environmental Characteristics
Operating Temperature5°C to 40°C
Operating Humidity10 to 80% (Non Condensing)
Power Characteristics
External Power Adaptor
   Input
   Output

100 to 240V AC, 1.5A, 50/60Hz
24V DC, 2.5A
Print Engine Characteristics
Print MethodDirect Thermal
Print Resolution12 dots/mm (300dpi)
Print SpeedUpto 150mm/sec (6"/s)
Printable WidthMax. 106mm
Printer Command LanguagesIPL,Fingerprint Direct Protocol,ZSim(ZPLIISimulation),ESim(EPLSimulation),DSim(DPLSimulation),XMLenabled(forSAP®AIIandOracle®WMS)
Printer Memory128MB Flash, 128MB RAM(DDR2)
Barcode SupportAll major 1-dimensional bar code symbologies are available, plus 2-dimensional and composite codes:
Aztec,Code16K,Code49,DataMatrix,DotCode,EAN-8,EAN-13,EAN.UCC128,GridMatrix,HIBC39,HIBC128,MaxiCode,MSI(modifiedPlessey),PDF417, MicroPDF417,Planet,Plessey,Postnet,QR-Code, RSS-14(variations)
Media Specifications
Paper Width
Max.
Min.
118mm
19mm
Label Length (Min.)6.35mm
Roll Diameter127mm
Core Diameter25.4 to 38.1mm (1"to 1.5")
Tablet Characteristics
Processor1.8 GHz Qualcomm SDM450 8-core
Operating SystemAndroid 8 (Oreo), upgradeable to Android P and Q
Memory2 GB RAM, 32 GB Flash
Display7-inch high definition (1280 x 720) bright color LCD with backlight, outdoor viewable, optically bonded to touch panel
User InterfaceRugged, multi-touch capacitive touch panel, Buttons for Barcode Triggering, Volume Up/Down, Power
AudioBuilt In Speaker
SensorsAmbient light sensor, proximity sensor, accelerometer
Interface Support IEEE 802.11 a/b/g/n/ac/d/e/h/i/k/r/u/w
Class 2 V4.2 Bluetooth (HFP, PBAP, A2DP, AVRCP, OPP profiles only)
NFC
VoIP Support
VPN Support: IPSec V4/L2TP, PTP
GPS Supported: GNSS receiver for BeiDou, GPS and GLONASS
Barcode Reader
BCRHoneywell 2D Imager
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] PC43K Kiosk
PC43KA003020000 PC43KIOSK, ICON300, WL 2/32 ROW, No PC $3,278.00 A
[B] Standard Take from Stock Labels
Direct Thermal Labels (1)
9-9651-010-1 L99X148DOC-C500 Label DT 99 X 149 mm C-Core 500 lab/roll Wound Out Permanent $38.50 C
9-9651-002-6 L102X102D0D-D625 Label DT 102 X 102 mm D-Core 625 lab/roll Wound In Permanent $44.00 C
9-9651-003-3 L56X25DOC-D2250 Label DT 56 X 25 mm D-Core 2250 lab/roll Permanent $23.10 C
9-9651-004-0 L61X50DOD-D1280 Label DT 61 X 50 mm D-Core 1280 lab/roll Permanent. Perf. $29.70 C
Credit Card Size (Ideal for Visitor Management Systems)
L85x55DOA-D1000 Label, Direct Thermal, 85x55mm, Permanent, Wound Out, 28mm Core, Roll 1000 $33.00 C
[C] Paper Rolls - Thermal
9-9114-506-3 PR114120DT/6 Paper Roll 114mm(w) x 120mm(d) with 38mmm core (D), Thermal (pk 6) $83.60 C
Standard Stock Labels
Custom Labels (Note UMD Corce Size Code = C or D)
Cleaning Products
