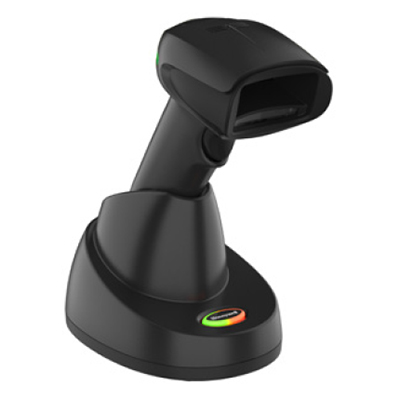

Honeywell - Xenon XP 1952g
Wireless Hand Held 2D Bar Code Reader


Designed for environments that demand high-accuracy scanning, whether at a distance, or for damaged barcodes, the Xenon XP 1952g scanner reduces strain on the user, decreasing the need to bend for barcodes on the bottom shelf or at the bottom of a basket. The Xenon XP 1952g is available in Black or Lyric White models to enable you to match the scanner to your environment, and an available vibration mode ensures your operator gets the scanner feedback, regardless of their surroundings. The Xenon XP 1952g is also available in a "battery Free" version, utilising a super-cap as an alternative power source.

The Xenon XP 1952g is engineered to withstand upto 50 drops at 1.8 m (6 ft) and upto 2,000 tumbles at 0.5 m (1.6 ft), with an Ingress Protection rating of IP52, the Xenon XP 1952g scanner delivers class-leading durability. This significantly reduces scanner downtime and service costs, leading to a longer lifecycle and a lower total cost of ownership.

Empower your operators to provide excellent service with the Honeywell Xenon Extreme Performance (XP) series. The Xenon XP 1952g scanner offers superior scan performance, easily capturing even the most difficult-to-read or damaged barcodes.


Features

  • Easy to pickup and use
  • Custom Sensor optimized for barcode scanning
  • Fast reading and decoding, even of damaged barcodes
  • Superior scanning performance, even on damaged and poor-quality barcodes
  • Multi-angle reading
  • Standard Range or High Density scan optics
  • Light Weight for comfort and ease of use
  • Optional disinfectant ready housing
  • "Battery-Free" version available, using a "supercap" power source
  • Bluetooth Class 2 wireless interface
  • Image capture capable
  • 3 year return to base warranty (battery 1 year)

Specifications

Scanner Presentation Base Desktop/Wall Mount Base
Mechanical
Dimensions 99mm L x 64mm W x 165mm D 132mm L x 101mm W x 81mm H 231mm L x 89mm W x 83mm H
Weight(Without cable) 270g (Battery Free: 180g) 179g 260g
Base Cable Options   1.5, 3, 4 or 5m
Environmental
Operating Temperature 0 to 50C 5 to 40C Charging
0 to 50C Non-Charging/Battery Free
Storage Temperature -40 to 70C -40 to 70C
Relative Humidity 0% to 95% non-condensing 0% to 95% non-condensing
Drop Designed to withstand 50 1.8 m drops to concrete :
Environmental Sealing IP52 IP41
Electrical
Battery 240 mAh Li-ion minimum or Supercap
Charging Power 2.5 W (0.5A @ 5 V)
Non-Charging Power 0.75 W (0.15A @ 5 V)
Expected Operation Battery: 14 hours
Supercap: 300-500 Scans
Expected Charge Time Battery: 4.5 hours
Supercap: 120 Seconds(USB), 30 Seconds (Wall Adaptor)
Optical
Optics 2D Imager
Motion Tolerance Up to 400 cm/s for 13 mil UPC at optimal focus
Scan Angles HD(High Density) Focus: 41.4 Horizontal; 32.2 Vertical
48 Horizontal; 30 Vertical
Print Contrast Ratio 20% (minimum)
Depth of field SR: 0 - 822mm; HD: 0 - 604mm
Dependent on barcode
Symbologies Decoded Reads standard 1D, stacked, 2D and postal symbologies; OCR font reading
Communications
Host System Interfaces : USB, Keyboard Wedge, RS232, IBM 46xx (RS485)
Bluetooth Radio : 2.4 to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v4.2; Class 2: 10 m line of sight

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Honeywell Xenon XP 1952g 2D Barcode Reader Kits with Battery (No Power supply required with USB charging)
1952GSR-2USB-5-R HONEYWELL XENON XP 1952G 2D-SR BT USB PRES/CRD BLK $979.00 A
1952GHD-2USB-5-R HONEYWELL XENON XP 1952G 2D-HD USB PRES/CRD BLK $2,464.00 A
[B] Honeywell Xenon XP 1952g 2D Barcode Reader Kits, Battery Free (No Power supply required with USB charging)
1952GSR-2USB-5BF-R HONEYWELL XENON 1952G-BF 2D-SR BT USB PRES/CRD BLK $2,222.00 A
1952GHD-2USB-5BF-R HONEYWELL XENON XP 1952G-BF 2D-HD USB PRES/CRD BLK $2,134.00 A
[C] Honeywell Xenon 1952g Disinfectant Ready 2D Barcode Reader Kits with Battery (No Power supply required with USB)
1952HSR-5USB-9-R HONEYWELL SCAN KIT XENON 1952H 2D-SR USB HEALTH $2,871.00 A
1952HHD-5USB-5-R HONEYWELL SCAN KIT XENON 1952H 2D-HD USB HEALTH $2,222.00 A
1952HHD-5USB-9-R HONEYWELL SCAN KIT XENON 1952H 2D-HD USB HEALTH $2,871.00 A
[D] Honeywell Xenon 195g2 Disinfectant Ready 2D Barcode Reader Kits, Battery Free (No Power supply required with USB)
1952HSR-5USB-9-R
1952HHD-5USB-9BF-R
[E] Interface Cables
CBL-500-150-S00 HONEYWELL CABLE USB-A 1.5M 5V STRAIGHT $44.00 A
CBL-500-300-S00 HONEYWELL CABLE 1200/1300/1900 USB A STR 3M BLK $44.00 A
CBL-500-500-C00 HONEYWELL CABLE 1200/1300/1900 USB A COILED 5M BLK $44.00 A
CBL-020-300-C00 HONEYWELL CABLE SCANNER RS232 5V 3M CLD BLK $44.00 A
CBL-503-300-C00
CBL-503-300-S00
[F] Accessories
46-00528 HONEYWELL PSU 5.2V 1A 1200/1470/1950/7120/9590 ETC $88.00 A
300001490
50129064-001 HONEYWELL WALL MOUNT BRACKET KIT 19XX $88.00 A
AP-010BT-07N
[G] Spare Parts
BAT-SCN05
SUPCAP-SCN05
Battery cannot be used in Battery Free Scanner. SuperCap cannot be used in a Battery Scanner
[H] Service Contracts
SVC1952-EXW4
SVC1952-EXW5
SVC1952-EXW1R
SVC1952-SG3N HONEYWELL EDGE SERVICE GOLD XENON 5D 3Y $187.00 V
SVC1952-SG5N HONEYWELL EDGE SERVICE GOLD 1952 5D 5Y $330.00 V
SVC1952-SG1R
SVCACC-SCN3 HONEYWELL EDGE SERVICE ADDON SCANNER ACCESSORY 3Y $33.00 V
SVCACC-SCN5 HONEYWELL EDGE SERVICE ADDON SCANNER ACCESSORY 5Y $44.00 V
SVCACC-SCN1 HONEYWELL EDGE SERVICE ADDON SCANNER ACCESSORY 1Y $11.00 V
[I] Flat Rate Honeywell Repair Service
HHSCAN3-REPAIR
