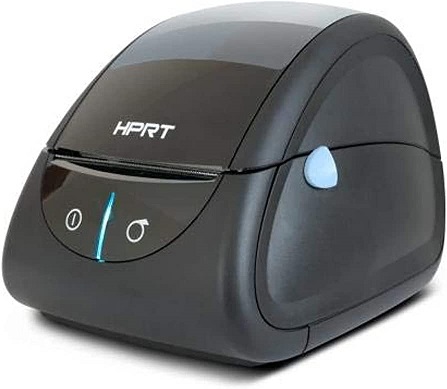

HPRT - LPQ80
Thermal Label Printer


The HPRT LPQ80 is a compact and fashionable desktop label printer that is ideal for your print on demand labels, whether it is a product pricing label, a shelf label or an address label. With a printable width of up to 80mm, using easily loaded fan-fold or roll-fed labels, in die-cut or continuous media, the LPQ80 is the perfect companion on any retail counter.

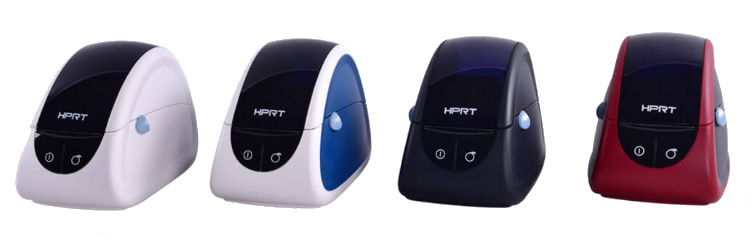

  • Available in full White and Black, as well as models with Blue or Red highlights
  • Easy media loading
  • Supports printing on an external paper source
  • User replaceable printhead
  • Supplied with BarTender Ultralite label printing software
  • 12 Months Return to Base Warranty

Specifications

Physical Characteristics
Dimensions150 (w) x 188 (l) x 134 (h)mm
Weight880g
Environmental Characteristics
Operating Temperature5C to 40C
Storage Temperature-20C to 50C
Operating Humidity30 to 85%, Non-condensing
Storage Humidity10 to 50%, Non-condensing
Printer Characteristics
Print Method203dpi (8 dost/mm)Direct Thermal Line
Copy capacityOne original
Print Speed120mm/s
Barcode Support1D: All commonly used symbologies2D: PDF417, Data matrix, Maxi-Code, QR-Code, Micro PDF417, Micro QR, Aztec
Memory2MB Ram, 2MB Flash
SensorsOut of paper detection, Gap detection, Notch detection, Black mark detection, TPH temperature detection
Control PanelTri-color status LED, Power and Feed button
Power
Power Input12VDC/2A with supplied adaptor
Media Specifications
TypeFan-fold or Roll, Die-cut or Continuous, Label or Ticket
Media Width1"(25mm) 3.35"(85mm)
Media Thickness0.003"(60um) 0.007"(180um)
Label Roll Max. Diameter90mm
Core Diameter0.5"(12.7mm),1"(25.4mm),1.5"(38.1mm)
Software
Printer LanguageTSPL
Label DesignSupplied with a complimentary copy of Bartender Ultralight
DriversWindows 2000,XP,Vista,8,10 By Seagull
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] LPQ80 Label Printer
LPQ80B
LPQ80R
[B] Printer Labels
