Intermec - EV15
Bar Code Reader - OEM Engine

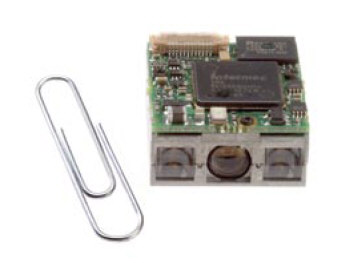

The EV15 is based on Intermecs bi-linear CMOS sensor using state-of-the art Active Pixel Sensor (APS) technology. This makes the EV15 ideal for OEM applications, where space is limited, for scanner integration in both portable and fixed devices.

Terminals, PDAs, lottery terminals, time and attendance terminals, ski-pass, automated sorting machines and tape libraries are examples of where the EV15 will be right at home in your OEM application.

This module concentrates the exceptional performance of the ScanPlus 1800 Vista into a compact industry-standard form factor.

Features

  • Small, high performance barcode scan engine
  • Supports all common 1D barcodes and PDF-417
  • Bright scan line
  • Depth of field upto 50 cm
  • Reliable solid state technology with low power consumption
  • Ideal for integrating into equipment requiring barcode capability
  • 12 month Warranty

Specifications

Mechanical
Dimensions 11.4mm (h) x 22.5mm (d) x 20.6mm (w)
Weight 12g
Environmental
Operating Temp. -30 to 50C
Storage Temp. -40 to 70C
Relative Humidity 5% to 95%(non-condensing)
Vibration 50G r.m.s.
Shock 2000G, 0.7ms, half sinus, 3 axes
Electrical
Voltage 3.1 to 3.6 V/DC
Operating Current 110mA (typical)
Standby Current <1uA
Optical
Scan Rate 200 scans/s (Undecoded)
500 scans/s (Decoded)
Optics APS CMOS bi-linear image sensor
Scan Angle 40 (Nominal)
Barcode Width Upto 18 cm
Print Contrast Ratio 25% (minimum)
Resolution From 4 mils (.1mm)
Depth of field 0 to 90 cm
Symbologies Decoded
UPC E&A, EAN, RSS, Code 11, Code 39, Interleaved 2 of 5, Matrix, Industrial & Standard 2 of 5, Code 128, UCC EAN 128, Codabar, Code 93/93i, MSI, Plessey, ISBN, ISBT, Telepen, PDF417
Communications
Protocol Undecoded: Industry Standard DPB
Decoded: RS232 TTL
Certifications
Regulatory Approvals UL recognised, VDE certified
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] EV15 OEM Scan Engine
3-131019-02 EV15 Barcode Scan Engine, Linear $231.00 C
[B] Accessories
Interface Cable (Ribbon)
2-2112-076-1 Ribbon Cable, FFC 0.5mm pitch 12 way - 76mm $0.99 U3
2-2112-150-8 Ribbon Cable, FFC 0.5mm pitch 12 way - 150mm $9.24 U3
PCB Connector
1-0330-012-0 Conn, Flexible Flat Cable (FCC) 12x0.5mm pitch $2.20 A
Hardware
5-0052-003-9 Screw, Skt Head Cap, M1.6x3 Black $4.73 A
[C] Support
Engineering support is available on this product including interfacing. Contact UMD for details.
