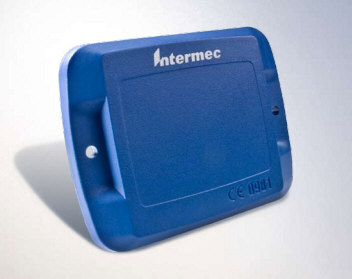

Intermec - IT67
Enterprise Lateral Transmitting UHF RFID Tag


Intermec’s rugged IT67 Enterprise LT Tag is the first in the industry, designed to provide both edge and normal performance for enhanced portal and forklift RFID applications. With a range of up to 26ft (7.92m) and an IP rating of IP67, the IT67 is suitable for harsh environments and meets global standards.

The IT67 tag can be attached using screws, rivets, double-sided adhesive strips or avariety of other methods.

Applications

  • Rugged encapsulation for harsh environments
  • Consistent UHF range performance
  • IP66 Classification
  • Delivers superior performance on a variety of materials
  • Reusable for lower cost per use
  • Suitable for Automotive containers, Large metalcontainers, Postal roll cages, Metal drums

Specifications

Physical Characteristics
Dimensions69(l) x 62(w) x 5.7(h) mm
Encapsulation MaterialABS/PC
MountingAdhesive
Screws/Rivets
Environmental Characteristics
Operating Temperature-40 - 66°C
Ingress ProtectionIP66
Communication Characteristics
Operating Frequency Range902 MHz - 928 MHz
Communication ProtocolEPCglobal UHF Class Gen 2/ISO 18000-6C
Read RangeUpto 7.5m Normal Orientation, Upto 4.5m Lateral Orientation (dependant on reader)
Data Characteristics
MemoryNXP-SL3S1002FTT
512-bit-on-chipusermemory
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Intermec IT67 Enterprise Lateral Transmitting (LT) UHF RFID Tag
IT67A0001
225-756-001 IT67/10 TAG, RFID, IT67, QTY 10 (Sample Pack - Qty 10) $125.40 C
225-757-001 IT67/250 TAG, RFID, IT67, QTY 250 (1145.19 per 250) $2,508.00 G
