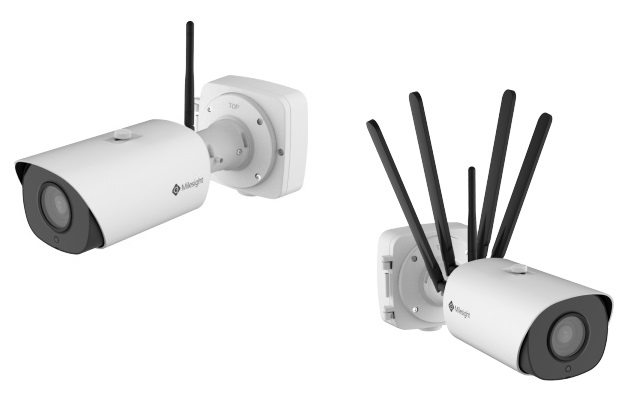

Milesight - C2966 Series
AIoT LoraWan Outdoor Bullet Camera Gateways


The Milesight C2966 Series LoraWan Outdoor Bullet Camera's with Gateway's provide a robust outdoor solution combining the professional security camera with a LoraWan gateway to provide a simple yet elegant solution to enable the inter-connection of a variety of data collection devices.

The 2MP AIoT 12X Pro Bullet Plus Network Camera applies Sonys high sensitivity 1/1.8" sensor, with a capacity approximately twice than that of the conventional ones, that is designed for capturing saturated and sharp images even in pitch dark environment. Coupled with the 3 in 1 Super WDR Pro, 100fps high frame rate and a 4K video viewing experience, this camera delivers ultra-high-definition images with no latency despite any high-speed movement.

More than just a network camera that can deliver video streams, the camera can communicate with and ingest data from IoT sensors, as well as visualise various data. Utilising With its AI deep learning capability, it can give real-time analyses and alerts via numerous alarm actions. An entirely new set of capabilities emerges with Milesight AIoT Camera, which uses AI as a brain and IoT as sensory organs.

The C2966 camera uses the latest Semtech LoRa Gateway Chip and a 64-bit quad-core CPU to support receiving data from up to 8 end-devices at the same time, handles more traffic with less power consumption, and has a line of sight of around 15km in open area, making it ideal for a variety of applications.

The built-in LoRaWAN Network Server allows packets to be transmitted locally between the gateway and network server, removing the need of a third-party network server and improving interoperability while also reducing data traffic. It also supports MQTT, HTTP, and HTTPS APIs for easy integration.

The Milesight C2966 LoraWan Outdoor Bullet Camera's are ideal for, but not limited to; road traffic monitoring, exhibitions, museums and venue access.

Features

  • 2Mpix IP Camera
  • 1/2.8" Progressive Scan CMOS Sensor
  • 5.3~64mm Motorised auto-focus
  • High Frame Rate @50FPS | IR180m
  • 0 Lux IR Range 180 m
  • 2-Way Audio
  • IOT LoRa WAN Gateway
  • WEB, CMS Software, Smartphone and NVR
  • PoE IEEE802.3at
  • AI Video Analytics
  • Weatherproof to IP67

Specifications

MS-C2966-X12ROPC MS-C2966-X12RGOPC
Physical Characteristics
Height 126 mm (Excluding Antennas)
Width 134 mm
Depth 320 mm
Mounting Wall/Ceiling Mount
Weight 1636g
Environmental Specifications
Operating Temperature -40C to 60C
Ingress Protection IP67
Over Voltage 4000V
Power
Power Input PoE-IN (802.3af), 12V DC
Power Consumption 16W Max (With continuous IR on)
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Lens 5.3~64mm Motorised auto-focus
Maximum Resolution 2 Megapixel (1920x1080)
Field of View H: 61~5; V: 36~2; D: 69~5
Iris Control Auto
Minimum Illumination Colour: 0.002Lux @ F1.2
Colour: 0.005Lux @ F1.6
Mono: 0 Lux with IR On
Infrared Light Upto 180m Illumination
Day/Night Day / Night / Auto / Customisable / Programmable
Streaming Rates Main: 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Compression H.265+ / H265 /H.264+ / H264 / MJPEG
Streaming Encoding 16 Kbps ~ 16 Mbps (CBR / VBR)
Communication Interfaces
LoRaWAN Antenna: 50 Ω SMA-Female
Channels: 8
Demodulation: 1MHz
Frequency Band: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923/AS923-2
Sensitivity: -140dBm Sensitivity @292bps
Output Power: 27dBm Max
Protocols: V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
Maximum Range: 15Km (Open Field)
Ethernet 1 RJ45 (PoE PD supported) 10/100/1000 Base-T (IEEE 802.3)
Serial 1 x RS-485
Optional Cellular - Supports 3G/4G/5G with Nano SIM in SD Card Slot
Audio
Alarm Interfaces 1 x Digital Input NC/NO ≥12V/DC
1 x Digital Output NC/NO 24V DC 1A
Audio 2-Way Audio Support
VoIP Supported
Compression G.711/AAC/G.722/G.726
Bit Rate 16-256Kbps
AI System Support
Image Improvements Super WDR PRO (140 dB), BLC, HLC, 2D DNR, 3D DNR, Defog Function, AWB, EIS, IP Address Filtering, AGC, Anti Flicker, Corridor Mode, Watermarking
Face Detection Real-Time Face Detection Support
People Counting People counting at entrances and exits. Supports up to 4 people counting regions
Trigger Events Motion Detection, Exceptions, Alarm Inputs
Event Action Upload Image to FTP, SMTP, MicroSD Card, Enable Alarm Output, SIP Phone, HTTP Notification
Intelligent Analysis Motion Detection, Line Crossing, Loitering Detection, Region Entry, Region Exit, Object Left, Object Removed
Remote Access Web Browser, Smartphone App and Milesight Central Management System Software
Interoperability ONVIF (G/Q/S/T Profile)

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Milesight C2966 Series LoraWan Outdoor Bullet Camera Gateways
MS-C2966-X12ROPC LoRaWAN Camera, 3-Axis Mount, Alarm and Audio I/O with integrated AI based Analysis (people counting, facial detection), 2MP 12x AF Lense, 64mm $627.00 A
MS-C2966-X12RGOPC LoRaWAN Camera, 3-Axis Mount, Alarm and Audio I/O with integrated AI based Analysis (people counting, facial detection), 8MP 4x AF Lense, 32mm $1,419.00 A
