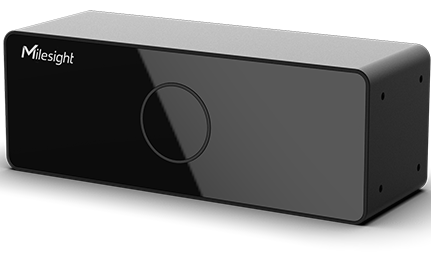

Milesight VS132 3D ToF People Counting Sensor


The Milesight VS132 ToF People Counting Sensor is an unparalleled anonymous sensor that provides actionable insights into people counting. Advanced Time of Flight (ToF) technology combined with LoRaWAN provides low power consumption from a convenient wireless deployment while offering anonymous protection. The VS132 is ideal for retail, offices, shopping centres, public transportation as well as customer flow analysis.

The 3D ToF People Counting Sensor collects depth maps rather than images to protect user privacy to provide an accuracy rate of 99.5%. Two way detection enables bi-directional counting from a single sensor that enhances more accurate and efficient information. It can even operate within completely dark environments and control other devices using a browser or mobile app. Flexible installation options support ceiling, embedded and wall to fit a diverse range of scenarios.

Compliance with GDPR guarantees 100% anonymous detection to protect against sending personal information. Smart U-turn technology filters the counting of people within a designated area: the sensor filters out redundant counting of people wandering the area to distinguish people who dont truly enter.


Features

  • Simplify privacy concerns without the use of image capturing software
  • Store a million data records locally
  • Adaptable for low light or night time environments
  • Web GUI configuration using Wi-Fi or Ethernet
  • Compliant with standard LoRaWAN gateways and network servers

Specifications

Physical Characteristics
Dimensions140 mm x 50 mm x 50 mm
Weight296g
InstallationCeiling Mounting, Wall Mounting, Embedded Mounting
ColourWhite, Black
Environmental Characteristics
Operating Temperature-10C to +60C
Storage Temperature-20C to +60C
Relative Humidity0 ~ 95% (non-condensing)
Power
Power Input2-pin 5.08mm Terminal Block
Power Supply1. 12 VDC, 2A by Terminal Block
2. 1 x 802.3 at PoE input
Power ConsumptionTypical 7.5 W, max 28 W
Sensor Characteristics
ToF FoV92 Horizontal, 67 Vertical
Measuring Accuracy>99.5%
Detection Range0.5m to 3m
Installation Height<= 3m
Wireless Characteristics
TechnologyLoRaWAN
FrequencyCN470/IN865/RU864/EU868/US915/AU915/KR920/AS923
Tx Power16 dBm (868) / 22 dBm (915) / 19 dBm (470)
Sensitivity-137dBm @300bps
ModeOTAA/ABP Class A


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Milesight VS132 LoRaWAN 3D ToF People Counting Sensor
VS132-915M
