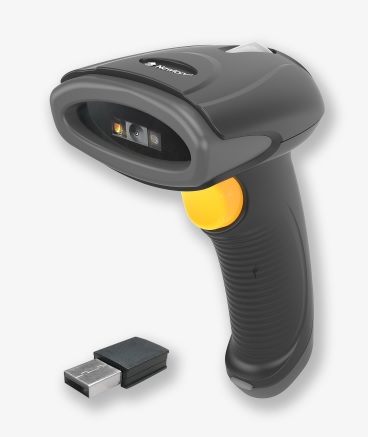

Newland HR2081-BT
Hand Held Wireless Bar Code Reader


The Newland HR2081-BT Barcode Reader has been designed to read barcodes printed and displayed on all of the types of mediums in a typical retail environment, from paper to plastic to LCD's. With its 640 x 480 pixel CMOS image sensor, the HR2081 is able to read all commonly used 1D and 2D barcodes.

Adopting the latest Bluetooth 5.0 technology, the HR2081 is able to maintain a reliable wireless connection to transmit data with communication distances up to 50m. Equipped with an outstanding CPU, this wireless handheld scanner can effortlessly capture high density, high-volume and distorted barcodes.

Features

  • Hand held 640x480 2D Imager
  • Outstanding Performance
  • 12 Hours of Continuous Use
  • Bluetooth 5.0
  • Durable Construction
  • Supports USB, Bluetooth and BLE Connection
  • 24 Months Warranty

Specifications

Mechanical
Dimensions 101mm L x 68mm W x 145mm H
Weight 167 g
Environmental
Operating Temp. -20 to 60 C
Storage Temp. -40 to 70 C
Relative Humidity 5% to 95% (non-condensing)
Drop 150cm (5ft) drops
Environmental Sealing IP42
Electrical
Battery 2200mAh LiIon
Charge Time Max. 5.5 hours
Operating Time 12 hours from full charge
Charge Input 5.0 VDC 10% (USB Port)
Optical
Pitch 60
Skew 60
Roll 0-360
Light Source White LED
Aimer Red LED (625nm)
Print Contrast Ratio 20% minimim reflective difference
Read Distance 30mm to 260mm Depending on barcode
Symbologies Decoded
1D Code-11, Code-128, Code-39, GS1-128(UCC/EAN-128), AIM-128, ISBT-128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-8, EAN-13, ISBN/ISSN, Interleaved 2 of 5, Febraban, Matrix 2 of 5, Industrial 25, ITF-6, ITF-14, Standard 25, China Post 25, MSI-Plessey, Plessey, GS1 Databar(RSS)
2D PDF417, Micro PDF 417, QR Code, Data Matrix, Micro QR Code Aztec, Data Matrix
Communications
USB With Supplied cable supports USB Keyboard, CDC(Virtual Com), HID POS, IBM SurePOS
Bluetooth 5.0 with BLE Support
Wireless Transmit Distance Upto 50m
Batch Memory 300Kb (Upto 15000 20 byte scans)

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Newland HR2081-BT
NLS-HR2081-BT-FS HR2081 Cordless 2D WIRELESS DIRECT BLUETOOTH CONNECTION INC USB DONGLE TYPE-B CHARGING CABLE FOLDABLE STAND BLACK $209.00 B
