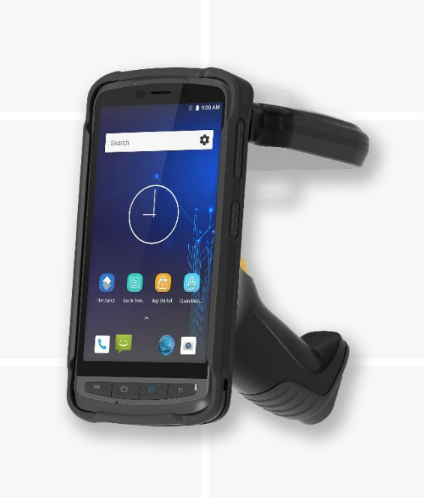

Newland - MT90 with RFID
Handheld UHF RFID Reader


The Newland MT90 with UHF Reader is an Android rugged mobile computer. It features a powerful processor, a 10 hour battery and superb UHF RFID read/write capability. The MT90 has been designed to for use in most environments where a rugged, lightweight and ergonomic design is required.

With the optional MT90 RFID Reader this unit provides an ideal terminal for today's requirements for any user transiting into the demanding and complex world of Retail, RFID inventory and asset management. The MT90 RFID is suitable for use in logistics, delivery, warehousing, retail, healthcare, manufacturing and meter reading, among others.

Features

  • Rugged Construction
  • High Performance UHF RFID Reader/Writer Option
  • Android 11
  • 5" Screen
  • 1.5m drop to concrete
  • 8MP Rear Camera
  • Dual SIM Support (Sim/UAM Micro SIM)
  • 12 Month Return to Base Warranty with extended Maintenance options

Specifications

Physical Characteristics
Length
Unit:
With RFID:

155mm
160mm
Width
Unit:
With RFID:

78mm
82mm
Depth
Unit:
With RFID:

20mm
165mm
Weight
Unit:
With RFID:

270g
330g
Environmental Specifications
Operating Temperature
Unit:
With RFID:

-40C to 70C
-20C to 50C
Storage Temperature
Unit:
With RFID:

-20C to 55C
-30C to 70C
Humidity 5 to 95% Non-Condensing
Drop Spec.
Unit:
With RFID:

1.5m
1.2m
Tumble Spec. Min. 250 0.5m tumbles
ESD 15 kV air discharge, 8 kV direct discharge
Ingress Protection IP65
Hardware
Processor 2.0 GHz Octa-core
Memory 4GB RAM, 64GB Flash
Expansion Micro SD card slot, up to 128 GB
Display 5 inch, 1280 x 720 resolution, with IPS Display Boost for Indoor/Outdoor Use
Touch Panel Capacitive Touch Panel with Tempered Glass
Camera 8MP, Rear Facing
Optional 2MP Front Facing
Buttons 4 front keys(Menu, Home, Scan/Function, Back), 1 power key, 2 side scan keys, Volume Up/Down, 1 User Definable
Battery 4500mAh LiPo (Optional 6500mAh)
Battery Life 10 Hours, Normal Use
Charging USB Micro-B, Cradle Connector
Audio Speaker, Headphone Jack (Hidden with RFID)
Sensors Light sensor, Proximity Sensor
Reader Options
Barcode 1D/2D Barcode Reader
UHF RFID Option SLR1200 module based on Impinj Indy R2000
EPC C1 GEN2 / ISO18000-6C. 920-925 MHz
Circular polarization (3dBi)
Up to 12 m (Indoor), Up to 6 m (Outdoor)
NFC ISO 14443A/B, MIFARE, FeliCa, NFC Forum Tags, ISO15693
Communication
Bluetooth Bluetooth 5.0
GPS GPS
WiFi IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band
WWAN 2G: 850/900/1800/1900 MHz
3G: B1,B2,B5,B8
4G: FTD-LTE:B1,B2,B3,B5,B7,B8,B20,B28; TTD-LTE: B34, B38, B39, B40,B41
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Newland MT90
NLS-MT9055-GL-2WE MT90 2D AREA IMAGER ANDROID 9?OCTA-CORES 464) GL IP65 4G/BT/WIFI/GPS/NFC (TYPE-C)GMS PSU RUBBER BOOT $1,089.00 B
[B] RFID Module for Newland MT90
NLS-UR9050-01 MT90-UHF UHF RFID HANDHELD READER 902~928MHZ (SLED ONLY EXCLUSIVE OF MT90) $1,089.00 B
