RAM - Ball Mounting
Stock Lines


RAM stands for Round-A-Mount. RAM is the revolutionary universal ball and socket mounting SYSTEM that allows you to mount practically anything anywhere. RAM's family consist of more than 900 interchangeable accessories to provide solutions to your most challenging mounting problems. The unique design of the RAM Mount provides easy installation, mobility, strength, versatility, vibration protection and durability, all at a low cost.

RAM is backed by NPIs renowned Lifetime Warranty, making it the mounting SYSTEM of choice. To provide light weight strength and corrosion resistance, RAM is made of marine grade aluminium with a powder coated finish, stainless steel hardware and rubber balls.

Recognized and accepted by the U.S. Patent Office, RAM is the only universal ball-and-socket SYSTEM that holds tremendous amounts of weight in high vibration applications for military, commercial and private use.

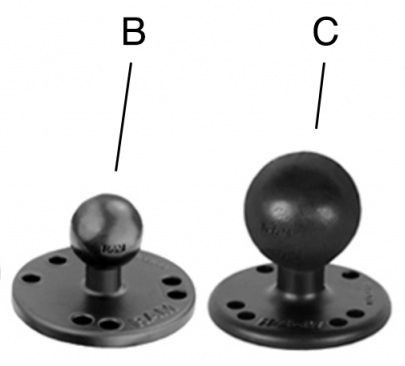

RAM mount products stocked at UMD are of the RAM-B and RAM-C series
    • RAM B Series 25.4mm (1) size ball diameter
      • RAM C Series 38.1mm (1.5) size ball diameter

For detail please see UMD Application Note: AN-204 Selection Guide RAM Mount.

To provide greatest flexibility, UMD only stocks RAM Mount components, and not specific kits.

To create a RAM Mount solution simply select an "Arm" and a ball component (i.e any combination of "Base" or "Mount.") for each end of the arm.

The following list represents standard UMD stock lines, other RAM Mounts, can be supplied on an indent basis.

Please refer to RAM Mount web site for full details and complete product range.

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] RAM "B" Series 25.4mm Ball (1")
Bases

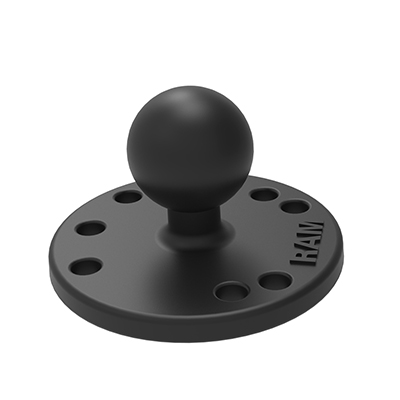

RAM-B-202 25mm (1) Small Ball and Base $16.50 G1
Drawing (Dim in inchces)

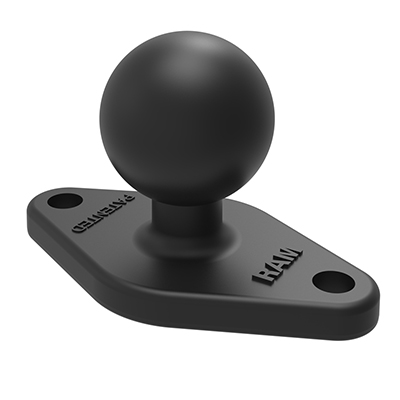

RAM-B-238 25.4mm (1) Ball with Diamond Plate $16.50 G1

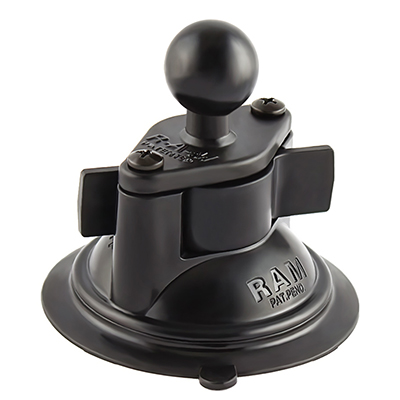

RAM-B-224-1U Locking B Suction Metal Plate $30.80 G1

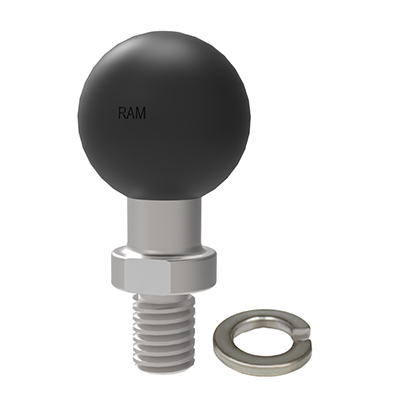

RAM-B-236U 25.4mm (1) Ball with 0.38 Male Thread $16.50 G1

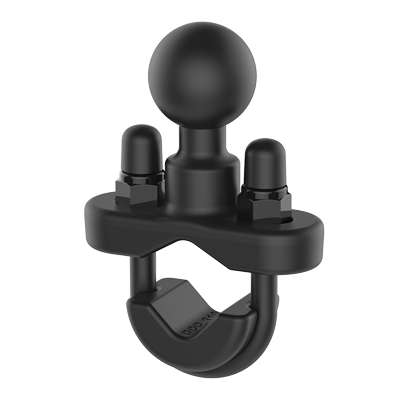

RAM-B-231U 25.4mm (1) Ball with Ssteel U-bolt $25.30 G1

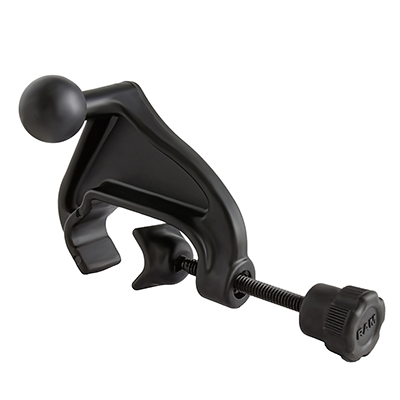

RAM-B-121B Ram C Clamp for Yoke mount $45.10 G1

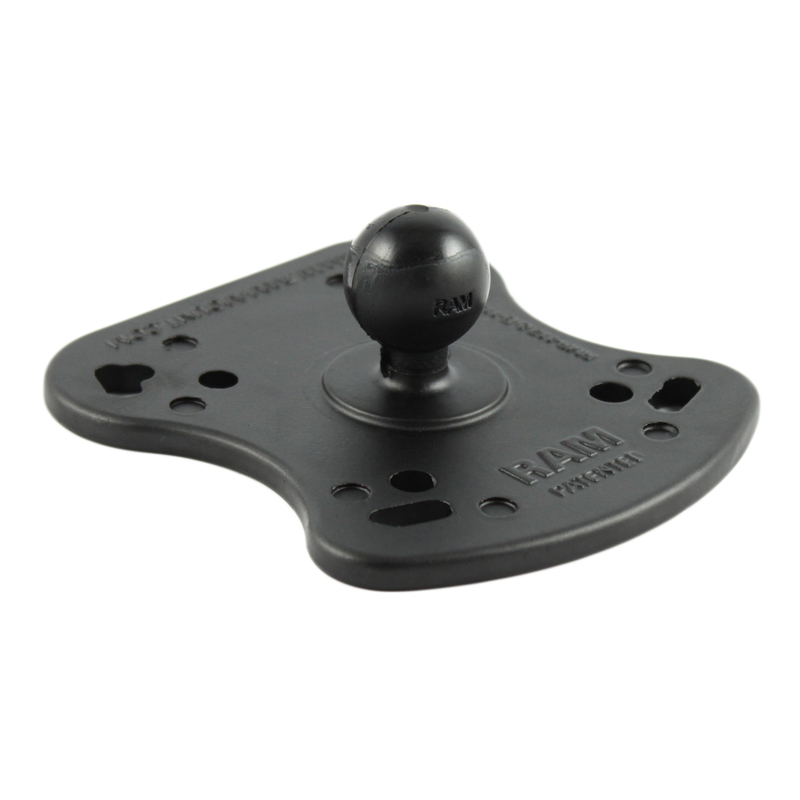

RAM-B-107BU RAM Clover Shaped Base $31.90 G1
ARMS

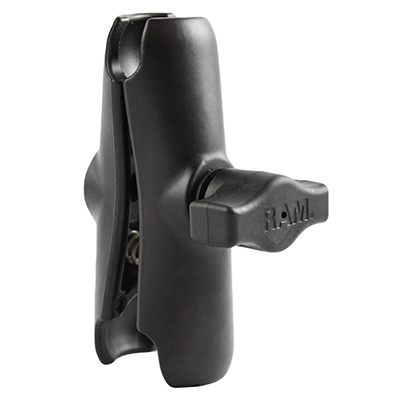

RAM-B-201 Standard Double Clamp B Size $27.50 G1

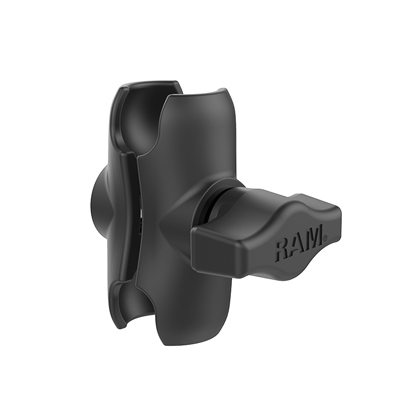

RAM-B-201-A Short Double Clamp B Size $26.40 G1

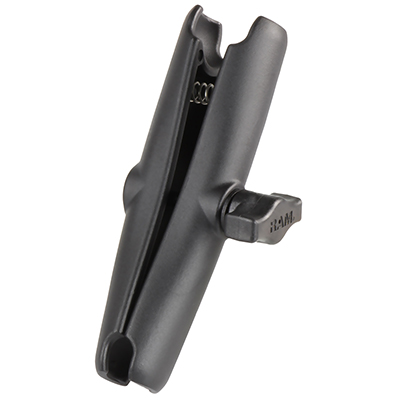

RAM-B-201-C Long Double Clamp for B Size $40.70 G1
Mounts

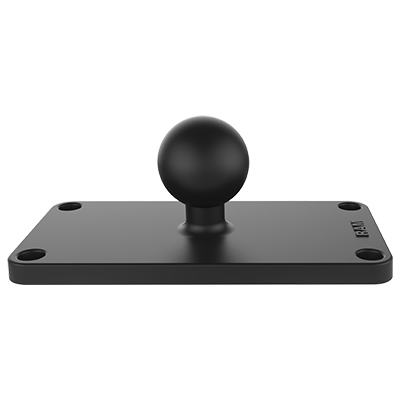

RAM-B-202U-24 25mm Ball rect plate cnr holes $45.10 G1
RAM-B-107BU RAM Clover Shaped Base $31.90 G1
RAM-B-121B Ram C Clamp for Yoke mount $45.10 G1

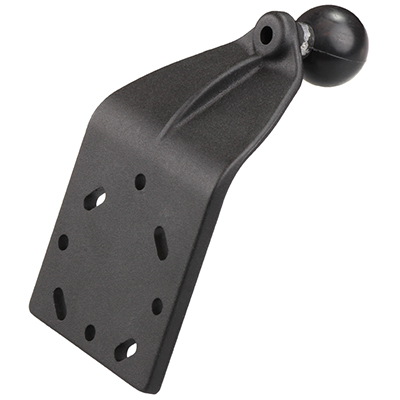

RAM-B-125BU Extension Cradle Plate B Ball $23.10 G1

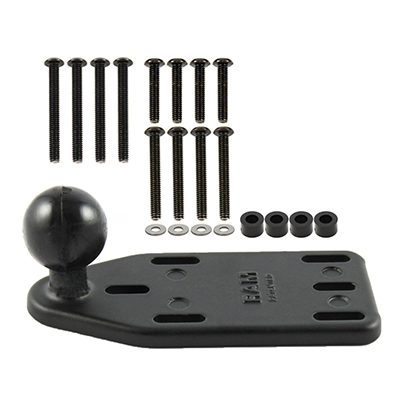

RAM-B-346U Motorbike Resvr cover 25mmBall $40.70 G1

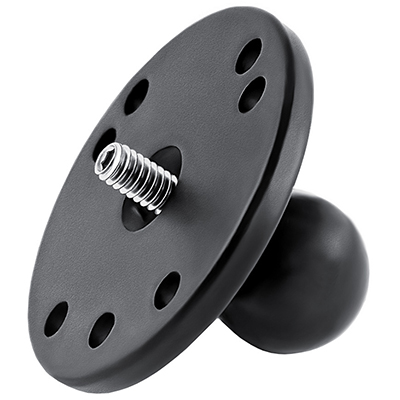

RAM-B-202A Round 63.5mm (2.5) Plate Camera Thread $23.10 G1

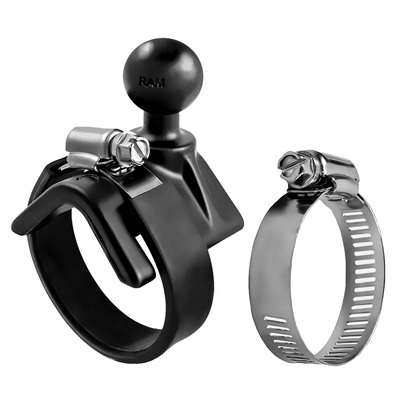

RAM-B-108BU V-base with 25.4mm (1) ball and straps $33.00 G1
Vehicle Mounts
RAM-VP-TTM12U Tele-Pole 12 Inch Long Tube $63.80 G1
UMD Custom Mounts
4-0150-010-2 IA33E Antenna Plastic Mounting Plate $44.00 U
[B] RAM "C" Series 38mm Ball (1.5")
Bases
RAM-201MU Double Socket Arm Metal Knob $56.10 G1
Except this is an arm

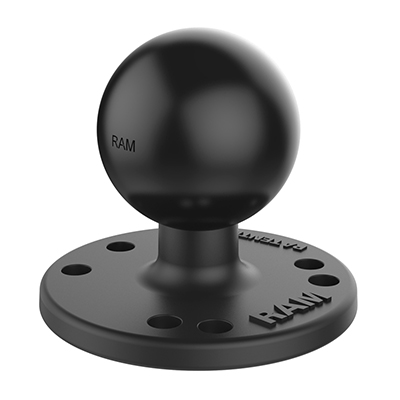

RAM-202 38mm Ball with Round Base $27.50 G1
ARMS

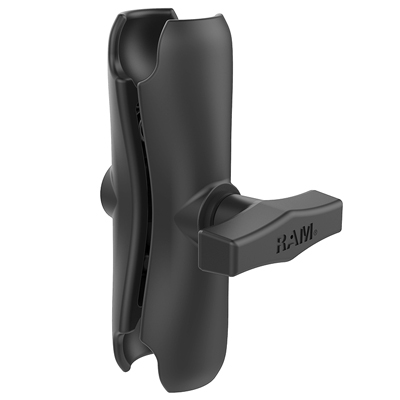

RAM-201 Clamp RAM Standard Balls $41.80 G1

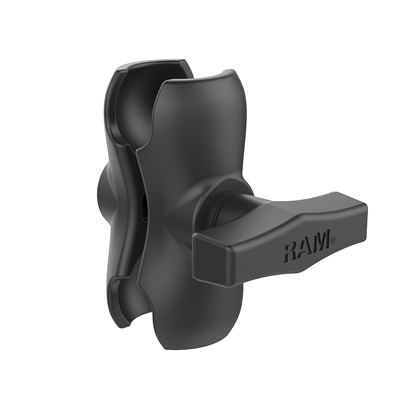

RAM-201U-B Double Socket Short B Size Arm $34.10 G1

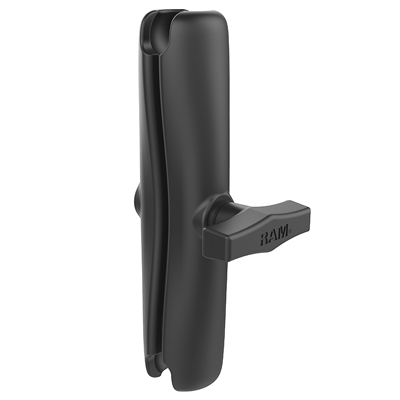

RAM-201U-D Long Clamp RAM Standard Balls $66.00 G1
Mounts

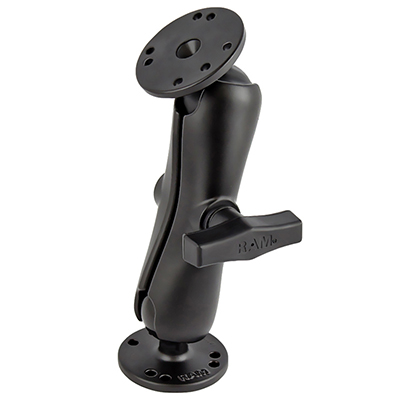

RAM-101

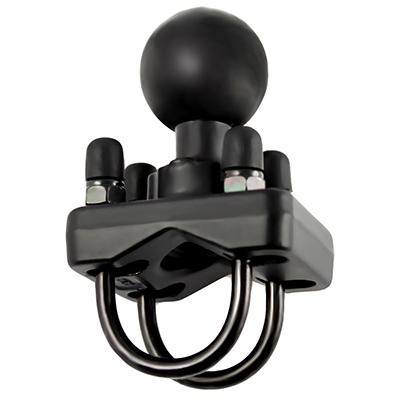

RAM-235U 38mm (1.5) Ball with Double U-Bolt $42.90 G1

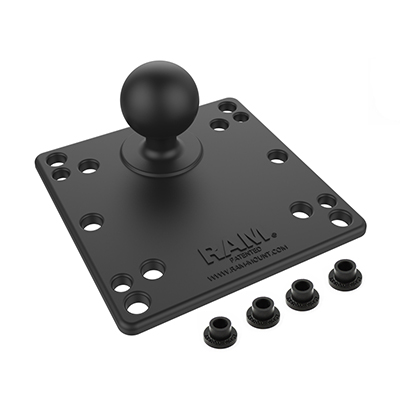

RAM-246U Square Alum Plate 38mm (1.5) Ball $37.40 G1

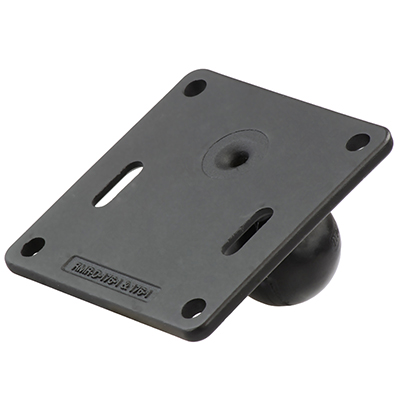

RAM-2461U RAM 90mm VESA plate std ball. $31.90 G1
[C] RAM Vehicle Mount Hardware
Welded Support
RAM-VBD-122 Vehicle Mnt Welded Supp Post $104.50 G1
Tele-Pole (Insert)
RAM-VP-TTM12U Tele-Pole 12 Inch Long Tube $63.80 G1
Arm
RAM-VB-109-2U Long Single Socket Swing Arm $69.30 G1
[D] Accessories

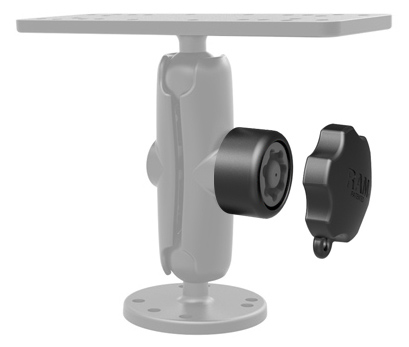

RAP-S-KNOB3U UNPKD RAM SECURITY KNOB B SIZE MIX KEYS $14.30 G1

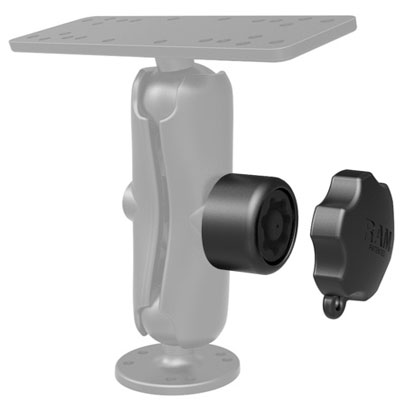

RAP-S-KNOB5U UNPKD RAM SECURITY KNOB C SIZE MIX KEYS $18.70 G1
See www.rammount.com/ for more comprehensive options
Contact UMD regarding additional mounting options sales@umd.com.au
