Senor

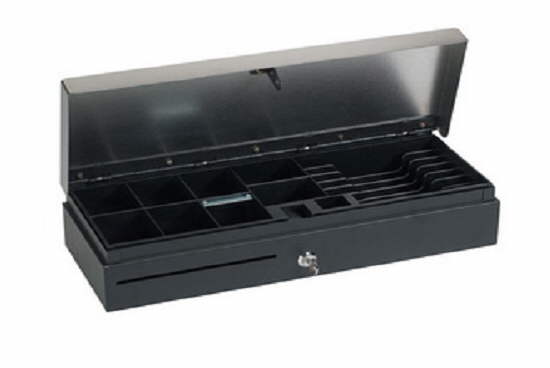

Fliptop Cash Drawer


This drawer is a Flip-Top style computer cash drawer with standard solenoid type interface with a modular RJ connector.

Supplied in a matt black finish with solid metal construction and an extra-strong hinge system. The notes are held vertically it the 5 note compartments and 8 easy scoop coin boxes ensure there is plenty of storage space. The addition of an 18cm wide media slot allows the easy insertion of cheques or credit slips without the need to open the drawer.

This small footprint drawer is ideally suited to POS environments where bench space is at a premium.

Features

  • Small footprint (only 460 x 170 mm)
  • 8 coin compartments
  • 5 note compartments
  • 1 media slot
  • Solid metal construction
  • Standard solenoid (Base) interface with RJ connector
  • 12 Months Warranty

Specifications

Physical Characteristics
Dimensions460 mm (w) x 170 mm (d) x 100 mm (h)
ColourMatt Black
Weight9 kg
ConstructionMetal
Note Compartments5 - Adjustable Vertical
Coin Compartments8 - Fixed
Drawer Key LockYes
Emergency ReleaseNo
Media Slots1 - 180mm wide
BellNo
Electrical Characteristics
Solenoid Rating24 V DC
Soleniod Resistance24 ohm
Status SwitchYes
Interface
StandardRJ-12 Modular - Direct Control
OptionalModel 316 Serial Trigger
Model 317 USB Trigger
Accessories
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Cash Drawer with Base Type Interface
KC-4617V24 KC-4617 Senor Cash Drawer 460x170x100mm, RJ12, 24V. Stainless steel Front, 5 notes/7 coins, 1 media slot $143.00 H
CDB-4617M9
[B] External Interfaces
9-0316-110-5 M316P-D9 Cash Drawer Trigger Module with RS232 D9 and Plug Pack $132.00 U3
M317B200 M317 Cash Drawer Trigger Module with USB Interface - Separate Cable $132.00 U3
[C] Accessories
KC4617INS KC-4617-INS Spare insert (Black) for KC4617 $55.00 H
KC4617LID KC-4617-LID Lockable Insert Lid for KC4617 $55.00 H
