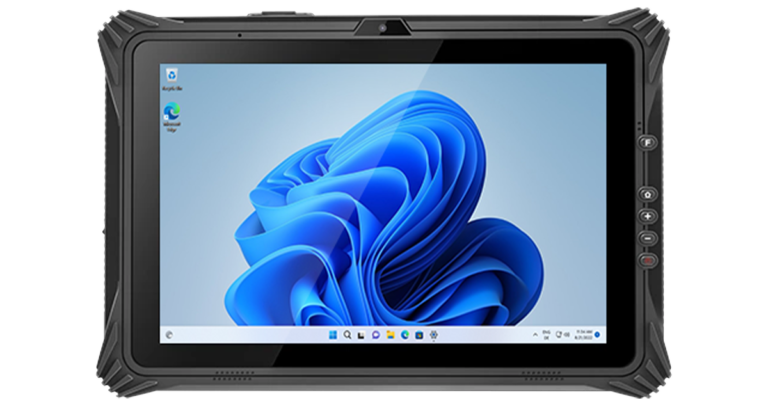

Senor - HPC X12W
Rugged Tablet PC


The Senor HPC X12W is a rugged tablet PC designed for use in environments where traditional tablets would be prone to damage.

It is built to endure harsh conditions, including drops and exposure to dust and water. Scan barcodes and QR codes efficiently with its equipped 2D scanner. It has a built-in battery with a second hot-swappable to switch batteries without powering off the device to ensure continuous operation.

The Senor HPC X12W runs on Windows 11 IoT or Pro operating systems and is powered by an Intel Core i5-1235U processor. The tablet features a 12.2 inch IPS LCD screen and capacitive touch technology to allow for precise touch input. This ensures smooth performance even in demanding applications.

Features

  • Weather and Environmental Resistance
  • Hot swap Dual battery
  • Superior Performance Barcode Reader and Handstrap
  • Windows 11
  • 12.2 1920 x 1200 Display
  • Optional Comprehensive Charging Dock
Specifications
Physical Characteristics
Dimensions 340 (W) x 231 (H) x 26 (D) mm
Weight 1.5kg
Environmental Characteristics
Operating Temperature -20 to +60C
Storage Temperature -30 to +70C
Ingress Protection IP65
Drop Resistance 1.22 M MIL-STD-810G certified
System Configuration
CPU Intel Core i5-1235U
RAM 8GB RAM
Storage 1 x removable M.2 NVMe 2280 SSD
Display 12.2 IPS LCD / 1920 x 1200 pixels
Communication Interface
WLAN Wi-Fi 802.11 a/b/g/n/ac/ax
Bluetooth Bluetooth 5.1
USB 1 x USB 3.0 Type-A, 1 x USB 3.0 Type-C
NFC NFC supported
Camera 8 Megapixel Rear Camera, 2.0 Megapixel Front Camera
Electrical Specifications
Battery 1 x built-in battery: 700 mAh | 1 x removable battery: 6300 mAh
Software
Operating System Windows 11 IoT Enterprise / Windows 11 Pro
Dock Options
Dock Ports 2 x USB, 1 x Serial, 1 x LAN, supports tablet & battery charging


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Senor HPCX12W Windows Tablet (does not include OS)
HPCX12W HPC-X12W Senor HPC-X12W, 12.2 LCD, 1920 x 1200, 650 cd/m 10-point PCT multi-touch, IP65 rated whole unit Intel Core i5-1235U (10 cores) 1.3 GHz up to 4.4 GHz 16 GB DDR4 RAM, removable M.2 NVMe 2280 SSD 4G LTE + Wi-Fi 802.11ax + BT5.1 + GPS $4,840.00 A
[B] Operating System
FZP-00025 WIN-11-IoT-E-OLC Windows 11 IoT Entry OLC Enterprise for J617/J621 (pre-installed with Senor drivers) 64 bit $264.00 A
WIN11PRO WIN-11-Pro Windows 11 Pro EOM (pre-installed with Senor drivers) 64 bit $440.00 A
[C] Options
HPCX12W-2D HPC-X12W (Honeywell N3680) 1D/2D Imager $352.00 A
[D] Peripherals
HPCX12W-CHGR HPC X12W Fast Charger & Dock with 1xD9, 1x RJ45, 2 x USB $264.00 A
[E] Replacement Battery
HPCX12W-BATT HPC-X12W Battery, 6300 mAh (upto 4.5hrs operation) $264.00 A
