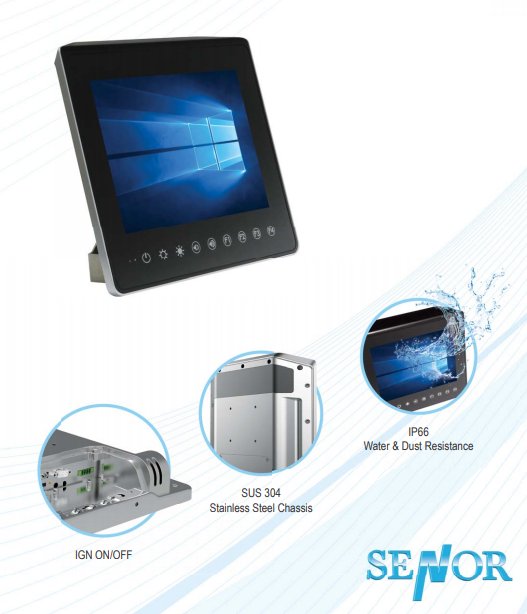

Senor iV12
Vehicle Mount Computer


The Senor iV12 is a fully functional Windows computer designed for the inherent challenges of operating in an environment that is always on the move and potentially exposed to all types of weather!

Designed with a fully flat toughened 12" Touchscreen and with a solid stainless steel chassis, the iV12 can work in a wide range of temperatures, out in the rain, dust and vibration all day without issues!

Features:

  • Small & rugged vehicle mount computer
  • Only 214 x 268 x 43 mm in size
  • 6H degree hardness anti-glare Capacitive touch screen
  • Intel Quad-core processor
  • Windows 10
  • Optional WiFi and Bluetooth
  • 12 month warranty with Extended Maintenance Options

Specifications

Physical Characteristics
Width320 mm
Height312 mm
Depth60mm
Weight5Kg
ChassisSUS 304 Stainless Steel
MountingVESA 75
Environmental Characteristics
Operating Temperature-20C to +55C
Storage Temperature-20C to +60C
Shock and Vibration ProtectionClass 5M3 (5 hours of noise type vibrations, 3.6 g rms and 30 g peak value)
Rain & Dust ResistanceIP66 compliant
Software
Operating SystemWindows 7 / 10 / 10-IoT
Hardware
ProcessorIntel E3845 Quad Core 1.91 GHz
RAM Memory4 GB DDR3L 1333 SDRAM, Upgradable to 8GB
Storage2.5 industrial grade SSD
Power
Input10-36 V/DC
ProtectionIsolation voltage 1500 VDC, input polarity protection
Display
Size (pixels)1024 (w) x 768 (h) (WXGA)
Size (diagonal)307 mm (12.1")
Display OptionsAuto brightness 250 to 700 cd/m2 (optional 1000 cd/m2)
User Interface
KeypadPower, Bright Up/Down, Volume Up/Down, F1 - F4
TouchScreenAnti-glare projected capacitive touch, 6H degree hardness anti-glare glass
Communications
Standard1x DB9 (RS232/422/485 select by BIOS)
1x USB 2.0 Host port Type A
1x USB 3.0 Host port Type A
2x RJ45 Gigabit LAN ports
1 x Display port
Optional1x Additional DB9 (RS232/422/485)
F5, F6 Buttons
Wireless LAN 802.11 b/g/n/ac (2x2 MIMO)
Bluetooth 4.1
1 x isolated CANbus 2.0B
NFC 14443A Reader
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Senor iV12 Vehicle Computer (Operating System Ordered Separately)
IV12PCT-128 iV12 Senor Vehicl Mount Terminal, 12.1 TFT LED, Projected capacitive Touch Screen, 1024x768, 250 to 700 cd/m2 brightness, Intel Quad Core Atam E3845 1.9GHz, 4GB RANM, 128GB SSD (no o/s) $5,005.00 A
[B] Options and Upgrades
WiFi
NFC14443
CANBus
Ext-Antenna
SSDUPGRADE240
SSDUPGRADE480
SSDUPGRADE960
RAMUPGRADE
[C] Operating System
WIN7PRO WIN 7 PRO Windows 7 Professional (pre-intalled with Senor drivers) 32bit/64bit $385.00 A
WIN10PRO WIN-10-PRO Windows 10 Pro OEM $440.00 A
S-OSFFAA01800 WIN-10-IoT-V Windows 10 Enterpise IoT Value (pre-installed with Senor drivers for rSPOS970/9220) /64 bit $176.00 A
