Senor - KC-3540
Cash Drawer

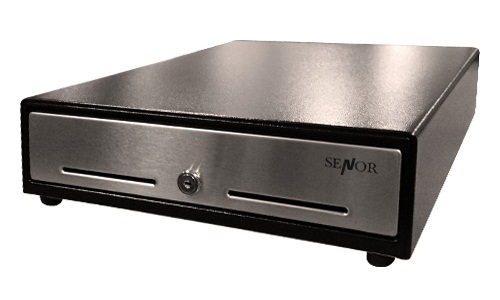

The KC-3540 is a Space Saver computer cash drawer with a standard solenoid interface with modular RJ connector.

It is supplied in a charcol finish with solid metal construction. The small footprint is achieved by providing four slim horizontal note compartments , with 8 coin compartments and is idealy suited to POS installations where bench space is at a premium.

Features

  • Small footprint (only 350 x 400 mm)
  • 8 coin compartments (2x4)
  • 4 note compartments
  • Solid metal construction
  • Standard solenoid (Base) interface with RJ connector
  • 3 way lock (locked, unlocked, open)
  • 12 Months Warranty

Specifications

Physical Characteristics
Dimensions350 mm (w) x 400 mm (d) x 90 mm (h)
ColoursBlack
Weight6.0 kg
ConstructionMetal
Note Compartments4 - Fixed
Coin Compartments8 - Fixed (2 rows of 4)
Drawer LockYes - 3 Position
Emergency ReleaseNo
Media SlotYes
BellNo
Electrical Characteristics
Solenoid Rating24 V DC
Soleniod Resistance35 ohm
Status SwitchNo
Interface
StandardRJ-12 Modular - Direct Control
Optional External TriggersModel 316 Serial Trigger
Model 317 USB Trigger
Model 319 Ethernet Trigger
Accessories
Inserts Yes
Lockable Lids No
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Senor KC-3540 24V Cash Drawer with Base Type Interface
KC-3540 KC-3540V24 Senor Cash Drawer 350x400x90mm, RJ12, 24V. Stainless steel Front, 4 notes/8 coins, dual media slots, metal note gripper $187.00 G
[B] External Interfaces
9-0316-110-5 M316P-D9 Cash Drawer Trigger Module with RS232 D9 and Plug Pack $132.00 U3
M317B200 M317 Cash Drawer Trigger Module with USB Interface - Separate Cable $132.00 U3
M319A1000 M319A-EXT UMD External Cash Drawer Trigger Module with Ethernet Interface, (inc Power Supply) $357.50 U3
