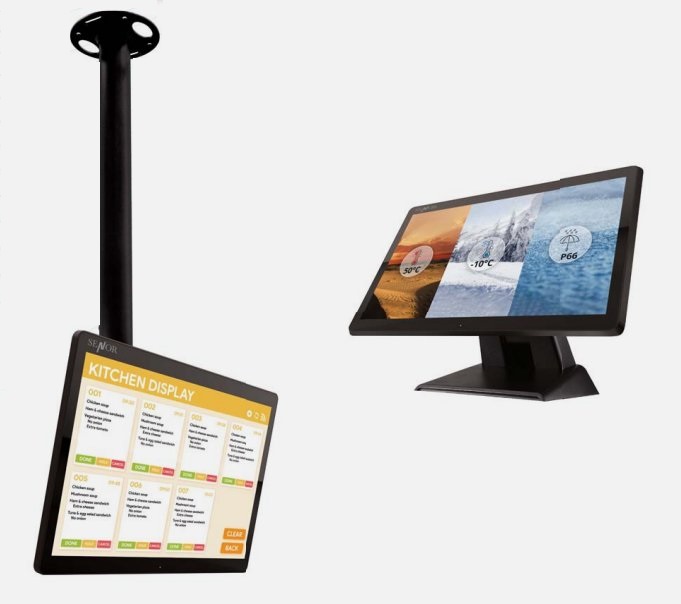

SENOR - KDS 21 Series
Touchscreen System


The SENOR KDS 21 Series is a robust POS touch screen with an integrated computer, designed to meet the demands of harsh environments and be suitable for use in a wide range of applications.

An IP66 rating makes the KDS series ideal for wet environments such as bars and can easily handle kitchens that have a significant amount of oil, steam and grease. It is completely dust tight and can also be subjected to rain and still remains reliable after exposure.

The KDS 21 is made with a full aluminium casing with a nanocoated exterior, preventing bacteria from staying on the unit, resulting in a healthier environment.

Ideal application industries: Restaurants, bars, supermarkets, hospitality, convivence stores, manufacturing, industrial environments.

Features

  • VESA Mountable
  • Aluminium Die-Cast Housing
  • Concealed I/P Ports
  • Internal PSU
  • Easy access USB Port
  • 12 Months Return to Base Warranty
  • Extended warranty and on-site maintenance available
Specifications
Model KDS C3822 KDS X3220
Physical Characteristics
Width 519 mm
Height 322 mm
Depth 46 mm
Weight 8.0Kg
Chassis Die-cast Aluminium
Mounting VESA 100x100mm Pattern
Environmental Characteristics
Operating Temperature 0 to 40C
Storage Temperature -20 to 60C
Operating Humidity 10 to 90% (Non-Condensing)
Storage Humidity 10 to 90% (Non-Condensing)
Ingress Protection IP66
Electrical
Power Source 100 ~240 V/AC
PSU Output +19.0 V/DC, 5A, 65W (Max)
System Configuration
CPU Intel Celeron 3865U 1.8 GHz Intel Core i3-7020U 2.3 GHz
RAM 1 x DDR4 SODIMM RAM (up to 16 GB
Storage 1 x removable SATAIII M.2 2280 SSD 1 x PCIe Gen3x4 M.2 SSD
Display 21.5 TFT LCD, 1920 x 1080 pixels
Brightness 250 cd/m2
Touch Panel Projected capacitive touch (multi-touch)
I.O Interface
USB Ports 3 x USB 2.0, 1 x USB 3.0
Serial Ports 3 x RJ50
Network Port 1 x RJ45 10/100/1000 Mbps
Cash Drawer Port 1 x RJ12 (supports both 12 V & 24 V)
Video-Out Ports 1 x HDMI
Audio 2 x 2W Speakers
Software
Operating System Windows 10 IoT / Windows 10 Pro / Windows 11 Pro
Options
WLANIntegrated Wi-Fi 802.11 b/g/n/ac
Magnetic Card ReaderSingle or Dual Head, Triple Track, USB Interface
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] KDS C38
KDSC38PCT KDS-C38 21.5TFT LED PCT Touch Screen, whole unit IP66, 1929x1080 resolution, 300cd/m2 Brightness, Intel Dual Core Celeron 3865U 1.8GHz, 4GB RAM, 128 GB SSD $3,520.00 A
[B] KDS X3220
KDSX3220PCT KDS-X3220 21.5TFT LED PCT Touch Screen, whole unit IP66, 1929x1080 resolution, 300cd/m2 Brightness, Intel Dual Core Celeron i3-7020U 2.3GHz, 4GB RAM, 128 GB SSD $4,015.00 A
[C] Options
MK-BK00AWFA3 Integrated 802.a/b/g/n/ac 2T2R Wireless LAN + BT with Internal Antenna $143.00 A
WBT-1372 3-track magnetic stripe card reader $209.00 A
SSDUPGRADE
RAMUPGRADE
[D] Operating System
S-OSFFAA01700 WIN-10-IoT-V Windows 10 Enterpise IoT Value (pre-installed with Senor drivers for X370/X3220) /64 bit $264.00 A
WIN10PRO WIN-10-PRO Windows 10 Pro OEM $440.00 A
