Senor - Max Mount
VESA Mount


The Senor Max Mount provides an all-in-one pole mount solution for POS peripheral devices. With 3 mount positions on the pole for upto 5 devices, the Max Mount can be adapted to almost any requirement.

The topmost or peak position can be fitted with either Vacuum Fluorescent Customer Display or a VESA mount bracket that is usually used for a customer facing monitor.

The upper position usually mounts the main operator display monitor or computer VESA bracket. This can optionally include a long left arm for vertically mounting receipt printer.

The lower mount position is appropriate to mount a presentation scanner bracket or keyboard shelf bracket centrally on the pole, or alternatively a left or right extending arm with a small shelf usually used for a horizontally mounted receipt printer.

All cables are easily routed through appropriately positioned openings in the main pole for a tidy and professional look.

  • VESA Mounting Interface Hardware (VESA Mount)
  • Supports both 75mm and 100mm mount options
  • Solid construction
  • Modular components
  • 50mm Diameter Pole
  • Black finish
Part Number: 661-PIPE

Max Mount Pole
This is the core component of the Max Mount System

Installation requires a 50mm hole through a solid desk of no less than 32mm thicness

Includes pipe cap if top mounting is not used
Part Number: 661-100

Top Mount VESA Bracket
Tilt Adjustable
Weight Capacity: 12 kgs
Monitor Mounting Holes: VESA 75x75 and 100x100mm
Part Number: 661-100VFD

Top Mount Customer Display Bracket
Part Number: 661-200

VESA Mounting Pole LCD Mount, Tilt Adjustable
Weight Capacity: 12 kgs
Monitor Mounting Holes: VESA 75x75 and 100x100mm
Part Number: 661-200PRINT

VESA Mounting Pole LCD Mount, Tilt Adjustable
Weight Capacity: 12 kgs
Monitor Mounting Holes: VESA 75x75 and 100x100mm

Left Side Vertical Mount Printer Bracket
Weight Capacity: 12 kgs
Part Number: 661-300

Scanner Mount Bracket
Weight Capacity: 12 kgs
Part Number: 661-300PL

Horizontal Printer Holder (Left)

Weight Capacity: 12 kgs

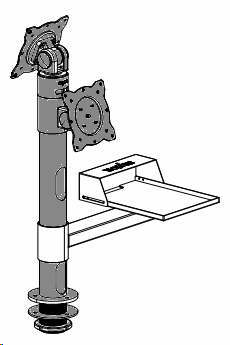

Part Number: 661-300PR

Horizontal Printer Holder (Right)

Weight Capacity: 12 kgs
Part Number: 661-499

Keyboard Shelf Holder

Weight Capacity: 12 kgs
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Max Mount Pole
S-PUOPVS000A0 661-Pipe Max Mount, Pole 610 h x 105 d $88.00 E
[B] Mounting Brackets
PU-66B400 GPU-66B400 Main Screen Bracket, Adjustable screen tilt & swivel 90 degrees $55.00 E
PU-61B100 GPU-61B100 2nd Screen Bracket, Adjustable screen tilt & swivel $55.00 E
PU-61B100V GPU-61B100V VFD Customer Display cap, Adjustable screen tilt & swivel $55.00 E
PU-61B200 GPU-61B200 Main Screen Bracket, Adjustable screen tilt & swivel $55.00 E
PU-61B200P 61B-200P Main Screen + Vertical Printer Bracket, Adjustable Screen Tilt & Swivel $66.00 E
PU-61B300 GPU-61B300 Scanner mount Bracket, Adjustable screen tilt & swivel $33.00 E
PU-61B300PL GPU-61B300PL Horizontal Printer holder (Left) Adjustable swivel $55.00 E
PU-61B300PR GPU-61B300PR Horizontal Printer holder (Right) Adjustable swivel $55.00 E
PU-61B499 GPU-61B499 Keyboard Shelf Holder, Adjustable Swivel $33.00 E
