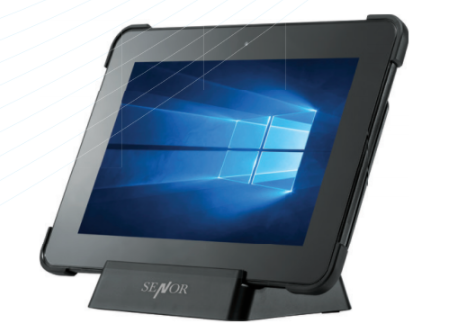

Senor Nano PAD
POS Tablet PC


The Senor Nano PAD Tablet PC is a lightweight 10" tablet PC that has been purposefully designed, developed and built for mobile Point Of Service (POS) applications such as Point of Sale, field service and sales.

Its sleek design and features makes the Nano PAD suitable for any size or type of businesses.

Providing businesses the flexibility to complete transactions directly with customers, the Nano PAD delivers convenience and versatility, giving a positive effect to customer satisfaction, customer loyalty and helps boost sales as an efficient system in place.

The Nano PAD offers a blend of performance, integrated features and mobility. Every Senor Nano PAD Tablet PC comes out of the box ready to work. Weighing only 1Kg the Nano PAD helps every user to work faster, smarter and more effectively, providing the capabilities, applications, and ergonomic ease-of-use that mobile workers need to be more productive in today’s de-centralized work environments.

Features

  • Space Saving
  • Optimised Charging & Docking Solutions (with lots of I/O ports)
  • Designed for Windows 10 IoT
  • Intel Intel Atom x5-Z8350 Processor
  • Barcode and NFC (Mifare) Reader Options
  • Smart Dock Option
  • 12 Month warranty
tr> tr>
Specifications
Physical Characteristics
Width 282 mm
Height 198 mm
Depth 18 mm
Weight 1Kg
Environmental Characteristics
Operating Temperature 5 to 40°C
Storage Temperature -20 to 60°C
Operating Humidity 40 to 90% (Non-Condensing)
Storage Humidity 10 to 90% (Non-Condensing)
System Specifications
Processor Intel Atom x5-Z8350, 1.44 GHz Turbo Boost up to 1.92 GHz
System Memory 4GB RAM (Factory fitted)
Video Out Connector Micro HDMI
Storage 64GB eMMC
1 x micro SD card slot (max. 64 GB)
Audio 1 x Line out
Display Specifications
Size 10.1"
Resolution 1280 x 800 pixels
Electrical Specifications
Battery Lithium Ion 9000mAh
External Power 5V, 0.4A
Wireless Specifications
Standard WiFi: 802.11b/g/n
Bluetooth: Bluetooth 4.0
User Interface
Touch Screen Projective Capacitive 10-Point-Touch
Additional Interfaces
Standard 1x USB 3.0, 1x micro USB Ports
Docking Connector
Video Out(VGA)
|MicroSD Card Slot
Audio Out
Camera 5.0 Megapixel Rear Camera, 1.2 Megapixel Camera
Software
Operating System Windows IoT(32/64-bit), Android 5.1
Dock (included with Tablet)
Dock Ports Power, 1x Serial, Ethernet, 3x USB 2.0
Smart Dock (Option)
Dock Ports Power, 1x Serial, Ethernet, 3x USB 2.0, 1x 24V Cash Drawer
Options
Factory Fit 4G, 1D or 2D Barcode Reader, Mifare NFC Reader, 2" Thermal Printer (In Smart Dock)
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Senor PicoPAD8 Windows 10 IoT Tablet
NANOPAD10-A0001
NANOPAD10-A2M01
[B] Accessories
USB Cables
2-6260-020-8 CA6260-2 USB A to A Cable - 2m $5.50 3
2-6260-030-4 CA6260-3 USB A to A Cable - 3m $11.00 3
Ethernet Cables
2-6073-020-1 CA6073-2 Modular Patch RJ45 - 2m (Blue) $3.30 3
2-6073-030-3 CA6073-3 Modular Patch RJ45 - 3 (Blue) $4.40 3
2-6073-050-1 CA6073-5 Modular Patch RJ45 - 5m (Blue) $6.60 3
