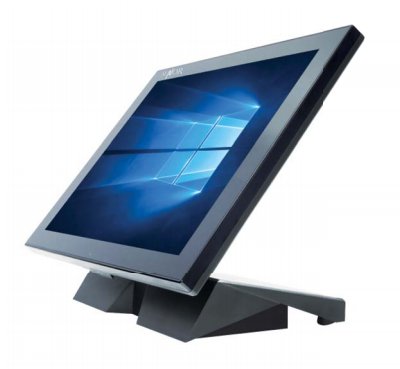

SENOR - V-POS Series
Touchscreen System


The SENOR V-POS Series is a robust POS touch screen with an integrated computer, designed to be suitable for use in a wide range of applications.

Senor's V-POS series feature a brand new concept with an ultra-narrow bezel-less screen and sleek exterior design, with interchangeable frame and casing to match the retailer’s style. The V-POS Series are an energy-efficient solution with low power consumption on a high-performing platform. The CPU consumes less power, generates less heat and helps to keep our environment green.

Features

  • Sleek design for retail and hospitality
  • Bezel-less PCT touch screen with Hardened Glass Screen
  • Interchangeable frame and casing to match the retailer’s style
  • Projected capacitive touch (P-CAP)
  • 90 Degree Tilt Adjustment
  • 36 Months Return to Base Warranty
  • Extended warranty and on-site maintenance available
Specifications
Physical Characteristics
Model V5-J1900 V5-i3 V6-i5 V6-i7
Width 366 mm
Height 290 mm
Depth 193 mm
Weight 7.5Kg
Chassis Die-cast Aluminium
Mounting Integrated Stand
Environmental Characteristics
Operating Temperature 0 to 40°C
Storage Temperature -20 to 60°C
Operating Humidity 0 to 80% (Non-Condensing)
Storage Humidity 10 to 90% (Non-Condensing)
IP RatingIP54
Electrical
Power Source External 100 ~240 V/AC
Power Adaptor Output +12.0 V/DC, 5A +12.0 V/DC, 6A
System Configuration
CPU Intel Quad Core Celeron J1900 2.0 GHz, up to 2.42 GHz Intel Dual Core i3-6100U 2.3 GHz Inte Core i5-6500TE 2.3GHz Intel Core i7-6700TE 2.4GHz, Turbo upto 3.4GHz GHz
RAM 4 GB DDR3L RAM (upto 8GB) 4 GB DDR4L RAM upto 32GB)
Storage 128 GB M.2 SATA SSD 128 GB Half Slim SATA SSD 128 GB M.2 SATA SSD (Supports RAID 0/1/5/10)
Display 1024 x 768 pixels
Brightness 300 cd/m2350 cd/m2
Touch Panel Projected capacitive multi-touch
Integrated Ports 2x DB9 Serial
1x Drawer Kick-S
4x USB
1x VGA
1x RJ45 LAN
Mic/Audio
1x DB9 Serial
2x RJ45-S
1x Drawer Kick Serial
4x USB
1x VGA
1x RJ45 LAN
Mic/Audio
Type A(Standard): 1x DB9 Serial, 1x Drawer Kick Serial, 6x USB, 1x HDMI, 1x RJ45 LAN, Mic/Audio
Type B:2x DB9-S, 1x Drawer Kick Serial, 6x USB, 2x RJ45 LAN, Mic/Audio
Type C:1x DB9-S, 1x RJ45 Serial, 6x USB, 1x HDMI, 1x RJ45 LAN, Mic/Audio
Type D:2x DB9-S, 1x RJ45 Serial, 6x USB, 2x RJ45 LAN, Mic/Audio
Options
OptionsWi-Fi 802.11 b/g/n/ac & Bluetooth, 3T MCR, LF RFID Reader, HF RFID Reader, HF RFID Reader/Writer, Rear Mount Customer Display - 10"/15"/15"Touch
Software
Operating SystemPOSReady 7 / Windows 7 Pro / 10 Enterprise IoT / 10 Pro
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] v5POS
V5J19VAPCT
V5X35VAPCT V5X35 Touch Screen POS System: 15 LED, 1024x768, 350 cd/m2, Intel Dual Core i3-6100U 2.3GH, 4GB RAM, 60GB Half Slim SSD $2,640.00 S1
[B] V6X55VAPCT
V6X75VACPT
[C] Options
MK-BKV5AWF00 Integrated 802.a/b/g/n/ac 2T2R Wireless LAN + BT with Internal Antenna $154.00 S3
SSDUPGRADE SSD Upgrade to from 128GB $187.00 A
RAMUPGRADE RAM Upgrade 4GB $187.00 A
[D] Operating System
POSREADY7 WIN POS Ready 7 Windows POSReady 7 OEM (pre-intalled with Senor drivers) 32bit/64bit $297.00 C
WIN7PRO WIN 7 PRO Windows 7 Professional (pre-intalled with Senor drivers) 32bit/64bit $385.00 C
S-OSFFAA01300 WIN-10-IoT-E Windows 10 Enterprise IoT Entry (Pre-installed with Senor Drivers) 32/64 bit $99.00 C
S-OSFFAA01200 WIN-10-IoT-V Windows 10 Enterpise IoT Value (pre-installed with Senor drivers) 32/64 bit $176.00 C
WIN10PRO WIN-10-PRO Windows 10 Pro OEM $440.00 C
