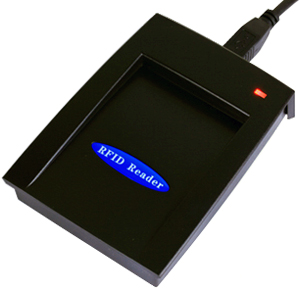

SL500F-USB
HF RFID Reader


The SL500F-USB is a High Frequency (HF) RFID desktop proximity reader/writer based on the NXP RFID technology which supports a combination of ISO14443A/B and ISO15693 protocols.

A free SDK is available which includes Demo software API, USB drivers and sample source code in C#, VC, BC, PB and Delphi.

Features

  • Frequency: 13.56MHz
  • ISO14443A/B and ISO15693 protocols supported
  • Integrated antenna, LED and Buzzer
  • Working current less than 150mA @5.0V
  • Operating distance of up to 60mm, dependent on tag

Specifications

  Physical Characteristics
Height 26 mm
Width 81 mm
Length 110 mm
Weight 100g
  Environmental Specifications
Operating Temperature -20°C to 50°C
Storage Temperature -50°C to 60°C
Humidity 5 to 95% Non-Condensing
  Power
Power Input USB 5V
Power Consumption 150mA
  Reader
Frequency 13.56MHz
Antenna Internal Antenna
Protocols Supported ISO14443A/B, ISO15693
Read Distance Upto 60mm, dependant on tag
  Interface
Communication USB (Serial Port Profile)
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] SL500F-USB Mifare HF RFID Reader
SL500F-USB SL500F RFID Desktop Mount Reader - Mifare & ISO15693 - USB $363.00 A
[B] Mifare HF 13.56 RFID Tags
NFC Stickers
9-9780-053-0 6E3E29 NFC Label, Paper, NTAG213, Round 29mm $0.88 A
9-9780-054-4 6E3E40 NFC Label, Paper, NTAG213, Round 40mm $0.88 A
HF Hard Tags
9-9860-090-9 RFT6008H-MF1 RFID Contact Sticker OM (Mifare 1K) $8.14 C
9-9840-011-0 RFT4001H-NM1 RFID HF Metal-Mount 34mm Disk with Hole Tag MIFARE 1K S50 $10.01 A4
